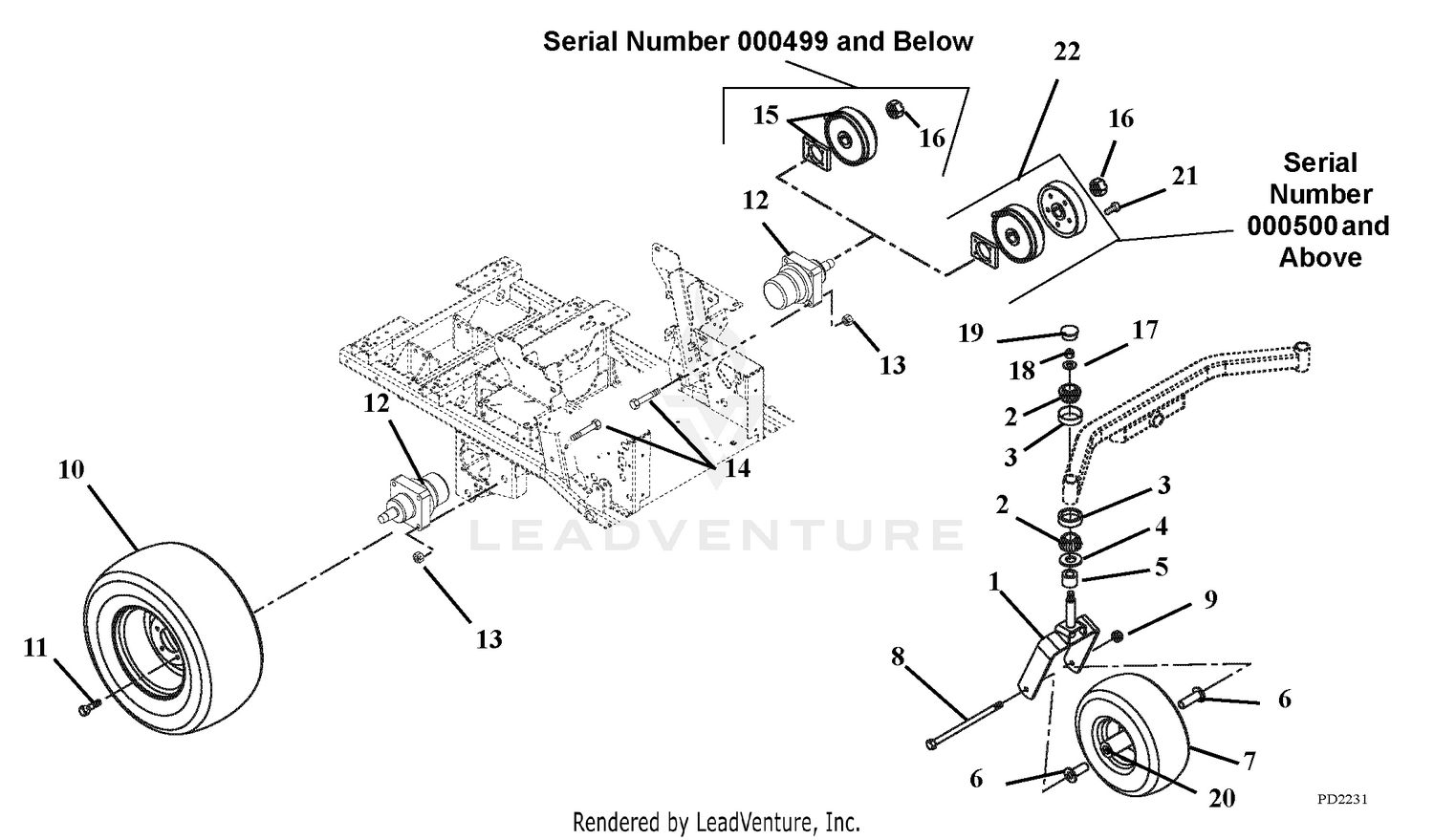

| Ref | Part Number | Description |
|---|
| 1 |
59208500 |
KIT, FRT FORK(4898) SERVICE This part replaces 00489853. Price: $142.95 |
| 2 |
05406900 |
BRG-CONE 1.0X.58 This part replaces 69000300. Price: $17.95 |
| 3 |
05407000 |
BRG-CUP1.980X.420 Price: $16.45 |
| 4 |
00531400 |
BEARING SEAL 1.5 X 2 X .18 Price: $9.45 |
| 5 |
00531500 |
SPACER 1.005X1.5075X.375 Price: $7.45 |
| 6 |
09231800 |
SPACER - WHEEL Price: $43.95 |
| 7 |
59219000 |
KIT, 15" PNEUMATIC TIRE This part replaces 07147800. Price: $173.45 |
| 8 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 9 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC This part replaces 06536300. Price: $3.95 |
| 10 |
59210100 |
KIT, TIRE/WHEEL W/LUGS,24"X12" This part replaces 07157500. Price: $307.95 |
| 11 |
07000143 |
BLT-LUG .50-20X1.38 YWZC This part replaces 07067700. Price: $3.45 |
| 13 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 14 |
07067200 |
BOLT, WHEEL MOTOR 1/2-13X2.75 Price: $15.95 |
| 17 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
| 18 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
| 19 |
20655400 |
CAP,DUST Price: $9.45 |
| 20 |
05435700 |
BRG, 25MM ID X 52MM OD X 15MM Price: $21.95 |
| 07101040 |
TIRE/WHEEL |
ASSM, 24X12-12 This part replaces 07158100. Price: $263.95 07101040 |
