| Ref | Part Number | Description |
|---|
| 1 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 2 |
323-5 |
SCREW-HH Price: $0.41 |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 6 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 7 |
323-4 |
SCREW-HH Price: $1.02 |
| 8 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 9 |
33115-030 |
SCREW-HH Price: $0.68 |
| 10 |
33115-100 |
SCREW-HH This part replaces 48-7840. Price: $1.57 |
| 11 |
32128-37 |
NUT-HF Price: $3.63 |
| 12 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 13 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 15 |
33114-016 |
SCREW-HH Price: $0.27 |
| 16 |
33114-025 |
SCREW-HH Price: $0.70 |
| 17 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 18 |
86-2990 |
MOUNT-CABLE, THROTTLE Price: $22.81 |
| 19 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 20 |
48-7570 |
SCREW-HH Price: $8.48 |
| 21 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 22 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 23 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 24 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 25 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 26 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 29 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 30 |
33004-00 |
NUT-HF Price: $0.34 |
| 31 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 32 |
323-20 |
SCREW-HH Price: $1.28 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
32128-19 |
NUT-HF Price: $0.99 |
| 36 |
32128-20 |
NUT-HF Price: $0.99 |
| 37 |
33114-016 |
SCREW-HH Price: $0.27 |
| 38 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 39 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 40 |
69-9760 |
COVERPLATE Price: $5.38 |
| 41 |
322-9 |
SCREW-HH Price: $3.09 |
| 42 |
48-7810 |
SCREW Price: $7.98 |
| 43 |
33115-025 |
SCREW-HH Price: $0.61 |
| 44 |
33113-012 |
SCREW-HH Price: $0.71 |
| 45 |
94-2814 |
EXHAUST COUPLER KIT Price: $148.22 |
| 46 |
62-9510 |
WASHER-LEVER, BRAKE Price: $4.56 |
| 47 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 48 |
33114-030 |
SCREW-HH Price: $0.50 |
| 49 |
48-7880 |
NUT-HEX Price: $0.25 |

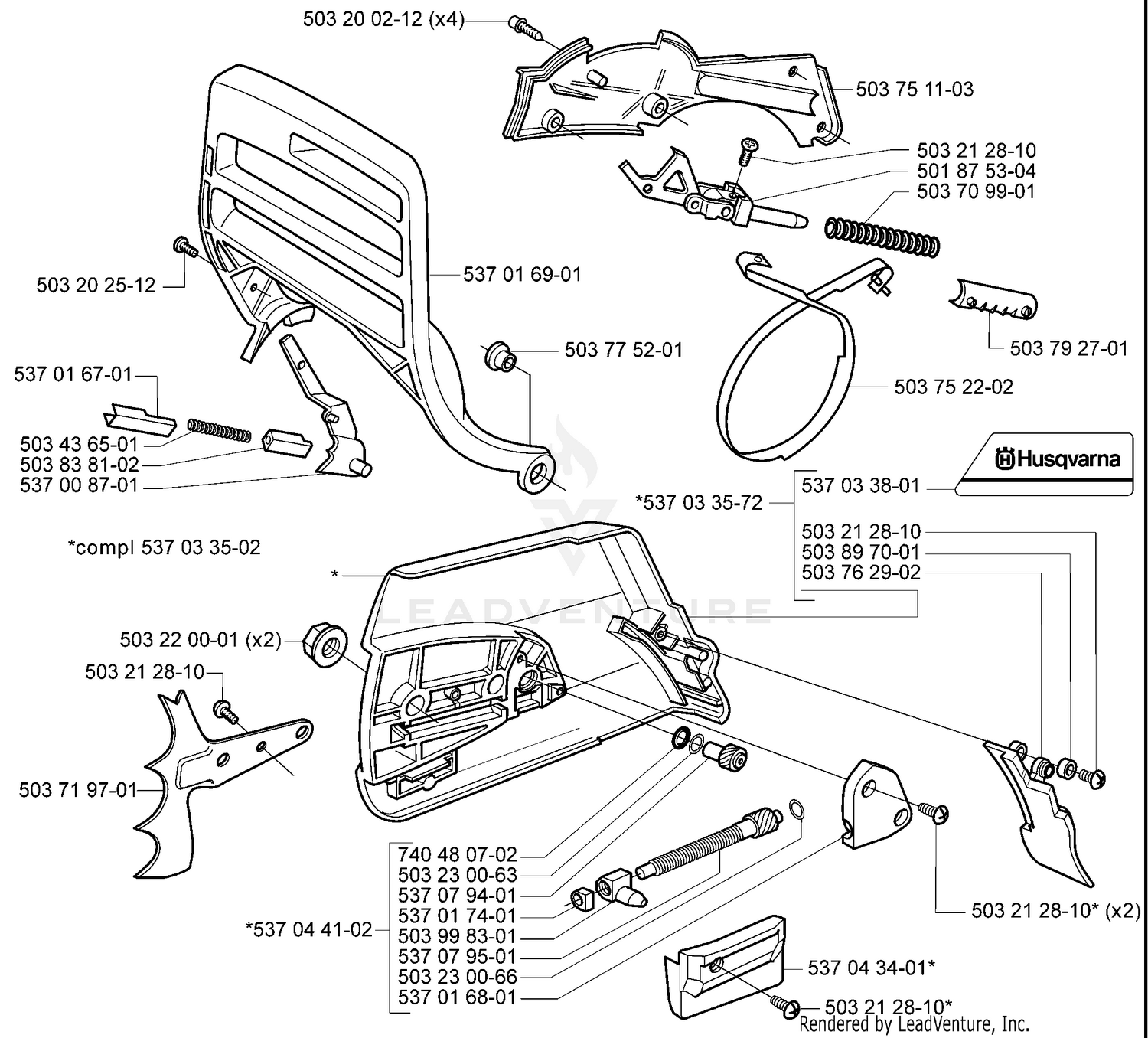

| 501875304 |
501875304 |
KNEE JOINT Price: $19.99 |
| 503200212 |
503200712 |
SCREW This part replaces 503200212. Price: $4.99 |
| 503202512 |
503202512 |
SCREW Price: $4.99 |
| 503212810 |
503212810 |
SCREW Price: $2.99 |
| 503220001 |
503220001 |
NUT M8 FLANGE Price: $2.99 |
| 503230063 |
503230063 |
WASHER Price: $3.99 |
| 503230066 |
503230066 |
WASHER Price: $2.99 |
| 503436501 |
503436501 |
LOCK SPRING Price: $3.99 |
| 503709901 |
503709902 |
BRAKE SPRING This part replaces 503709901. Price: $5.99 |
| 503719701 |
503719701 |
SPIKE OUTER Price: $14.99 |
| 503751103 |
503751103 |
COVER Price: $6.99 |
| 503752202 |
503752202 |
BRAKE BAND Price: $9.99 |
| 503762902 |
503762902 |
PROTECTOR Price: $9.99 |
| 503775201 |
503775201 |
BUSHING Price: $7.99 |
| 503792701 |
503792702 |
SUPPORT This part replaces 503792701. Price: $4.99 |
| 503838102 |
503838102 |
CATCH Price: $5.99 |
| 503897001 |
503897001 |
WASHER Price: $4.99 |
| 503998301 |
503998301 |
PAWL Price: $7.99 |
| 537008701 |
537008701 |
BRAKE LEVER Price: $17.99 |
| 537016701 |
537016701 |
PROTECTOR Price: $3.99 |
| 537016801 |
537016801 |
COVER Price: $5.99 |
| 537016901 |
537016901 |
HAND GUARD Price: $17.99 |
| 537017401 |
537017401 |
SLEEVE Price: $4.99 |
| 537033572 |
537033572 |
CLUTCH COVER Price: $69.99 |
| 537033801 |
537033803 |
DECAL This part replaces 537033801. Price: $4.99 |
| 537043401 |
537043401 |
CHAIN GUIDE Price: $6.99 |
| 537044102 |
537044102 |
KIT-CHAIN TENSIONER Price: $39.99 |
| 537079401 |
537079402 |
WORM WHEEL This part replaces 537079401. Price: $9.99 |
| 537079501 |
537079502 |
WORM SCREW / ADJUSTER This part replaces 537079501. Price: $17.99 |
| 740480702 |
740480702 |
O-RING Price: $3.99 |
