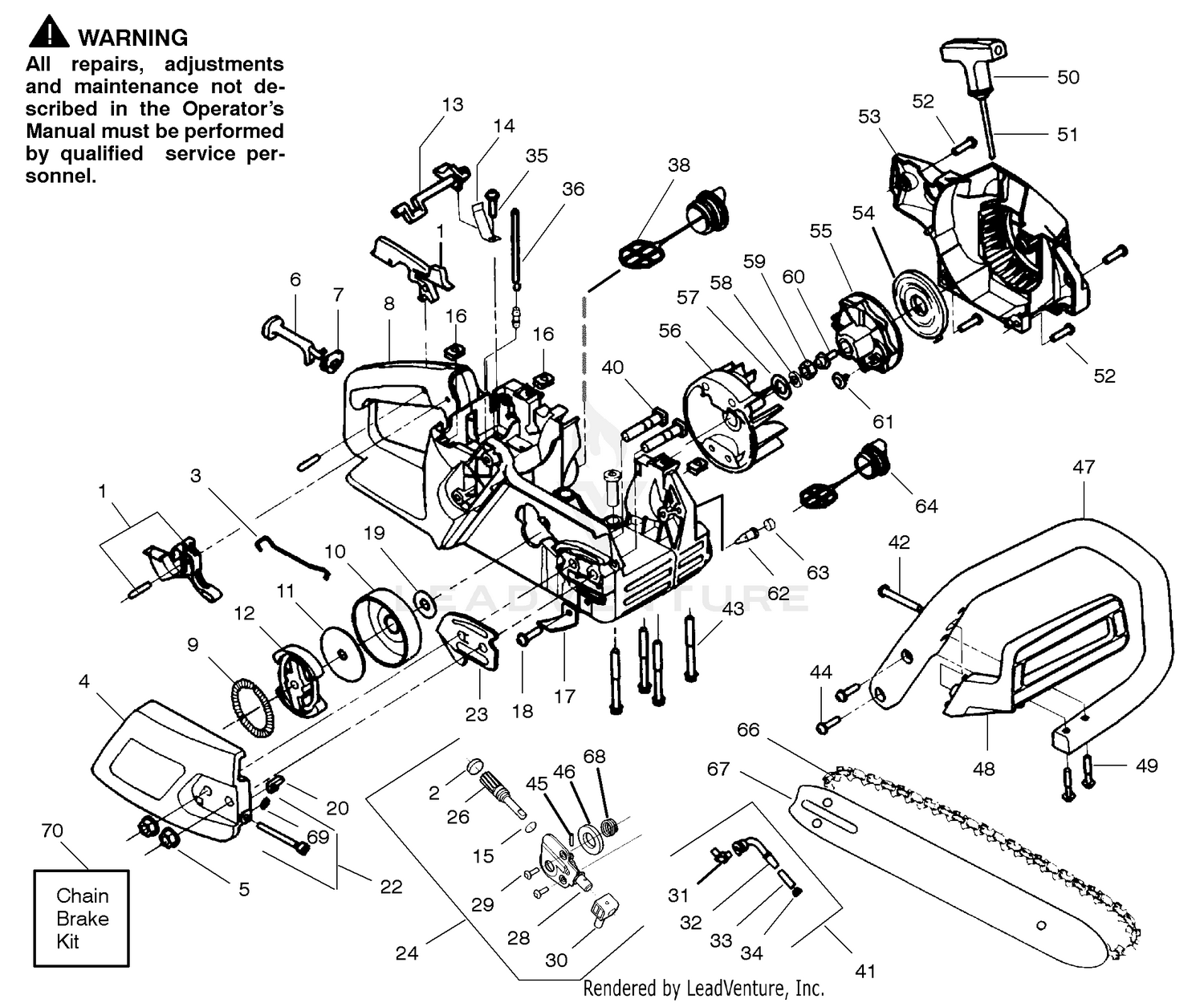

| Ref | Part Number | Description |
|---|
| 3 |
530037809 |
Wire - Throttle Price: $1.99 |
| 4 |
530038718 |
Clutch Cover Price: $3.33 |
| 5 |
530015917 |
Nut - Bar Mounting Price: $0.99 |
| 6 |
530047989 |
Choke Lever Price: $1.99 |
| 7 |
530038406 |
Grommet Price: $1.99 |
| 8 |
530069802 |
Chassis Ass'y. Price: $64.99 |
| 9 |
530014949 |
Clutch Ass'y. This part replaces 530094188. Price: $7.99 |
| 10 |
530047061 |
Clutch Drum Ass'y - w/Brg. Price: $11.99 |
| 11 |
530015611 |
Washer - Clutch Price: $1.99 |
| 12 |
530014949 |
Clutch Ass'y. Price: $7.99 |
| 13 |
530038227 |
Switch Lever Price: $1.99 |
| 14 |
530016149 |
Switch Spring Price: $1.99 |
| 15 |
530019216 |
O-Ring Oiler Price: $0.08 |
| 16 |
530015922 |
Clip Price: $1.99 |
| 17 |
530029850 |
Chain Catcher Price: $1.99 |
| 18 |
530015814 |
Screw-Line Limiter This part replaces 530015905. Price: $1.99 |
| 19 |
530015907 |
Washer - Thrust Price: $1.99 |
| 20 |
530015826 |
ADJUST PIN,BAR 36/41 This part replaces 530016109. Price: $1.99 |
| 23 |
530038238 |
Bar Mounting Plate Price: $1.99 |
| 29 |
530016097 |
Screw Price: $3.33 |
| 30 |
530019206 |
Seal Block Price: $1.99 |
| 31 |
530038241 |
Fitting - Elbow Price: $3.33 |
| 32 |
530038373 |
Pick-Up Tube Price: $1.99 |
| 32 |
X-352-10 |
Stud Price: Call Us |
| 33 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
| 33 |
X-391-1 |
Elbow Price: Call Us |
| 34 |
271030 |
Gasket Price: Call Us |
| 34 |
530056533 |
Filter-Oil This part replaces 530030189. Price: $2.99 |
| 35 |
4805306 |
Carburetor Assembly Price: Call Us |
| 35 |
530015775 |
Screw Price: $1.99 |
| 36 |
200375 |
Gasket-Bowl Price: Call Us |
| 36 |
530069247 |
Fuel Line Kit (Large Dia.) Price: $3.99 |
| 37 |
200376 |
Pin-Float Hinge Price: Call Us |
| 38 |
200380 |
Spring-Idle Price: Call Us |
| 38 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 39 |
200383 |
Spring-Main Price: Call Us |
| 40 |
200408 |
Pin Price: Call Us |
| 40 |
530016133 |
Bolt - Bar Price: $1.99 |
| 41 |
200439 |
OBSOLETE JUNE 2010 Price: Call Us |
| 42 |
234945 |
Screw, Fil. H.M. Price: Call Us |
| 42 |
530016020 |
Screw Price: $0.99 |
| 43 |
235448 |
Bowl Price: Call Us |
| 43 |
530016132 |
Bolt Price: $1.99 |
| 44 |
4875510 |
Kit-Clamp Price: Call Us |
| 44 |
530015814 |
Screw-Line Limiter This part replaces 530015905. Price: $1.99 |
| 45 |
4710004 |
Nut, Bowl Price: Call Us |
| 45 |
530016138 |
Pin - Dowel Price: $0.12 |
| 46 |
4810301 |
Needle, Hi-Speed Price: Call Us |
| 46 |
530019231 |
Dust Seal Price: Call Us |
| 47 |
530037799 |
Front Handle Price: $4.88 |
| 48 |
530038658 |
Handguard Price: $3.33 |
| 49 |
530015940 |
Screw Price: $1.99 |
| 50 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 51 |
530069232 |
Rope Kit Price: $3.99 |
| 52 |
530015892 |
Screw Price: $1.99 |
| 53 |
530049335 |
Fan Housing Price: $9.99 |
| 54 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 55 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 56 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 57 |
530400897 |
Washer Price: $1.99 |
| 58 |
530001717 |
Lockwasher Price: $1.99 |
| 59 |
530016134 |
Nut Price: $1.99 |
| 60 |
530015920 |
Screw Price: $1.99 |
| 61 |
530016080 |
Screw Price: $1.99 |
| 62 |
530026119 |
Check Valve Price: $1.99 |
| 63 |
530038264 |
Plug - Oil Vent Price: $1.99 |
| 64 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 66 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 67 |
952044368 |
BAR 14" .050 3/8 041 52DL This part replaces 952044367. Price: $14.99 |
| 68 |
530037820 |
Worm Gear Spring Price: $1.99 |
| 69 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
