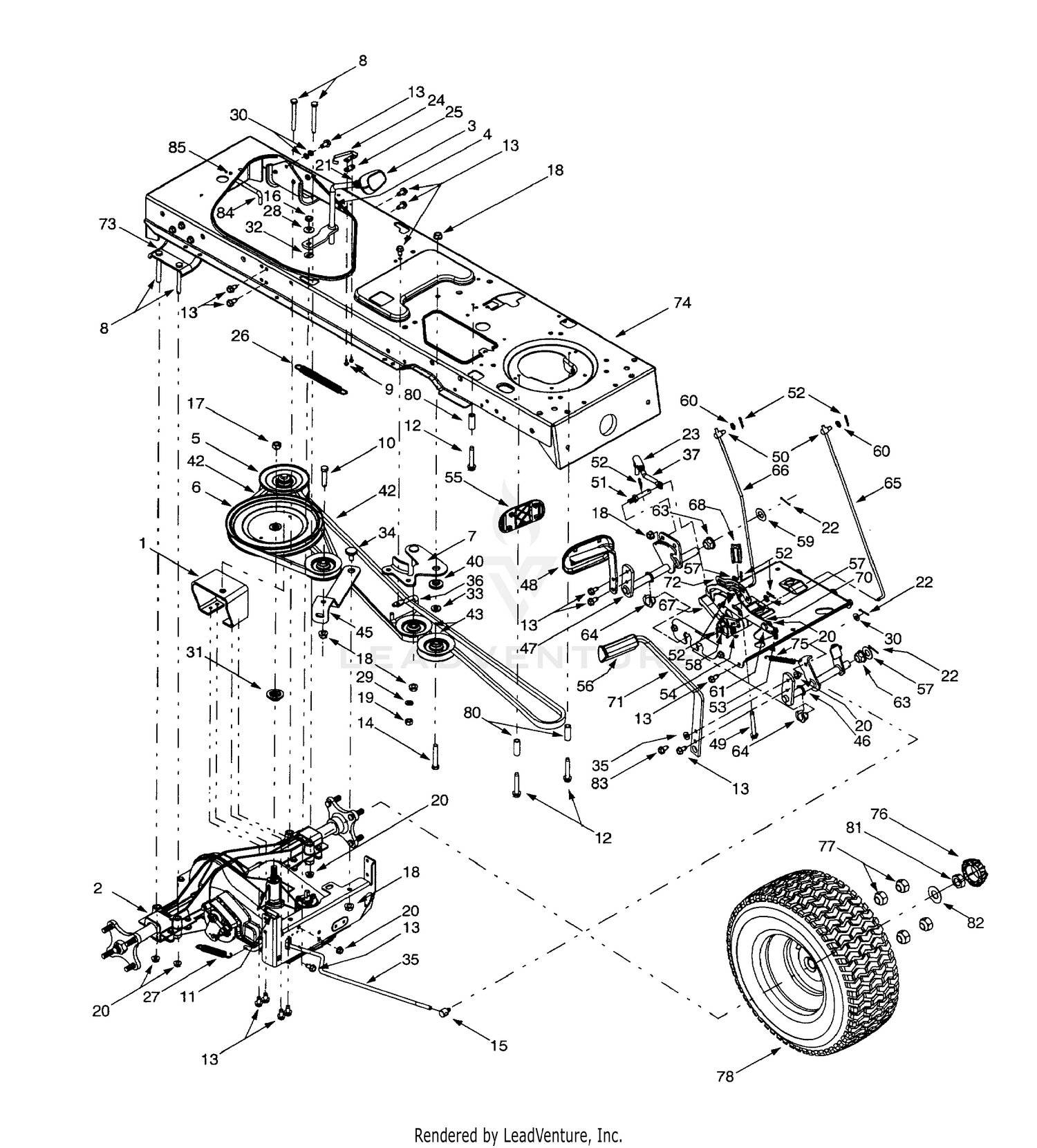

| Ref | Part Number | Description |
|---|
| 1 |
618-0375 |
VARIABLE BRACKET ASSEMBLY Not Available Price: |
| 2 |
753-05002 |
TRANS ASSEMBLY-COMP 2SPD Not Available This part replaces 618-0376. Price: |
| 3 |
931-0009A |
Shfter Knob This part replaces 631-0009A. Price: $13.05 |
| 4 |
647-0037 |
SHIFT LEVER Not Available Price: |
| 5 |
656-0050 |
VARIABLE SPEED PULLEY ASSEMBLY Not Available Price: |
| 6 |
956-0665 |
Transmission Pulley, 8.5 This part replaces 756-0665. Price: $64.59 |
| 7 |
683-0251 |
BRACKET-DOUBLE IDLER PWR BL Not Available Price: |
| 8 |
710-0189 |
Hex Cap Screw, 5/16-18 x 3 Price: $5.30 |
| 9 |
710-0227 |
Self Tapping Screw, #8-18 x.5 Price: $3.90 |
| 10 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 11 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 12 |
710-0809 |
Self-tapping Screw, 1/4-20 x 1.25 Price: $6.37 |
| 13 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 14 |
710-3011 |
Hex Cap Screw, 3/8-16 x 2.25 Price: $6.49 |
| 15 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 16 |
712-0181 |
Hex Jam Nut, 3/8-16 Price: $3.90 |
| 17 |
912-0702 |
Flange Nut, 7/16-20 This part replaces 712-0702. Price: $16.10 |
| 18 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 19 |
712-0798 |
Hex Nut, 3/8-16 Price: $3.86 |
| 20 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 21 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 22 |
714-0111 |
Cotter Pin Price: $4.20 |
| 23 |
923-3018 |
Ball Joint This part replaces 723-3018. Price: $15.50 |
| 24 |
725-1713 |
REVERSE SAFETY SWITCH Not Available Price: |
| 25 |
926-0320 |
Insulator Nut Plate This part replaces 726-0320. Price: $6.01 |
| 26 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 27 |
732-0716D |
Extension Spring, .59 OD x 4.00 LG This part replaces 732-0716. Price: $11.49 |
| 28 |
736-0105 |
Bell Washer, .401 x .870 x .063 Price: $3.96 |
| 29 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 30 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 31 |
918-0771A |
PULLEY HUB Not Available This part replaces 718-0771. Price: |
| 32 |
736-0642 |
FLAT WASHER .44 x .75 x .06 Not Available Price: |
| 33 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 34 |
738-0322A |
Shoulder Screw, .625 x .217 This part replaces 7380322. Price: $5.94 |
| 35 |
747-1122 |
BRAKE ROD Not Available Price: |
| 36 |
747-1123A |
BELT GUARD Not Available Price: |
| 37 |
747-1127 |
IDLER ADJUSTMENT ROD Not Available Price: |
| 40 |
748-0416 |
SHOULDER SPACER Not Available Price: |
| 42 |
954-0467A |
V Belt, 5L, 90.93 Poly This part replaces 754-0467. Price: $46.63 |
| 42 |
954-0468 |
Upper drive Belt This part replaces 754-0468. Price: $28.07 |
| 43 |
756-04224 |
Idler Pulley, 2.75 OD This part replaces 756-0981A. Price: $24.80 |
| 45 |
783-0669-0637 |
Idler Bracket This part replaces 783-0669. Price: $18.95 |
| 46 |
753-05606 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 647-0031. Price: |
| 47 |
647-0032A-0637 |
SPEED CONTROL ASSEMBLY (POWDER BLACK) Not Available This part replaces 647-0032. Price: |
| 48 |
683-0266 |
CONTROL PEDAL ASSEMBLY Not Available Price: |
| 49 |
710-1135 |
SCREW 5/16-18 x 2.50 Not Available Price: |
| 50 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 51 |
711-1363 |
PIN 3/8-16 x 2.21 Not Available Price: |
| 52 |
714-0104 |
Cotter Pin Price: $3.90 |
| 53 |
732-0437 |
Compression Spring, .34 OD x 1.0 Price: $8.93 |
| 54 |
732-0955 |
Extension Spring, .5 OD x 1.41 Price: $8.34 |
| 55 |
735-0662 |
Drive Pedal Pad Price: $10.46 |
| 56 |
735-3049A |
Pad, Brake This part replaces 735-3049. Price: $11.30 |
| 57 |
736-0140 |
Flat Washer, .281 x .5 x .0625 Price: $6.20 |
| 58 |
736-0142 |
Flat Washer, 9/32 x 1/2 x 1/16 Price: $3.95 |
| 59 |
736-0187 |
Flat Washer, .64 x 1.24 x .06 Price: $4.02 |
| 60 |
736-0204 |
Flat Washer, .344 x .062 x .03 Price: $3.89 |
| 61 |
938-0155 |
Screw, Shoulder.437 Dia x.162 This part replaces 738-0155. Price: $6.01 |
| 63 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 64 |
741-3065B |
Hex Flange Bearing: Split This part replaces 741-3065A. Price: $7.45 |
| 65 |
747-1137 |
CRUISE CONTROL ROD Not Available Price: |
| 66 |
747-1138 |
LOCK CONTROL BRAKE ROD Not Available Price: |
| 67 |
748-0413 |
CRUISE LATCH Not Available Price: |
| 68 |
748-0415B |
SPACER .385ID x 1.54" Not Available This part replaces 748-0415A. Price: |
| 70 |
783-0732A |
LOCKOUT BRACKET Not Available This part replaces 783-0732. Price: |
| 71 |
783-0773 |
BRAKE PEDAL Not Available Price: |
| 72 |
753-04872 |
KIT-NEUT RTN BRACKET Not Available This part replaces 783-0780A. Price: |
| 73 |
783-0693A-0637 |
AXLE BRACKET Not Available This part replaces 783-0693. Price: |
| 74 |
683-0304 |
LOWER FRAME Not Available Price: |
| 75 |
732-0963 |
Extension Spring, .5 OD x 6.37 Price: $8.91 |
| 76 |
731-2290B |
HUB CAP This part replaces 731-2290. Price: $3.82 |
| 77 |
712-3050 |
Lug Nut, 7/16-14 Price: $9.17 |
| 78 |
634-0202A |
WHEEL ASM COMP.23X Not Available This part replaces 634-0202. Price: |
| 80 |
750-0566A |
Spacer This part replaces 750-0566. Price: $9.17 |
| 81 |
712-3026 |
Jam Nut, 3/4-16 Price: $4.29 |
| 82 |
736-0316 |
Flat Washer, .78 x 1.59 x .06 Price: $4.02 |
| 83 |
710-1260A |
Hex Screw, 5/16-18 x .75 Price: $3.34 |
| 84 |
747-1185 |
TRANSMISSION BELT GUARD ROD Not Available Price: |
