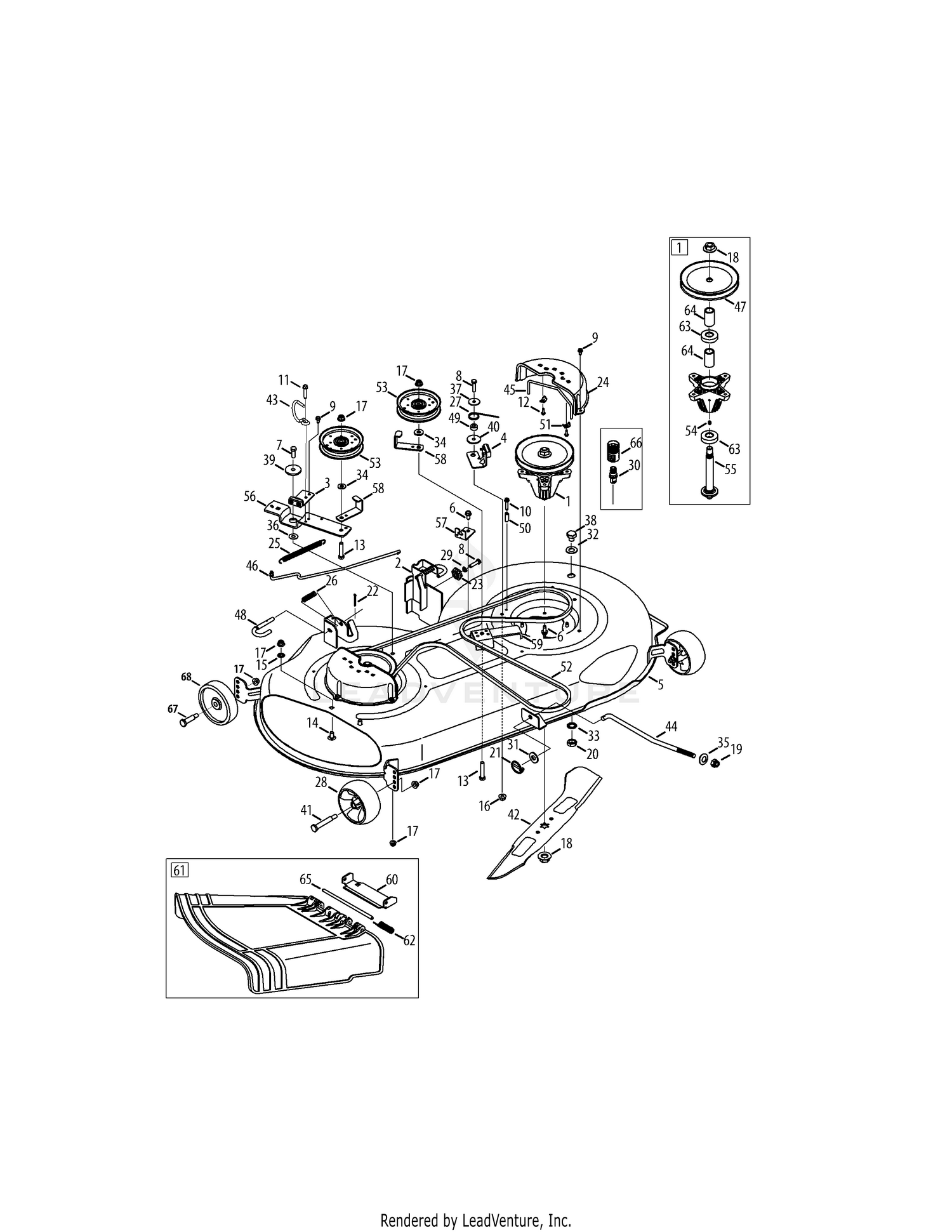

| Ref | Part Number | Description |
|---|
| 1 |
918-04865A |
Spindle Ass’y, Pulley, 6.93 Dia Price: $137.16 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 3 |
983-04511 |
Brake Ass’y, Deck Price: $55.36 |
| 4 |
983-04525 |
Brake Ass’y, Deck Price: $39.96 |
| 5 |
983-04468B |
Deck, Offset, 46" This part replaces 983-04468A-0637. Price: $788.01 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0514 |
Hex Screw, 3/8-16, 1.00 Price: $3.78 |
| 8 |
710-0528 |
Hex Screw, 5/16-18, 1.25 Price: $3.90 |
| 9 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500, Price: $3.86 |
| 10 |
710-0778 |
Screw, Self-tapping, 1/4-20, 1.500, Price: $3.90 |
| 11 |
710-0642 |
Screw, Self-tapping, 1/4-20, .75, Price: $4.05 |
| 12 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 13 |
710-3144 |
Hex Screw, 3/8-16, 2.00 Price: $4.02 |
| 14 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 15 |
712-0229 |
Nut, Push, 3/8 Price: $3.14 |
| 16 |
712-04063 |
Nut, Flange Lock, 5/16-18 Price: $3.56 |
| 17 |
712-04065 |
Nut, Flange Lock, 3/8-16 Price: $3.68 |
| 18 |
712-0417A |
HEX NUT Price: $6.50 |
| 19 |
712-04243 |
Nut, Lock, 1/2-13 Price: $3.52 |
| 20 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 21 |
753-04070 |
Pin, Lynch, .1875 Price: $8.64 |
| 22 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 23 |
917-04074 |
Gear, Deck, Adjustment Price: $11.45 |
| 24 |
731-06496 |
Belt Cover Price: $20.83 |
| 25 |
932-0384 |
EXTENSION SPRING Not Available Price: |
| 26 |
732-04652 |
Spring, Comp, .535 OD x 1.751 Price: $5.88 |
| 27 |
732-04773 |
Spring, Torsion, .992 I.D x 1.17 O.D Price: $3.91 |
| 28 |
734-04155 |
Wheel, Deck, 5.0 Dia Ball Price: $19.04 |
| 29 |
936-0119 |
Washer, Lock, 5/16, Regular Duty Price: $4.29 |
| 30 |
921-04041 |
Water Nozzle Adaptor Price: $20.19 |
| 31 |
736-0179 |
Fl-Wash. 17/32" I.D. This part replaces 936-0179. Price: $4.02 |
| 32 |
736-0187 |
Washer, Flat, .64 x 1.24 x .06, Price: $4.02 |
| 33 |
736-0225 |
Washer, Lock, 5/8, Int Tooth Price: $3.90 |
| 34 |
736-0262 |
Washer, Flat, .385 x .870 x .092 Price: $3.66 |
| 35 |
736-0317 |
Washer, Bell, .63 x 1.25 x .18 Price: $6.99 |
| 36 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 37 |
736-0362 |
Washer, Flat, .330 x 1.25 x .06, Price: $3.93 |
| 38 |
738-04146 |
Plug, Bolt, M16 x 1.5 Price: $8.02 |
| 39 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 40 |
748-0234 |
Spacer, Shoulder Price: $3.86 |
| 41 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 43 |
747-05323 |
BELT KEEPER ROD Not Available Price: |
| 44 |
747-04944B |
Rod, Lift, Deck, Frt, 13.7 Price: $21.93 |
| 45 |
747-05011 |
Rod, Keeper, Belt Price: $8.93 |
| 46 |
747-05052A |
Rod, Control, Brake This part replaces 747-05052. Price: $14.14 |
| 47 |
756-04356 |
Pulley, Deck, 6.93 Dia Price: $34.95 |
| 48 |
747-1116 |
Rod, Handle, Deck Release Price: $11.17 |
| 49 |
750-0258 |
Spacer, .315 x .750 x .375 Price: $10.00 |
| 50 |
750-0566A |
Spacer, .260 x .375 x 1.030 Price: $9.17 |
| 51 |
751B221535 |
Clamp, Casing Price: $8.93 |
| 53 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 54 |
937-3000 |
Fitting, 3/16, Lnc#70, Drive Lube Price: $4.04 |
| 55 |
738-1186A |
Shift, Spindle, 6.11. Price: $45.83 |
| 56 |
783-05946 |
Bracket, Idler, Pivot Price: $33.69 |
| 57 |
783-06243-0637 |
Bracket, Cable, Deck Engage Price: $9.09 |
| 58 |
783-06368A-0637 |
Bracket, Guard, Belt, 4.25 Pulley Price: $18.68 |
| 59 |
783-06643-0637 |
Bracket, Support, Deck Stationary Idler Price: $8.32 |
| 60 |
783-06074A |
CHUTE BRACKET Not Available Price: |
| 61 |
631-05191A |
Discharge Chute Assembly This part replaces 631-04288. Price: $49.80 |
| 62 |
732-04372 |
Torsion Spring, .44 ID x 2.0 Price: $8.93 |
| 63 |
741P0919B |
BALL BEARING This part replaces 941-0919. Price: $18.90 |
| 64 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 65 |
711-04847B |
Hinge Pin Price: $7.63 |
| 66 |
737-04003D |
Deck Water Nozzle Price: $20.69 |
| 67 |
938-0373 |
Bolt, Shoulder, .496 x 1.525, 3/8-16 Price: $8.45 |
