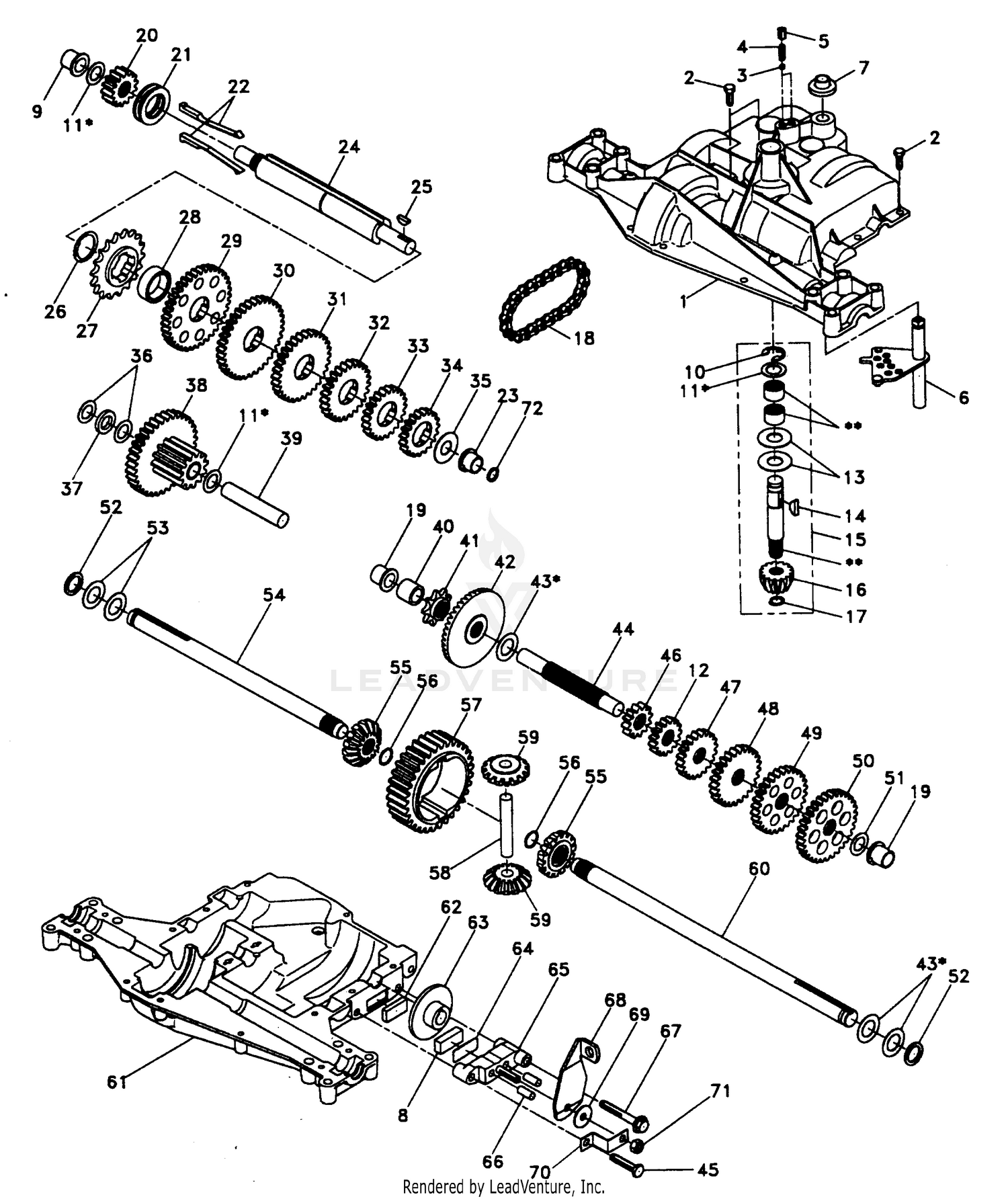

| Ref | Part Number | Description |
|---|
| 1 |
21-0010 |
Gear Box Assembly Price: Call Us |
| 1 |
532132671 |
Housing, Upper (AYP part number) Price: $129.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532002274 |
Screw, Tapping, Large 1/4-20 x .734 (AYP part number) Price: $3.33 |
| 3 |
3217-7 |
NUT-HEX Price: $0.28 |
| 3 |
532068003 |
Ball, Detent (AYP part number) This part replaces 532134400. Price: $2.99 |
| 4 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 4 |
532105904 |
Spring, Detent (AYP part number) Price: $3.33 |
| 5 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 5 |
532105905 |
Screw, Set (AYP part number) Price: $3.33 |
| 6 |
21-0500 |
DISCONTINUED Price: Call Us |
| 6 |
532134788 |
Kit, Shifter Assembly (AYP part number) This part replaces 532138235. Price: $119.99 |
| 7 |
21-3720 |
DISCONTINUED Price: Call Us |
| 7 |
532134399 |
Boot, Shifter (AYP part number) Price: $3.33 |
| 8 |
27-0190 |
DISCONTINUED This part replaces 21-3710. Price: Call Us |
| 8 |
532120951 |
Puck, Friction (AYP part number) Price: $14.99 |
| 9 |
3296-45 |
NUT-HEX Price: $3.79 |
| 9 |
532148266 |
Bearing, Flange (AYP part number) Price: Call Us |
| 10 |
21-0770 |
DISCONTINUED X-REF Price: Call Us |
| 10 |
532002225 |
Ring, Retaining Price: Call Us |
| 11 |
21-0860 |
DISCONTINUED Price: Call Us |
| 11 |
532134793 |
Assembly, Kit, Shim, .625 Shaft (AYP part number) Price: $11.99 |
| 12 |
23-2360 |
DISCONTINUED Price: Call Us |
| 12 |
532143679 |
Gear, Spur, 15 Teeth (AYP part number) Price: $2.99 |
| 13 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 13 |
532120415 |
Washer, Plain .632 x 1.38 x .046 (AYP part number) Price: $2.99 |
| 14 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 14 |
532142674 |
Key, Woodruff, #9 (AYP part number) Price: $3.99 |
| 15 |
5-2942 |
SHACKLE Price: $16.99 |
| 15 |
532106846 |
Assembly, Kit, Input Shaft (AYP part number) Price: $3.33 |
| 16 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 16 |
532167148 |
INPUT.SHAFT.BEVEL.6205 This part replaces 532106095. Price: $199.99 |
| 17 |
21-3770-01 |
LIFT STRAP-DECK, RIGHT REAR This part replaces 21-3770. Price: $15.29 |
| 17 |
532105909 |
Ring, Retaining (AYP part number) Price: $3.33 |
| 18 |
21-0890 |
V-BELT Price: $32.90 |
| 18 |
532105910 |
Chain, 24 Pitches (AYP part number) Price: $39.99 |
| 19 |
3234-6 |
SCREW-HHF Price: $3.19 |
| 19 |
532105911 |
Bearing, Flange (AYP part number) Price: $8.60 |
| 20 |
21-0640 |
WASHER-BELLEVILLE Price: $9.78 |
| 20 |
532142675 |
Gear, Spur, 14 Teeth (AYP part number) Price: $11.99 |
| 21 |
21-3990 |
PULLEY WA Price: $222.87 |
| 21 |
532148267 |
Collar, Clutch (AYP part number) Price: Call Us |
| 22 |
323-4 |
SCREW-HH Price: $1.02 |
| 22 |
532138236 |
Assembly, Kit, Clutch Keys (AYP part number) This part replaces 532138237. Price: $69.99 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
532148268 |
Bearing, Flange (AYP part number) Price: $3.99 |
| 24 |
21-3660 |
DISCONTINUED Price: Call Us |
| 24 |
532143673 |
SHAFT INTER 5404 This part replaces 532142676. Price: $219.99 |
| 25 |
21-0830 |
SPINDLE KEY Price: $0.98 |
| 25 |
532002244 |
Key, Woodruff, #61 (AYP part number) Price: $3.33 |
| 26 |
251-257 |
BEARING-BALL Price: $13.99 |
| 26 |
532105916 |
Ring, Retaining (AYP part number) Price: $2.99 |
| 27 |
23-2390 |
LH SPINDLE SHAFT Price: $165.08 |
| 27 |
532120470 |
Sprocket, 18 Teeth (AYP part number) Price: $25.54 |
| 28 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
532110070 |
Spacer (AYP part number) Price: $3.33 |
| 29 |
26-7120 |
DISCONTINUED This part replaces 21-3960. Price: Call Us |
| 29 |
532142677 |
Gear, Spur, 37 Teeth (AYP part number) Price: $3.33 |
| 30 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
532142681 |
Gear, Spur, 35 Teeth (AYP part number) Price: $3.33 |
| 31 |
21-4740 |
Spindle Housing-Ends Price: Call Us |
| 31 |
583670301 |
GEAR SPUR 30T This part replaces 532124644. Price: $49.99 |
| 32 |
21-0820 |
DISCONTINUED Price: Call Us |
| 32 |
532108980 |
Gear, Spur, 25 Teeth (AYP part number) Price: $3.33 |
| 33 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 33 |
532120406 |
Gear, Spur, 22 Teeth (AYP part number) Price: $3.33 |
| 34 |
3274-15 |
SCREW-HSH Price: $0.42 |
| 34 |
532134796 |
Gear, Spur, 19 Teeth (AYP part number) Price: $79.99 |
| 35 |
21-4790 |
End Cap Spindle Price: Call Us |
| 35 |
532105925 |
Washer, Plain .640 x 1.37 x .061 (AYP part number) Price: $3.33 |
| 36 |
23-2400 |
DISCONTINUED Price: Call Us |
| 36 |
532002232 |
Washer, Plain .632 x 1.00 x .026 (AYP part number) Price: $2.99 |
| 37 |
23-2410-03 |
BLADE-HIGH SAIL, 25 INCH, LH This part replaces 23-2410. Price: $43.26 |
| 37 |
532108978 |
Spacer .630 x 1.00 x .169 (AYP part number) Price: $5.53 |
| 38 |
21-0930 |
SPECIAL WASHER Price: $9.30 |
| 38 |
532110079 |
Assembly, Gear, Combination, 12 & 35 Teeth (AYP part number) Price: $90.68 |
| 39 |
125-1736 |
WASHER-BELLEVILLE This part replaces 22-8520. Price: $3.89 |
| 39 |
532124639 |
Shaft, Idler (AYP part number) Price: $27.99 |
| 40 |
17-0980 |
NUT-SPECIAL Price: $9.99 |
| 40 |
532120472 |
Spacer .633 x .87 x .755 (AYP part number) Price: $3.33 |
| 41 |
302-51 |
ZERK Price: Call Us |
| 41 |
532105928 |
Sprocket, 9 Teeth (AYP part number) Price: $14.99 |
| 42 |
323-18 |
SCREW-HH Price: $0.82 |
| 42 |
532106605 |
Gear, Bevel, 42 Teeth (AYP part number) Price: $81.63 |
| 43 |
21-0650 |
DISCONTINUED Price: Call Us |
| 43 |
532134394 |
Assembly, Kit, Shim, .750 Shaft (AYP part number) Price: $14.99 |
| 44 |
23-2380 |
DISCONTINUED Price: Call Us |
| 44 |
532120473 |
Shaft, Drive (AYP part number) Price: $3.33 |
| 45 |
253-133 |
SEAL-OIL Price: $21.11 |
| 45 |
532106596 |
Screw, Tapping, Large 5/16-18 x 1.44 (AYP part number) Price: $3.33 |
| 46 |
3231-4 |
SCREW-CARR Price: $3.59 |
| 46 |
532142678 |
Gear, Spur, 12 Teeth (AYP part number) Price: $3.33 |
| 47 |
323-8 |
SCREW-HH Price: $1.20 |
| 47 |
532120407 |
Gear, Spur, 20 Teeth (AYP part number) Price: $3.33 |
| 48 |
21-3940 |
DISCONTINUED Price: Call Us |
| 48 |
532106589 |
Gear, Spur, 25 Teeth (AYP part number) Price: $3.33 |
| 49 |
3247-4 |
SCREW-SET Price: $0.54 |
| 49 |
532120408 |
Gear, Spur, 28 Teeth (AYP part number) Price: $3.33 |
| 50 |
21-0880 |
DISCONTINUED Price: Call Us |
| 50 |
532105937 |
Gear, Spur, 31 Teeth (AYP part number) Price: $3.33 |
| 51 |
532002226 |
Washer, Plain .632 x 1.00 x .060 (AYP part number) Price: $3.33 |
| 52 |
532134401 |
Washer, Neoprene (AYP part number) Price: $5.99 |
| 53 |
532002264 |
Washer, Plain .758 x 1.25 x .031 (AYP part number) Price: $3.33 |
| 54 |
532154658 |
KIT.AXLE.LH.4997.DANA This part replaces 532120474. Price: $139.99 |
| 55 |
532169651 |
GEAR KIT This part replaces 532110081. Price: $49.99 |
| 56 |
532105941 |
Ring, Retaining (AYP part number) Price: $3.33 |
| 57 |
532110071 |
Gear, Spur, 32 Teeth (AYP part number) Price: $159.99 |
| 58 |
532120952 |
Shaft, Cross (AYP part number) Price: $3.33 |
| 59 |
532169651 |
GEAR KIT This part replaces 532110082. Price: $49.99 |
| 60 |
532120475 |
Axle, R.H. (AYP part number) Price: Call Us |
| 61 |
532142680 |
Housing, Lower (AYP part number) Price: $171.99 |
| 62 |
532120961 |
Puck, Friction (AYP part number) Price: $14.99 |
| 63 |
532007294 |
Disc, Brake (AYP part number) Price: $29.98 |
| 64 |
532108989 |
Spacer (AYP part number) Price: $3.99 |
| 65 |
532164670 |
JAW BRAKE This part replaces 532120953. Price: $59.99 |
| 66 |
532120954 |
Pin, Dowel (AYP part number) Price: $4.99 |
| 67 |
532134799 |
Screw, Tapping 5/16-18 x 2.25 (AYP part number) Price: $3.33 |
| 68 |
532108992 |
Lever, Actuating (AYP part number) This part replaces 532138244. Price: $24.99 |
| 69 |
532108996 |
Washer, Plain .321 x 1.00 x .055 (AYP part number) Price: $3.33 |
| 70 |
532120956 |
Bracket, Anti-Rotation (AYP part number) Price: $3.33 |
| 71 |
873610500 |
This part replaces 873810500. Price: Call Us |
| 72 |
532148269 |
Seal, Oil (AYP part number) Price: Call Us |
