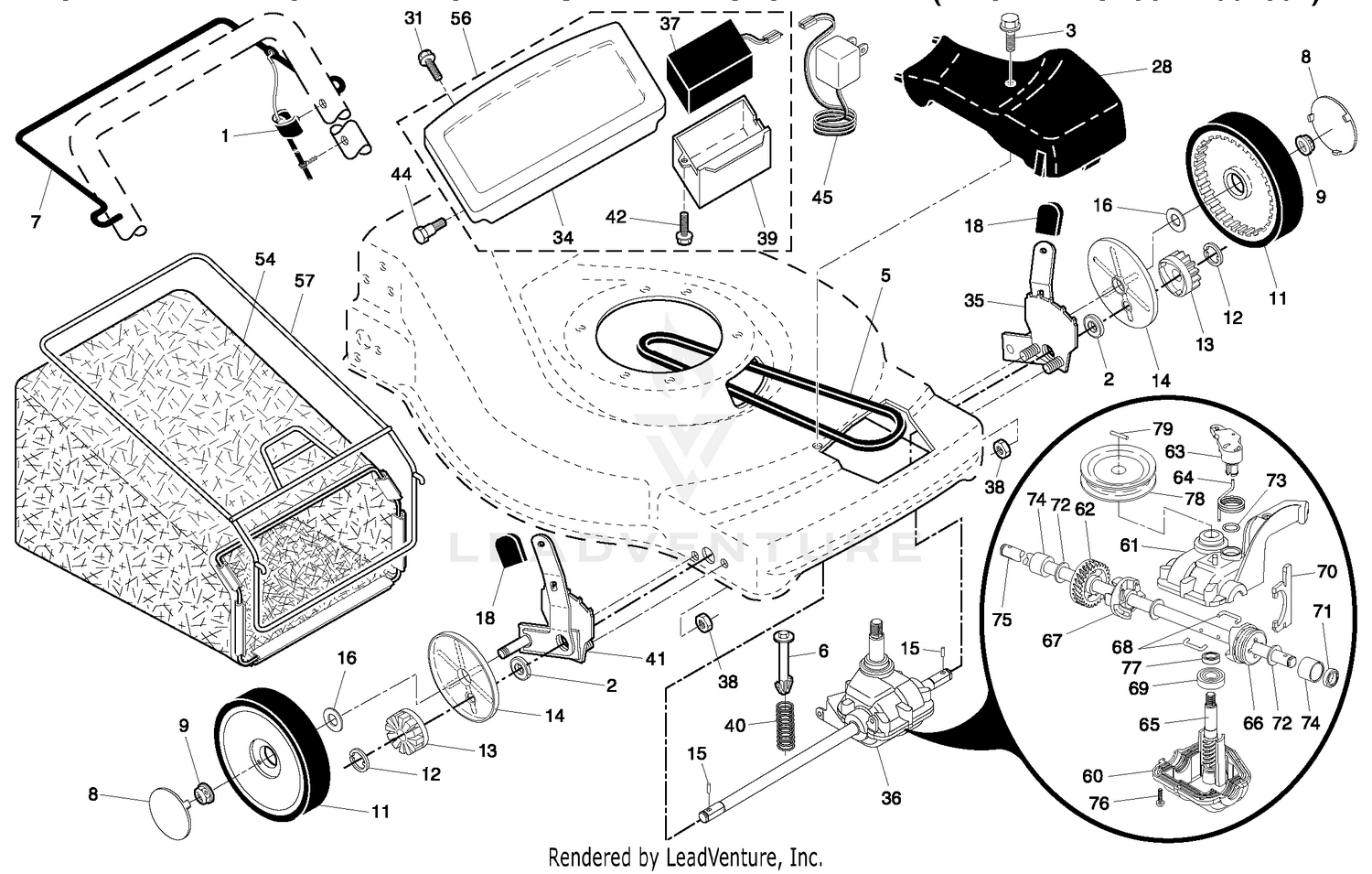

| Ref | Part Number | Description |
|---|
| 1 |
99-6905-03 |
NO. 5 LIFT ARM ASM Price: $807.57 |
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 3 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 5 |
104-1438-03 |
STEP-PERFORATED Price: $33.53 |
| 5 |
146527 |
V-Belt Price: Call Us |
| 6 |
150495 |
Retainer, Spring Price: Call Us |
| 6 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 7 |
194185X428 |
Bar, Drive Control Price: Call Us |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 8 |
407793X427 |
Hubcap Price: Call Us |
| 8 |
99-6941-03 |
PIVOT ROD ASM Price: $92.29 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
409149 |
Locknut, Hex Price: Call Us |
| 10 |
98-3929 |
SPRING-TORSION Price: $23.85 |
| 11 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 11 |
180773 |
Wheel & Tire Assembly, Front Price: Call Us |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 13 |
403849 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 15 |
191017 |
Pawl, Drive Price: Call Us |
| 15 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 16 |
282-4 |
SHACKLE Price: $32.98 |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
701037 |
Selector Knob Price: Call Us |
| 19 |
256-287 |
BUSHING Price: $1.76 |
| 20 |
104-1413 |
CHAIN-LINK, STRAIGHT Price: $10.05 |
| 21 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 22 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 23 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 26 |
99-5610 |
PIN Price: $40.16 |
| 27 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 28 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 29 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 30 |
99-6913-03 |
DISCONTINUED Price: Call Us |
| 31 |
141841 |
Screw, Trimplate Price: Call Us |
| 31 |
99-6904-03 |
ARM ASM #4 Price: $728.47 |
| 32 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 33 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 34 |
411190 |
Trimplate Price: Call Us |
| 34 |
99-6901-03 |
DISCONTINUED Price: Call Us |
| 35 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 36 |
199206 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
189589 |
Battery Price: Call Us |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
186237 |
Battery Box Price: Call Us |
| 39 |
32128-21 |
NUT-HF Price: $0.39 |
| 40 |
137090 |
Spring Price: Call Us |
| 40 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 41 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 42 |
17411308 |
Screw, Battery Box Price: Call Us |
| 42 |
98-3936 |
LANYARD Price: $23.28 |
| 44 |
175551 |
Screw, Trimplate Price: Call Us |
| 45 |
190097 |
Charger, Battery Price: Call Us |
| 54 |
412357 |
Grassbag Assembly Price: Call Us |
| 56 |
191252 |
Trimplate, Battery Box and Battery Assembly Price: Call Us |
| 57 |
407454 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
183502 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196561 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
199852 |
Pulley, Drive Price: Call Us |
