| Ref | Part Number | Description |
|---|
| 1 |
106-8059 |
KIT-ENGINE KUBOTA This part replaces 108-1361. Price: $9,147.51 |
| 1 |
165892 |

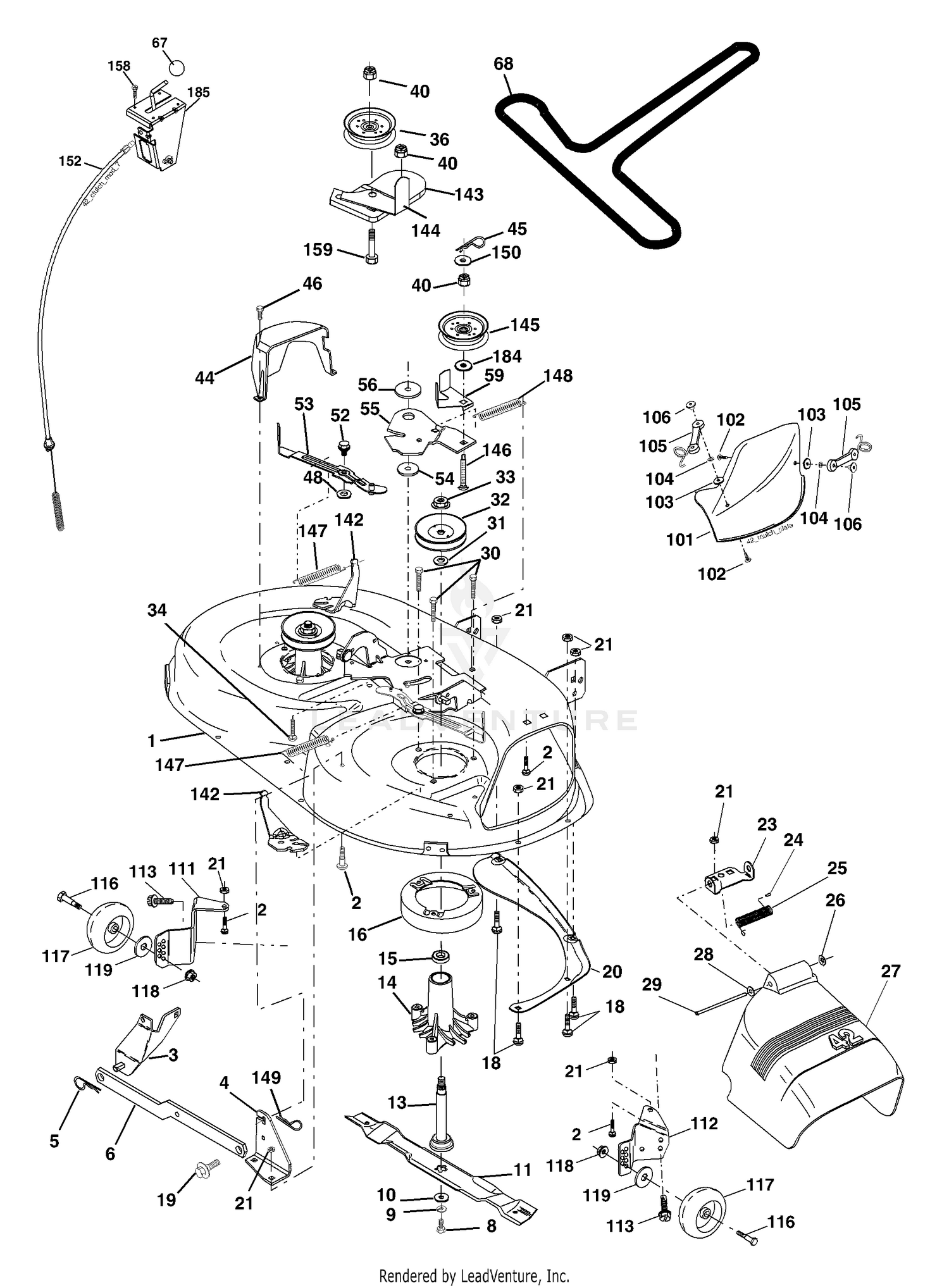

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
106-8069 |
MUFFLER-EXHAUST Price: $620.16 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
33004-00 |
NUT-HF Price: $0.34 |
| 4 |
105-2523-03 |
BRACKET-MUFFLER Price: $34.40 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
33114-016 |
SCREW-HH Price: $0.27 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
32128-37 |
NUT-HF Price: $3.63 |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
324-11 |
SCREW-HH Price: $3.05 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 12 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 15 |
105-2519-03 |
CLAMP-CRADDLE Price: $58.64 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
323-44 |
SCREW-HH Price: $3.69 |
| 17 |
110-9679-03 |
GUARD-ALTERNATOR This part replaces 105-2557-03. Price: $63.13 |
| 18 |
105-2556-03 |
BRACE-ALTERNATOR, UPPER Price: $60.30 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
105-4276 |
GUIDE-BELT, PTO Price: $18.17 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
105-0052-03 |
BRACKET-GUIDE, BELT Price: $21.03 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
81-1280 |
SCREW-HHF Price: $1.69 |
| 22 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 24 |
104-4246 |
FAN-ENGINE This part replaces 107-9096. Price: $154.04 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 30 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 31 |
104-3408-03 |
HUB-FAN Price: $165.47 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
32136-3 |
NUT-SHH Price: $1.22 |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 33 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 34 |
72110612 |
Bolt Price: Call Us |
| 36 |
104-3463-03 |
FRONT MOUNT ASM Price: $103.56 |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
104-3464-03 |
MOUNT-FRAME, FRONT (LH) Price: $44.16 |
| 38 |
43-0090 |
SCREW-HH Price: $8.05 |
| 39 |
324-6 |
SCREW-HH Price: $0.81 |
| 40 |
73900600 |
Nut Price: Call Us |
| 40 |
75-9900-01 |
SUPPORT-ENGINE, FRONT Price: $226.52 |
| 41 |
105-0057 |
STUD-RETAINER, BELT Price: $10.04 |
| 42 |
104-3406 |
PULLEY-ENGINE, MACHINING V This part replaces 104-3406-03. Price: $319.58 |
| 43 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 44 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 45 |
3241-5 |
SCREW-SET Price: $0.61 |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
110-5236 |
HUB-ENGINE This part replaces 27-1960. Price: $30.97 |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 47 |
32120-69 |
RING-SNAP Price: $2.78 |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 48 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 49 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 50 |
251-252 |
BEARING Price: $98.35 |
| 51 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 52 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 53 |
63-1400 |
ROD-BELT Price: $17.83 |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 54 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 55 |
104-3465-03 |
MOUNT-FRAME, FRONT (RH) Price: $44.16 |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 56 |
321-4 |
SCREW-HH Price: $0.99 |
| 57 |
104-3421-03 |
BRACKET-THROTTLE Price: $42.29 |
| 58 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 60 |
3217-5 |
NUT-HEX Price: $0.25 |
| 61 |
33113-050 |
SCREW-HH Price: $0.62 |
| 62 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 63 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 65 |
98-9676 |
V-BELT Price: $31.01 |
| 67 |
171598 |
Knob Price: Call Us |
| 67 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 69 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 70 |
115-4513-03 |
BRACKET-MUFFLER This part replaces 105-2598-03. Price: $35.52 |
| 71 |
18-9810 |
WASHER-THRUST Price: $7.99 |
| 72 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 74 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 75 |
33013-00 |
NUT-HEX Price: $0.25 |
| 76 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 77 |
92-1374 |
SCREW-CAP,HH Price: $1.02 |
| 92 |
73800600 |
Nut 3/8-16 Price: Call Us |
| 101 |
136420 |
Cover Mulching Price: Call Us |
| 102 |
71081010 |
Screw Pan Hd Phillip 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer Lock #10 Price: Call Us |
| 105 |
160793 |
Latch Asm Price: Call Us |
| 106 |
2029J |
Nut Weld Price: Call Us |
| 111 |
179292 |
Bracket Wheel Guage LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Gauge RH Price: Call Us |
| 113 |
17000510 |
Bolt 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt Shoulder Price: Call Us |
| 117 |
165746 |
Wheel Guage Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt 3/8-16 x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
