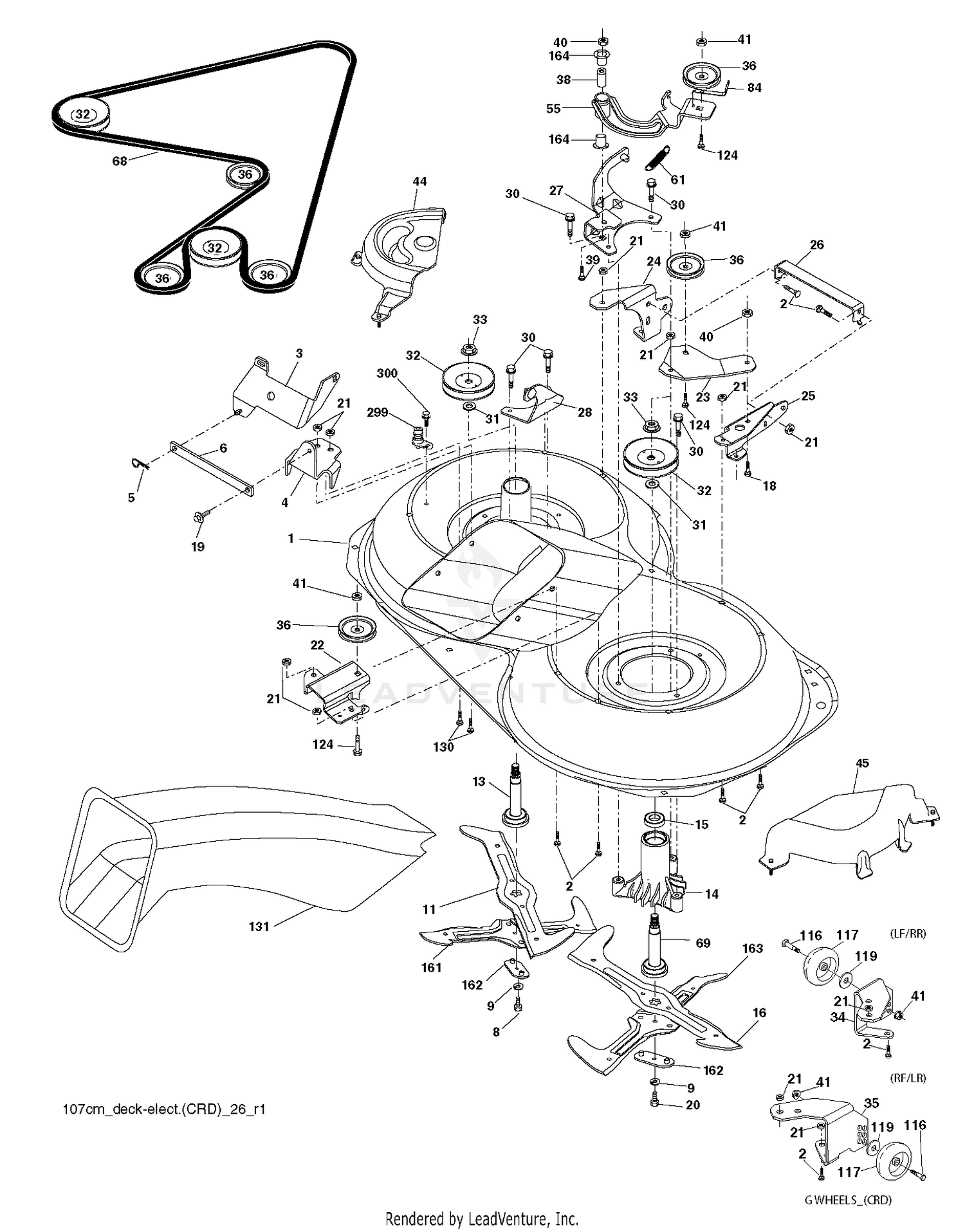

| Ref | Part Number | Description |
|---|
| 1 |
47-3990 |
DECAL Price: $19.68 |
| 1 |
532169160 |
Housing Asm. Mower 107 CRD Price: Call Us |
| 2 |
47-3570-01 |
REAR CROSS CHANNEL ASM This part replaces 47-3570. Price: $1,179.36 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $19.99 |
| 4 |
3290-216 |
WASHER Price: $3.83 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 5 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
32153-5 |
NUT-HEX Price: $1.59 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
325-14 |
SCREW-HH Price: $2.64 |
| 8 |
47-3560-01 |
FRONT CROSS CHANNEL ASM This part replaces 47-3560. Price: $1,253.08 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
3290-274 |
RIVET-POP Price: $0.25 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
47-3900 |
PLATE-INFORMATION Price: $68.97 |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 12 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 13 |
65-5890 |
CAP-END Price: $8.09 |
| 14 |
106-9665 |
TUBE & CAP ASM This part replaces 65-5871. Price: $17.71 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
2412-102 |
CLAMP-R Price: $6.85 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 17 |
47-3470-03 |
SUPPORT-VALVE This part replaces 47-3470. Price: $79.97 |
| 18 |
325-6 |
SCREW-HH Price: $1.42 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532169165 |
BRACKET.IDLER.RR.107.CRD Price: $12.99 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
583341901 |
BRKT.SPENSION.LH.107.CRD This part replaces 532413436. Price: $22.99 |
| 25 |
583259001 |
BRKT.SUSP.RF.CRD.107.2006 This part replaces 532400105. Price: $34.99 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532400110. Price: $29.99 |
| 27 |
532169172 |
BRACKET Price: $24.99 |
| 28 |
583029401 |
BRACKET.ASM.SUSP.LR.107.CRD This part replaces 532169168. Price: $22.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532198145 |
PULLEY.MANDREL.4.80 PD.2006 Price: $7.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
583258801 |
BRKT.GA.WHL.LF/RR.107.2006 This part replaces 532400103. Price: $22.99 |
| 35 |
583258901 |
BRKT.GA.WHL.RF/LR.107.2006 This part replaces 532400104. Price: $19.99 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 38 |
532169851 |
SPACER Price: $8.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
532432773 |
Price: Call Us |
| 45 |
532432772 |
Price: Call Us |
| 55 |
531149401 |
SERVICE KIT ARM.IDLER ARM.IDLE This part replaces 532169849. Price: $17.99 |
| 61 |
583252701 |
SPRING.TENSION.107.CRD.2006 This part replaces 532199487. Price: $7.99 |
| 68 |
547597001 |
DRIVE BELT HEX-BELT 107 MOWER This part replaces 532402009. Price: $59.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 161 |
532180424 |
Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 299 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 300 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
