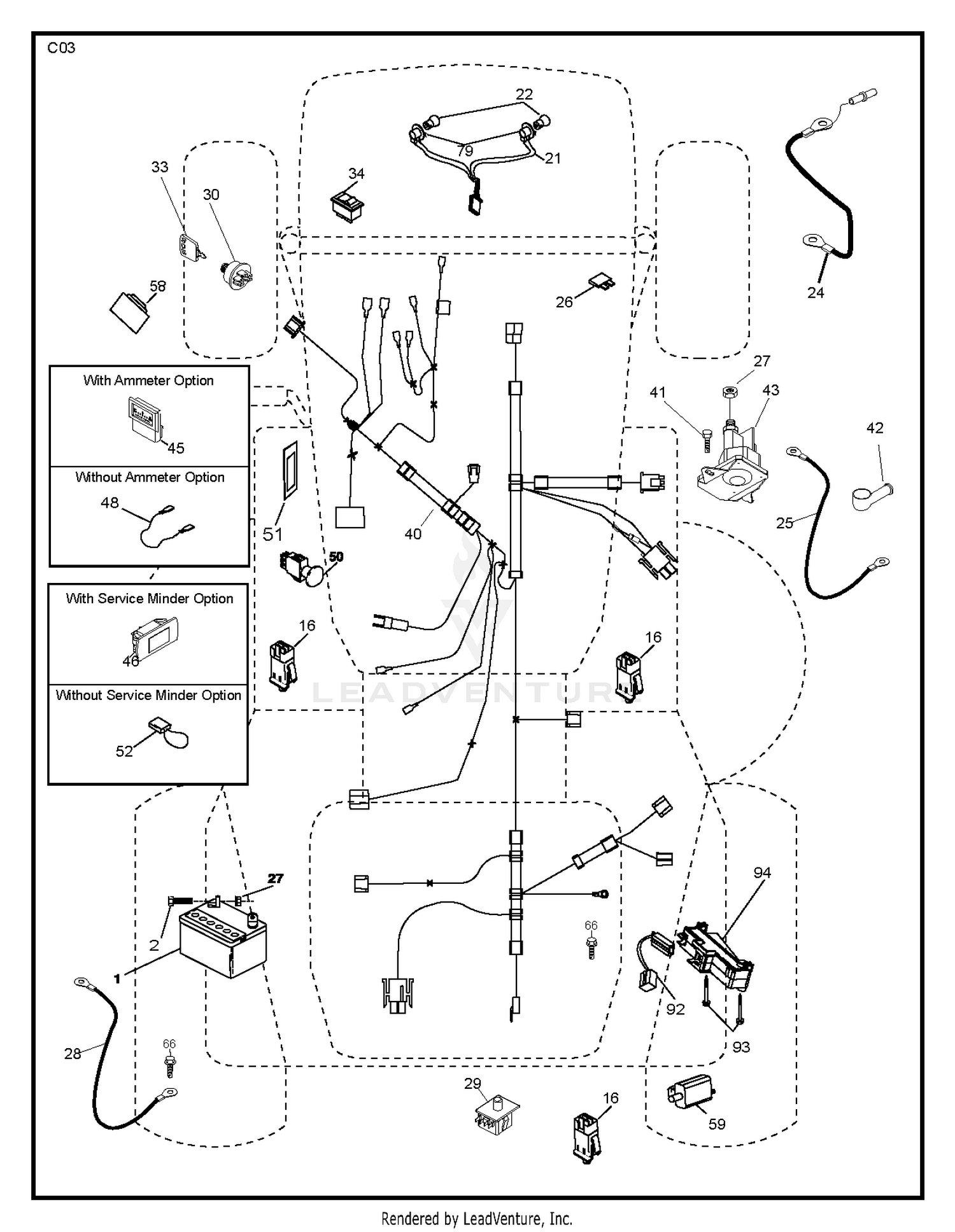

| Ref | Part Number | Description |
|---|
| 1 |
110-4750 |
DRIVE AXLE ASM Price: $8,909.28 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
340-126 |
NUT-BULKHEAD Price: $4.61 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
| 4 |
120-9069-03 |
PLATE-MOUNT, BULKHEAD Price: $33.45 |
| 5 |
43-0090 |
SCREW-HH Price: $8.05 |
| 6 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 7 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
92-5836 |
WASHER Price: $5.34 |
| 9 |
100-3796 |
SPACER-JOINT, BALL Price: $13.33 |
| 10 |
32136-14 |
NUT-HST Price: $3.38 |
| 11 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 12 |
93-5268 |
NUT-LUG Price: $2.20 |
| 14 |
74-5700 |
BEARING-NEEDLE, ROLLER Price: $27.84 |
| 15 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 16 |
100-3053 |
GEAR-45 TOOTH Price: $220.85 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
106-1140 |
GASKET Price: $17.66 |
| 18 |
104-2353 |
PIN-DOWEL Price: $2.17 |
| 19 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 20 |
32120-76 |
RING-SNAP, EXT Price: $0.34 |
| 21 |
104-0755 |
PINION-27 TOOTH Price: $168.40 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
237-166 |
O-RING Price: $10.46 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
325-7 |
SCREW-HH Price: $1.53 |
| 24 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 25 |
120-8814 |
HYD MOTOR ASM Price: $2,731.96 |
| 25 |
532421299 |
CABLE.STARTER.6GA.11"RED Price: $17.99 |
| 26 |
33114-025 |
SCREW-HH Price: $0.70 |
| 27 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
121-1535 |
STEERING CYLINDER ASM Price: $1,109.52 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
92-1765 |
WASHER-THRUST Price: $2.57 |
| 32 |
325-6 |
SCREW-HH Price: $1.42 |
| 33 |
130-2744-03 |
MOUNT-REAR Price: $649.41 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 35 |
145-8330 |
PIN-AXLE, REAR This part replaces 98-7077. Price: $192.04 |
| 36 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 37 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 40 |
532197434 |
RP HARNESS.IGN.ELECT.REG.CRD Price: $74.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
