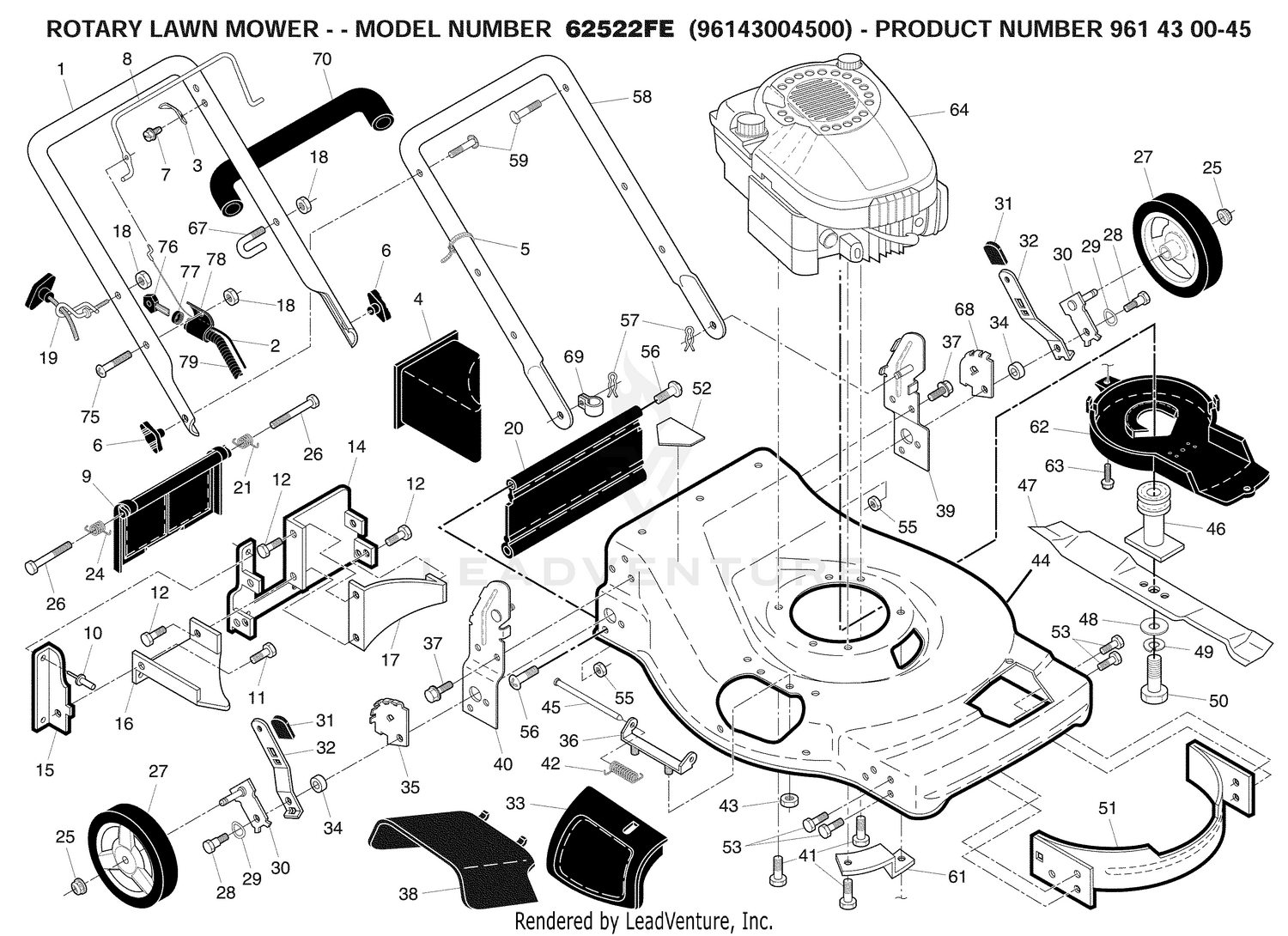

| Ref | Part Number | Description |
|---|
| 1 |
32103-12 |
NUT-WING Price: $1.15 |
| 2 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 2 |
532401994 |
CABLE.MZR.W/KEY.START SW.51.62 Price: $17.99 |
| 3 |
100-6434 |
ROD-HOLD DOWN, BATTERY This part replaces 72-4790. Price: $10.10 |
| 3 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 4 |
28-8080 |
BOOT-TERMINAL Price: $22.99 |
| 4 |
532166649 |
PLUG.MULCH.22RD Price: $27.99 |
| 5 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 6 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 7 |
33113-016 |
SCREW-HH Price: $0.34 |
| 7 |
532750634 |
SCREW Price: $2.99 |
| 8 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 8 |
532413185 |
BAIL.MZR.CREA.ORANGE Price: $27.99 |
| 9 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 9 |
532401813 |
DOOR.REAR.22.PLASTIC.EZ.EMPT This part replaces 532408492. Price: $14.99 |
| 10 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 11 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 11 |
98-5488 |
MOUNTING PLATE Price: Call Us |
| 12 |
3296-9 |
NUT-HEX Price: $0.25 |
| 12 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 13 |
100-0052 |
GROUND WIRE Price: $109.70 |
| 14 |
100-0050 |
BATTERY PLATE ASM Price: $201.84 |
| 14 |
532195622 |
PLATE.BACK.22.RD/VE/STD This part replaces 532197076. Price: $12.99 |
| 15 |
100-0051 |
RUBBER Price: $4.44 |
| 15 |
532410545 |
BAFFLE.SIDE.PNT.BLACK This part replaces 532411334. Price: $5.99 |
| 16 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 16 |
532176655 |
BAFFLE.DISCHRG.22RD.VE.N/SLOTS This part replaces 532177133. Price: $8.99 |
| 17 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 17 |
532140661 |
BAFFLE.REAR.HSG.ASM.QT.22.BLAC This part replaces 532148941. Price: $6.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 18 |
98-5485 |
TUBE Price: Call Us |
| 19 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
33125-090 |
SCREW-CARR Price: $11.75 |
| 20 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE Price: $11.99 |
| 21 |
10-8120 |
BATTERY BOLT Price: $29.86 |
| 21 |
532405421 |
SPRING.LH.22.REAR.DOOR.EZ.EMPT Price: $3.99 |
| 22 |
33113-008 |
SCREW-HH Price: $0.95 |
| 23 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 24 |
532405423 |
SPRING.RH.22.REAR.DOOR.EZ. Price: $3.99 |
| 24 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 25 |
100-0010 |
CABLE-BATTERY, POSITIVE Price: $110.46 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 26 |
33113-020 |
SCREW-HH Price: $0.26 |
| 26 |
532184193 |
BOLT Price: $4.99 |
| 27 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 27 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 Price: $7.99 |
| 29 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 30 |
532401179 |
ARM.ASM.AXLE.5/9.POS.BZP This part replaces 532407871. Price: $5.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 32 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 33 |
532197029 |
DOOR.MULCH.22.REAR.FWGD.GREY Price: $11.99 |
| 34 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 35 |
532407492 |
BRACKET.ADJ.5.IDL.RTAB.ADS This part replaces 532410624. Price: $3.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 38 |
532403819 |
DEFLECTOR.CLIPPING.22.GREY Price: $13.99 |
| 39 |
532419193 |
BRACKET.ASM.HDL.LT.EZEM.22.ORA Price: $12.99 |
| 40 |
532419192 |
BRACKET.ASM.HDL.RT.EZEM.22.ORN Price: $17.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
532421176 |
ADAPTER.BLADE/PULLEY.25M This part replaces 532189179. Price: $24.99 |
| 47 |
532406713 |
BLADE.22.MULCH.STANDARD Price: $22.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532170031 |
FRONT BAFFLE KIT Price: $22.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 55 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 56 |
532088652 |
HINGE SCREW Price: $3.99 |
| 57 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 58 |
583757501 |
HANDLE.LOWER.21.FGD.ES.NB.GRAY This part replaces 532403433. Price: $29.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 61 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 62 |
585472601 |
KIT.SHIELD.DEBRIS.22FD/21RD This part replaces 532405843. Price: $25.99 |
| 63 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 67 |
532401607 |
CLIP.WIREFORM.PACK.TOR Price: $4.99 |
| 68 |
532407493 |
WHEEL ADJUSTING BRACKET LH This part replaces 532410623. Price: $3.99 |
| 69 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 70 |
532186362 |
GRIP, FOAM Price: $7.99 |
| 75 |
532186159 |
SCREW.(COMBINATION CONTROL) Price: $2.99 |
| 76 |
532180331 |
KEY.MOLDED Price: $5.99 |
| 77 |
532194848 |
NUT.CAP.SNAP-ON.KEY START Price: $5.99 |
| 78 |
532409567 |
HARNESS.WIRING.CONTROL Price: $54.99 |
| 79 |
532409567 |
HARNESS.WIRING.CONTROL Price: $54.99 |
