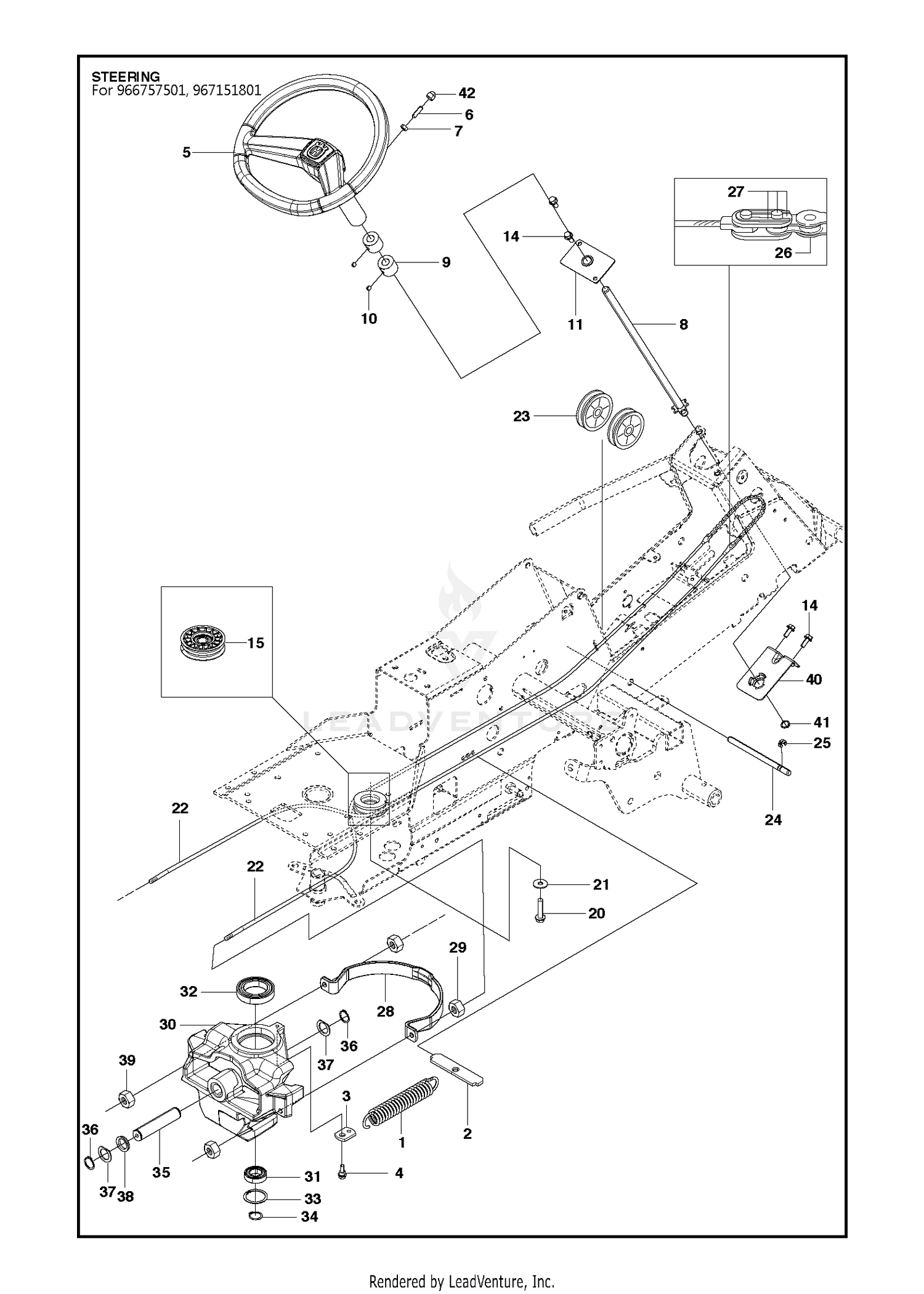

| Ref | Part Number | Description |
|---|
| 1 |
506671901 |
SPRING Price: $22.99 |
| 2 |
590735401 |
Brackets This part replaces 506576301. Price: $12.99 |
| 3 |
506670801 |
CONNECTOR Price: $6.99 |
| 4 |
506597401 |
BOLT Price: $5.99 |
| 5 |
577960401 |
STEERING WHEEL Price: $74.99 |
| 6 |
728745505 |
SCREW Price: $3.99 |
| 7 |
731231801 |
NUT Price: $3.99 |
| 8 |
583908801 |
STEERING ROD ASSY LONG Price: $69.99 |
| 9 |
587080901 |
DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 |
115-3018 |
NOZZLE HOLDER KIT Price: $440.14 |
| 10 |
728844305 |
Screw Price: $1.99 |
| 11 |
584155601 |
BRACKET STEERING ASSY WITH BUS Price: $14.99 |
| 14 |
506570104 |
BOLT Price: $4.99 |
| 15 |
576492501 |
PULLEY Price: $44.99 |
| 20 |
121-2411 |
NUT Price: $6.48 |
| 21 |
734117441 |
WASHER Price: $3.99 |
| 22 |
501604804 |
WIRE ASSY This part replaces 577199904. Price: $17.99 |
| 23 |
506522401 |
ROLLER Price: $9.99 |
| 24 |
506539404 |
SHAFT This part replaces 506539403. Price: $14.99 |
| 25 |
735311420 |
RETAINING RING Price: $2.99 |
| 26 |
506554601 |
STEERING CHAIN Price: $17.99 |
| 27 |
506554701 |
LINK Price: $4.99 |
| 28 |
544427301 |
WIRE GUIDE Price: $29.99 |
| 29 |
731232001 |
Nut Price: $3.99 |
| 30 |
577659301 |
SPINDLE Price: $159.99 |
| 30 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 31 |
738210504 |
Ball Bearing 6005-2rs Price: $28.99 |
| 32 |
738211004 |
BALL BEARING 6010 2RS1 Price: $39.99 |
| 33 |
735314010 |
CIRCLIP SGH 47 Price: $4.99 |
| 34 |
735312600 |
RETAINING RING SGA 25 Price: $2.99 |
| 35 |
506985901 |
SHAFT Price: $44.99 |
| 36 |
735312600 |
RETAINING RING SGA 25 Price: $2.99 |
| 37 |
506773401 |
WASHER Price: $3.99 |
| 38 |
740681421 |
V-RING Price: $3.99 |
| 39 |
732212001 |
NUT This part replaces 732212051. Price: $3.99 |
| 40 |
583899701 |
BRACKET STEERING ROD ASSY Price: $19.99 |
| 40 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 41 |
735311700 |
RETAINING RING SGA 15 Price: $2.99 |
| 42 |
544433201 |
PROTECTIVE COVER Price: $3.99 |
| 50 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 60 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 70 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 80 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 90 |
115-3020 |
PIECE-NOZZLE Price: $150.73 |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 120 |
98-7676 |
GASKET Price: $2.73 |
