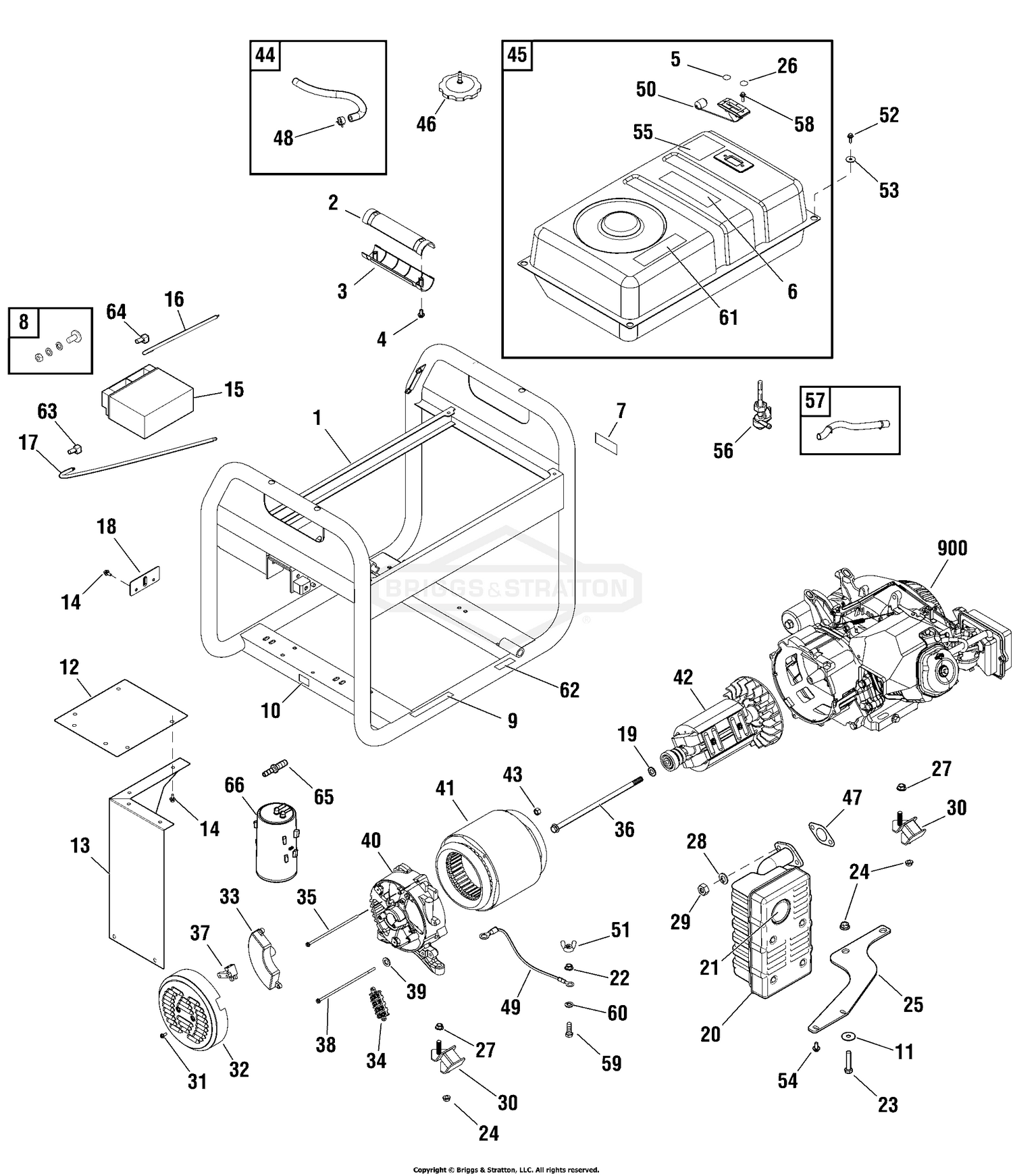

Main Unit (316662)
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 312007GS | CRADLE Price: $489.99 |
| 2 | 312008GS | GRIP-HANDLE Price: $14.39 |
| 3 | 312009GS | GRIP-HANDLE Price: $14.86 |
| 4 | 75477GS | SCREW Price: $3.28 |
| 5 | 313461GS | DECAL Price: $8.89 |
| 6 | 194984GS | DECAL Price: $13.99 |
| 7 | 197798GS | DECAL Price: $7.89 |
| 8 | 315546GS | KIT-HRDWR, BATTERY TERMINAL Price: $8.05 |
| 9 | 200310GS | DECAL Price: $14.83 |
| 10 | B4986GS | DECAL Price: $2.75 |
| 11 | B2495GS | WASHER Price: $2.49 |
| 12 | 312020GS | HEATSHIELD Price: $31.26 |
| 13 | 312019GS | HEATSHIELD Price: $51.93 |
| 14 | 209775GS | BOLT Price: $4.07 |
| 15 | 316345GS | BATTERY Price: $229.66 |
| 16 | 312014GS | CABLE-BTTRY, RED Price: $18.93 |
| 17 | 312026GS | CABLE-BTTRY, BLACK Price: $17.32 |
| 18 | 311983GS | PLATE-BATTERY Price: $8.15 |
| 19 | 312045GS | WASHER Price: $2.99 |
| 20 | 192569GS | MUFFLER Price: $148.05 |
| 21 | 83083GS | SCREEN Price: $8.49 |
| 22 | 197861GS | NUT Price: $2.59 |
| 23 | 311987GS | SCREW Price: $3.39 |
| 24 | 67989GS | NUT Price: $2.77 |
| 25 | 311985GS | SUPPORT-MUFFLER Price: $14.69 |
| 26 | 313462GS | DECAL Price: $8.36 |
| 27 | 193747GS | NUT Price: $4.12 |
| 28 | 22129GS | WASHER Price: $2.61 |
| 29 | 45771GS | NUT Price: $5.88 |
| 30 | 319451GS | MOUNT-VIBRATION This part replaces 312012GS. Price: $10.58 |
| 31 | 207824GS | SCREW Price: $3.73 |
| 32 | 209428GS | END COVER Price: $25.13 |
| 33 | 312038GS | VOLTAGE REGULATOR Price: $55.57 |
| 34 | 316945GS | TERMINAL BLOCK Price: $7.37 |
| 35 | 312638GS | BOLT Price: $14.43 |
| 36 | 704235 | BOLT Price: $8.89 |
| 37 | 207827GS | BRUSH ASSY Price: $9.35 |
| 38 | 312640GS | BOLT Price: $5.66 |
| 39 | 49226GS | WASHER Price: $1.89 |
| 40 | 708704 | CARRIER-BEARING This part replaces 207838GS. Price: $90.94 |
| 41 | 706533 | STATOR Price: $469.99 |
| 42 | 317336GS | ROTOR Price: $349.99 |
| 43 | 207878GS | NUT Price: $5.79 |
| 44 | 315017GS | HOSE-VAPOR Price: $26.64 |
| 45 | 316602GS | TANK-FUEL Price: $231.20 |
| 46 | 318167GS | CAP-FUEL Price: $27.99 |
| 47 | 312039GS | GASKET Price: $25.49 |
| 48 | 314955GS | CLAMP Price: $4.19 |
| 49 | 312040GS | WIRE Price: $5.54 |
| 50 | 311992GS | GAUGE-FUEL Price: $14.54 |
| 51 | 87680GS | NUT Price: $6.57 |
| 52 | 82981GS | BOLT Price: $1.60 |
| 53 | 312005GS | WASHER Price: $3.09 |
| 54 | 66476GS | SCREW Price: $2.94 |
| 55 | 202997GS | DECAL Price: $12.80 |
| 56 | 209417GS | VALVE-FUEL Price: $7.75 |
| 57 | 791745 | LINE, Fuel Price: $8.97 |
| 58 | 197896GS | SCREW Price: $1.55 |
| 59 | 84010594 | HANDLE This part replaces 47411GS. Price: $32.85 |
| 60 | 22097GS | WASHER Price: $3.05 |
| 61 | 312728GS | DECAL Price: $8.39 |
| 62 | 705920 | DECAL SHEET, WARNINGS This part replaces 208538GS. Price: $29.49 |
| 63 | 319821GS | CAP-WIRE, BLACK Price: $2.99 |
| 64 | 319405GS | CAP-WIRE, RED Price: $2.99 |
| 65 | 317025GS | BARB Price: $6.79 |
| 66 | 209044GS | CARB CANISTER Price: $51.99 |
