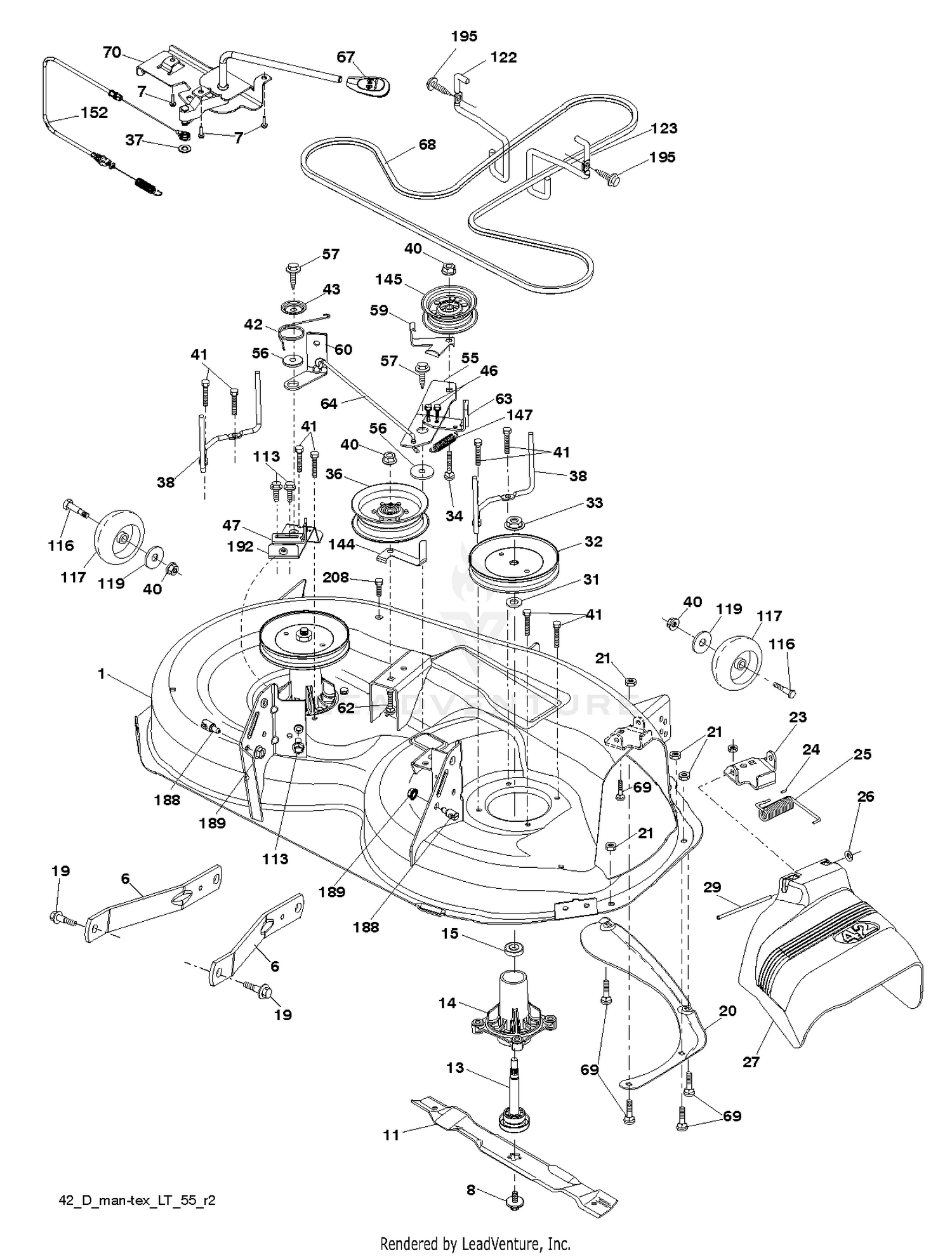

| Ref | Part Number | Description |
|---|
| 1 |
18-1020 |
DISCONTINUED Price: Call Us |
| 1 |
532199606 |
DECK.WELDMENT.42".2GWB.BLACK This part replaces 532196495. Price: $229.99 |
| 2 |
32122-14 |
SCREW-PPH Price: $1.02 |
| 3 |
38-3140 |
DISCONTINUED Price: Call Us |
| 4 |
3290-363 |
PUSH ON SPEED NUT 1/4 Price: $3.58 |
| 5 |
19-3080 |
DISCONTINUED Price: Call Us |
| 6 |
18-4350 |
DISCONTINUED Price: Call Us |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
18-2660 |
DISCONTINUED Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 10 |
19-3040 |
DISCONTINUED Price: Call Us |
| 11 |
19-3550 |
UPPER RADIATOR HOSE Price: $127.37 |
| 12 |
249-10 |
DISCONTINUED Price: Call Us |
| 13 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
37-2300 |
DISCONTINUED Price: Call Us |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
19-3260 |
DISCONTINUED Price: Call Us |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
36-8280 |
DISCONTINUED Price: Call Us |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 23 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
237-49 |
SEALING RING Price: $1.57 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
3252-16 |
DISCONTINUED Price: Call Us |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $27.99 |
| 28 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 29 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
18-2370 |
DISCONTINUED Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 31 |
62-7650 |
GASKET This part replaces 18-2380. Price: $4.28 |
| 32 |
222-8 |
CAP-GAS Price: $65.84 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
36-8290 |
DISCONTINUED Price: Call Us |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
27-0130 |
DISCONTINUED Price: Call Us |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
3-3868 |
DISCONTINUED Price: Call Us |
| 36 |
3-3824 |
DISCONTINUED Price: Call Us |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
3290-319 |
DISCONTINUED Price: Call Us |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
281-5 |
DISCONTINUED Price: Call Us |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 39 |
38-8690 |
DISCONTINUED Price: Call Us |
| 40 |
3234 |
Capscrew Price: Call Us |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
19-3560 |
LOWER RADIATOR HOSE Price: $106.33 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 44 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 46 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
325-20 |
SCREW-HH Price: $6.29 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 48 |
32146-13 |
NUT-HEX Price: $3.49 |
| 49 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 50 |
38-2870 |
DISCONTINUED Price: Call Us |
| 51 |
3217-26 |
NUT-HEX Price: $0.25 |
| 52 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 53 |
37-2240 |
DISCONTINUED Price: Call Us |
| 54 |
32140-42 |
DISCONTINUED Price: Call Us |
| 55 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 55 |
532437110 |
IDLER.ARM.42" Price: $4.99 |
| 56 |
25-9650 |
DISCONTINUED Price: Call Us |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
37-2340 |
DISCONTINUED Price: Call Us |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 58 |
37-2230 |
HEADLIGHT PANEL WA Price: $344.73 |
| 59 |
3290-192 |
DISCONTINUED Price: Call Us |
| 60 |
3290-145 |
SCREW Price: $5.39 |
| 62 |
872110616 |
BOLT Price: $3.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532429636 |
BELT.DECK.DRIVE.42" Price: $32.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 116 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $2.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401971 |
RETURN SPRING Price: $3.99 |
| 152 |
584243501 |
CABLE.MECHANICAL.CLUTCH Price: $22.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 192 |
532197260 |
BRKT.BRAKE.STAND.LH. Price: $8.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
