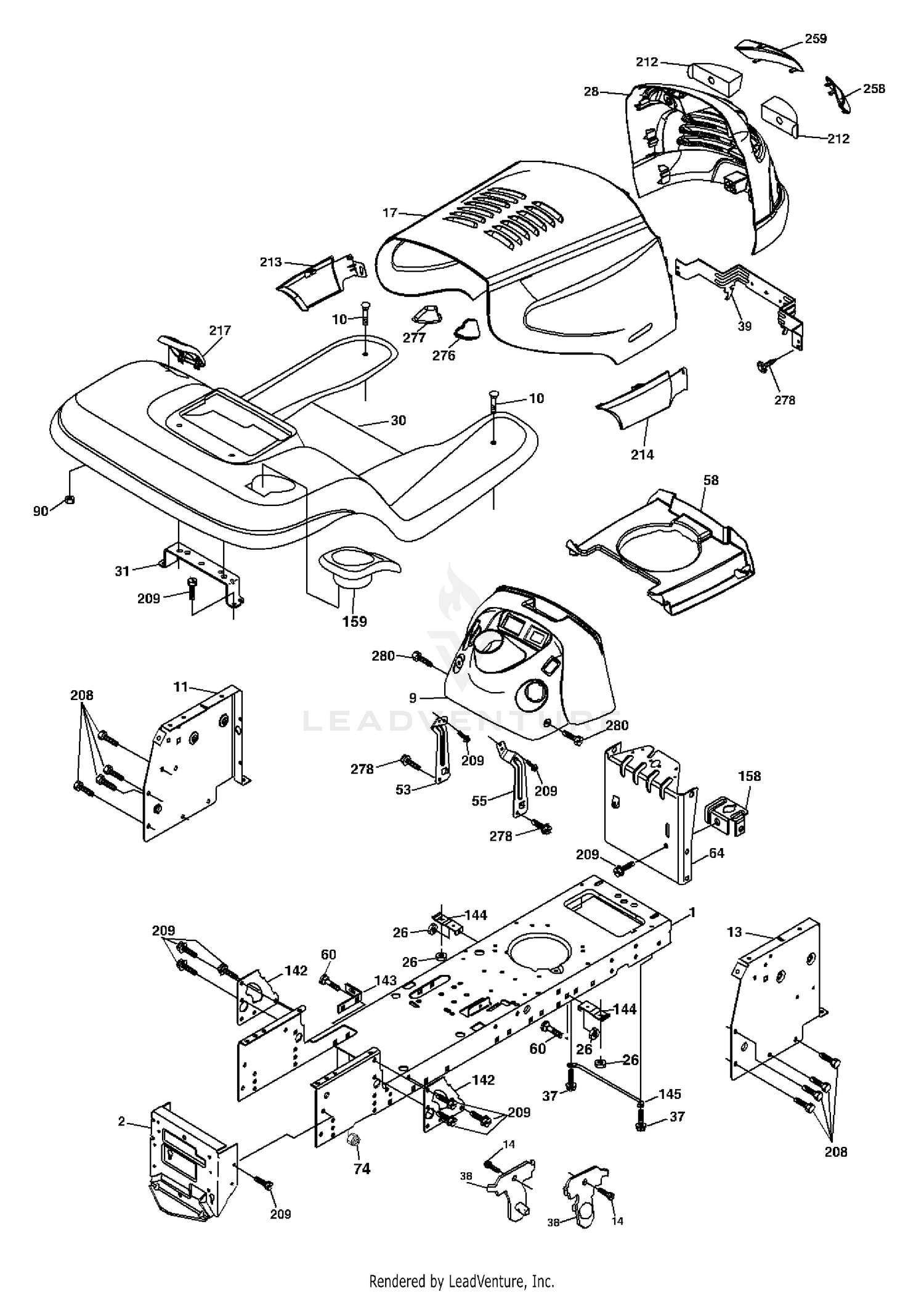

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
631863C |
SERVICE CARB This part replaces 631863. Price: $89.70 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 2 |
631767 |
SPRING This part replaces 632016. Price: $1.25 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
630766 |
SPRING Price: $1.25 |
| 6 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 7 |
630735 |
SPRING Price: $1.25 |
| 9 |
532193641 |
DASH This part replaces 532195420. Price: $47.99 |
| 9 |
630758 |
SHUTTER Price: $1.20 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 13 |
630740 |
O RING Price: $1.49 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 14 |
630737 |
ADJ SCREW Price: $3.95 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 17 |
532188374 |
HOOD.ELITE.HUSQ-STEEL This part replaces 532189977. Price: $89.99 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
532162026 |
PLATE BATTERY Price: $6.99 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 25A |
630904 |
SHAFT & LEV Price: $5.16 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532194806. Price: $219.99 |
| 30 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 53 |
532188373 |
BRACKET DASH LH Price: $7.99 |
| 55 |
532188372 |
BRACKET DASH RH Price: $9.99 |
| 58 |
532184460 |
DUCT AIR Price: $19.99 |
| 60 |
872140606 |
Bolt RDHD Sgnk 3/8-16 unc x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532192404. Price: $8.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532188267 |
INSERT LENS Price: $8.99 |
| 213 |
532188266 |
SKIRT.SIDE.ELITE.LH This part replaces 532189979. Price: $7.99 |
| 214 |
532188265 |
SKIRT.SIDE.ELITE.RH.GREY This part replaces 532189978. Price: $7.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 258 |
532188263 |
LENS ELITE CLEAR RH This part replaces 532189981. Price: $14.99 |
| 259 |
532188264 |
LENS.ELITE.HUSQ.CLEAR.LH This part replaces 532189982. Price: $14.99 |
| 276 |
532189274 |
BUMPER HOOD RH Price: $7.99 |
| 277 |
532189275 |
BUMPER HOOD LH Price: $5.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 280 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
