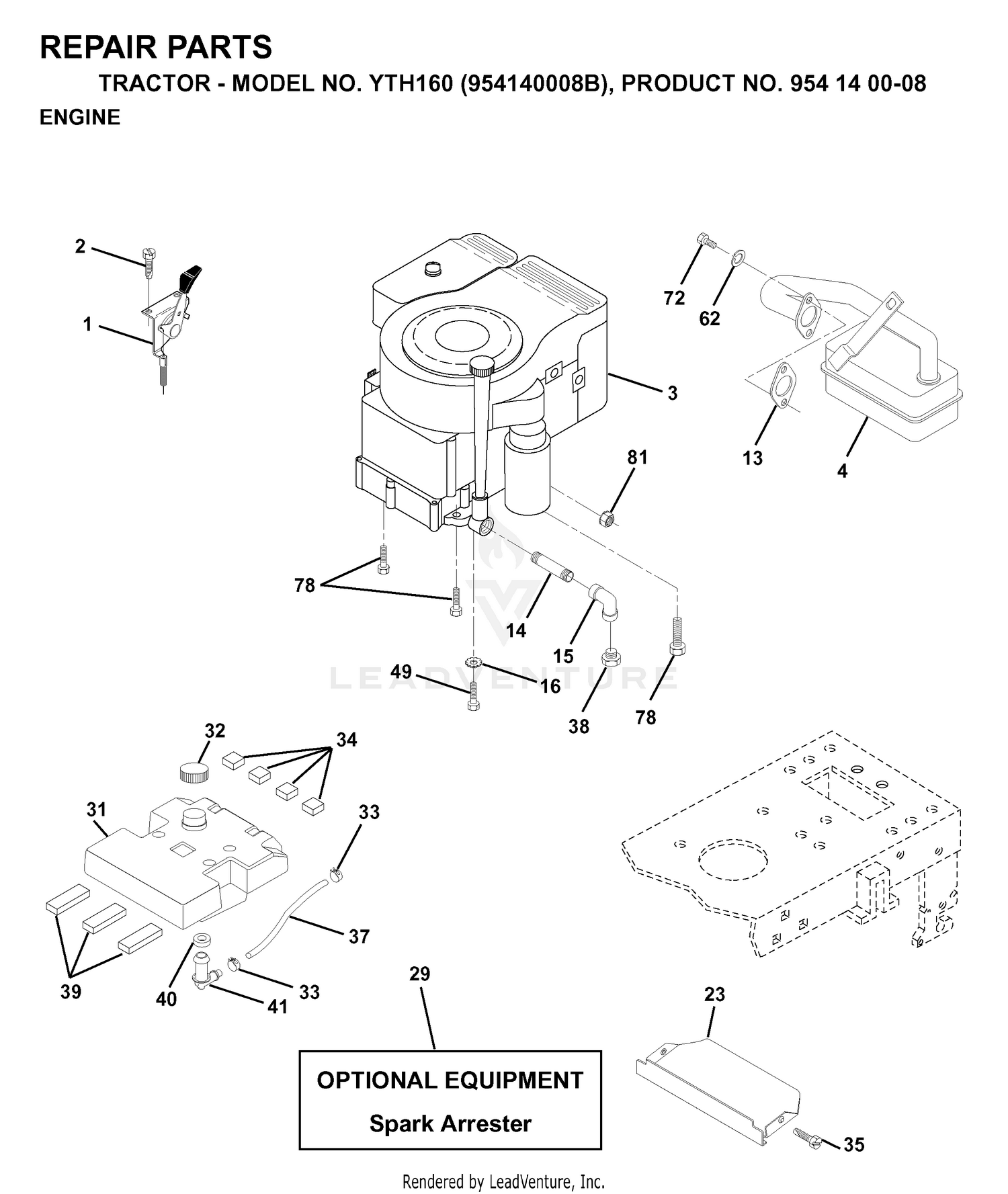

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM This part replaces 115-3479. Price: $1,496.66 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 115-3435. Price: $391.32 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED Price: $8.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532124923. Price: $5.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 49 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
