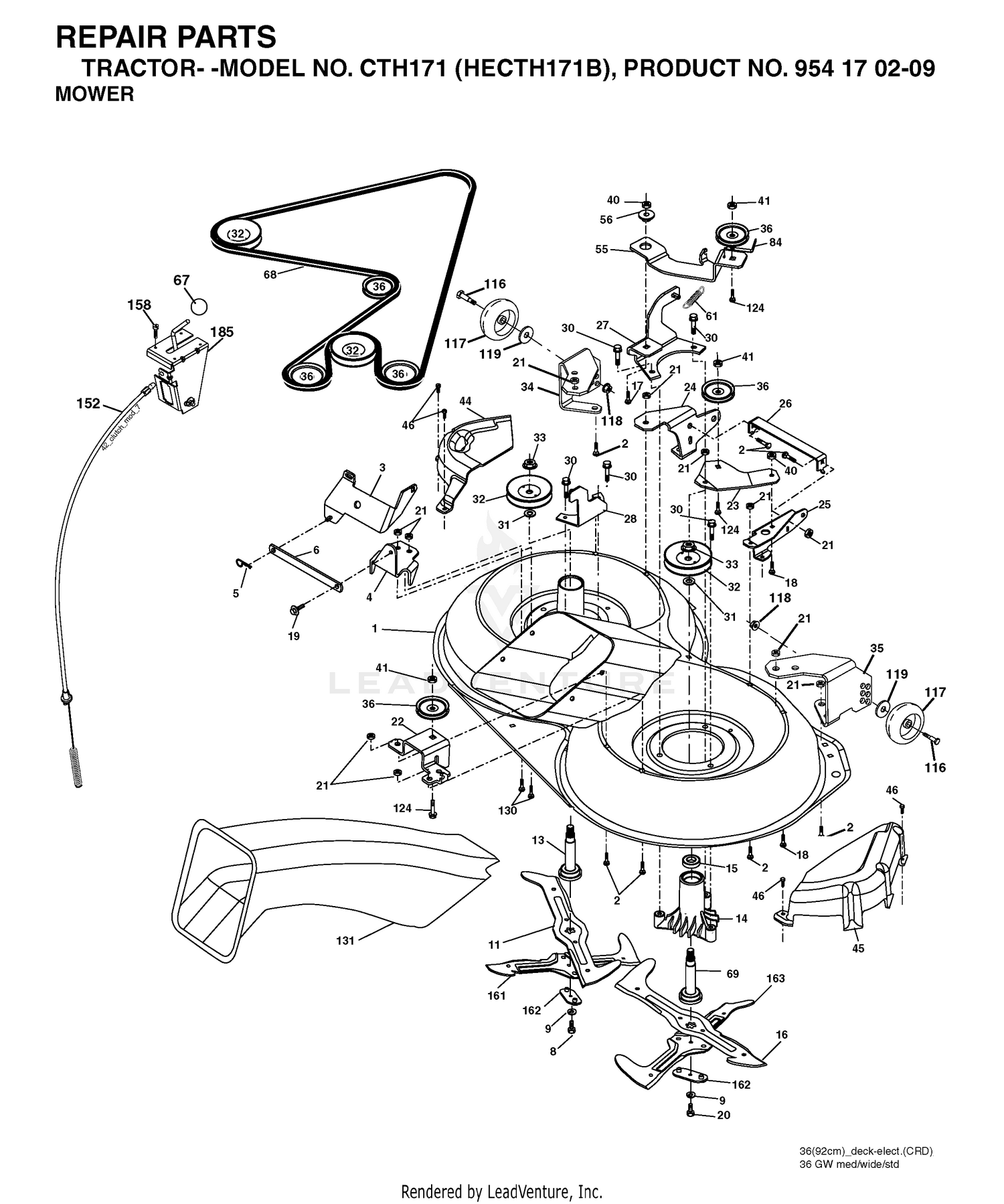

| Ref | Part Number | Description |
|---|
| 1 |
131-1236 |
LEFT DECK ASM Price: $2,679.48 |
| 1 |
532176029 |
DECK.SVCX1.92.CRD This part replaces 532165552. Price: $229.99 |
| 2 |
112-1479 |
SKID-BUMPER, DECK Price: $95.09 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 4 |
131-1233-01 |
PLATE-STIFFENER Price: $87.83 |
| 4 |
532165558 |
BRACKET Price: $14.76 |
| 5 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
132-9421 |
PULLEY-IDLER, FLAT Price: $41.10 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 8 |
108-8076 |
V-BELT, DECK Price: $29.86 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
139-1039 |
LOW DRIVEN SPINDLE ASM This part replaces 119-4776. Price: $589.65 |
| 11 |
32108-103 |
SCREW-FH Price: $0.68 |
| 11 |
532186385 |
NEEDS DESCRIPTION Price: Call Us |
| 12 |
69-9290 |
PAD-BUMPER Price: $9.52 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
104-2250-01 |
SKID-SIDE Price: $116.02 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
131-1244 |
PLATE-SPINDLE Price: $62.97 |
| 16 |
532186386 |
NEEDS DESCRIPTION Price: Call Us |
| 17 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 17 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 18 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 19 |
132-6150-01 |
BRACKET-CASTER Price: $155.45 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
104-3579 |
DECAL-HOC Price: $23.95 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 21 |
120-5587 |
PIN-CLEVIS Price: $10.38 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
104-7524 |
SHIM Price: $5.30 |
| 22 |
532165243 |
BRACKET Price: $17.99 |
| 23 |
132-6157-01 |
BRACKET-FORK Price: $59.18 |
| 23 |
532165446 |
BRACKET Price: $5.99 |
| 24 |
3231-33 |
SCREW-CARR Price: $4.29 |
| 24 |
532165242 |
BRACKET Price: $12.99 |
| 25 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 25 |
532165244 |
BRACKET Price: $22.99 |
| 26 |
106-2047 |
ROD-TENSION Price: $9.83 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532165237. Price: $29.99 |
| 27 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 27 |
532165568 |
BRACKET Price: $22.99 |
| 28 |
104-0858 |
BOLT-SHOULDER Price: $4.69 |
| 28 |
532165567 |
BRACKET Price: $17.99 |
| 29 |
920242 |
WASHER-FLAT This part replaces 9202424. Price: $5.19 |
| 30 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
325-7 |
SCREW-HH Price: $1.53 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
32120-72 |
RING-SNAP Price: $2.09 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 33 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
110-6128 |
IDLER ARM ASM Price: Call Us |
| 34 |
532165239 |
BRACKET Price: $13.30 |
| 35 |
32128-14 |
NUT-HF Price: $0.41 |
| 35 |
532165238 |
BRACKET Price: $13.30 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 36 |
68-0090 |
SCREW-ADJUSTING Price: $7.49 |
| 37 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 38 |
107938 |
SPRING-EXTENSION Price: $9.99 |
| 39 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
9136144 |
SCREW-HWHTF Price: $6.29 |
| 41 |
70-1160 |
WASHER Price: $3.59 |
| 44 |
532175538 |
NEEDS DESCRIPTION Price: Call Us |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD Price: $17.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
532165445 |
ARM IDLER Price: $11.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 61 |
532165945 |
SPRING.TENSION.BELT Price: $11.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
532402008 |
BELT.DRIVE.92CM.CRD.2006 This part replaces 532180217. Price: $69.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 151 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 152 |
532176074 |
Price: Call Us |
| 158 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 161 |
532186387 |
NEEDS DESCRIPTION Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532186388 |
NEEDS DESCRIPTION Price: Call Us |
