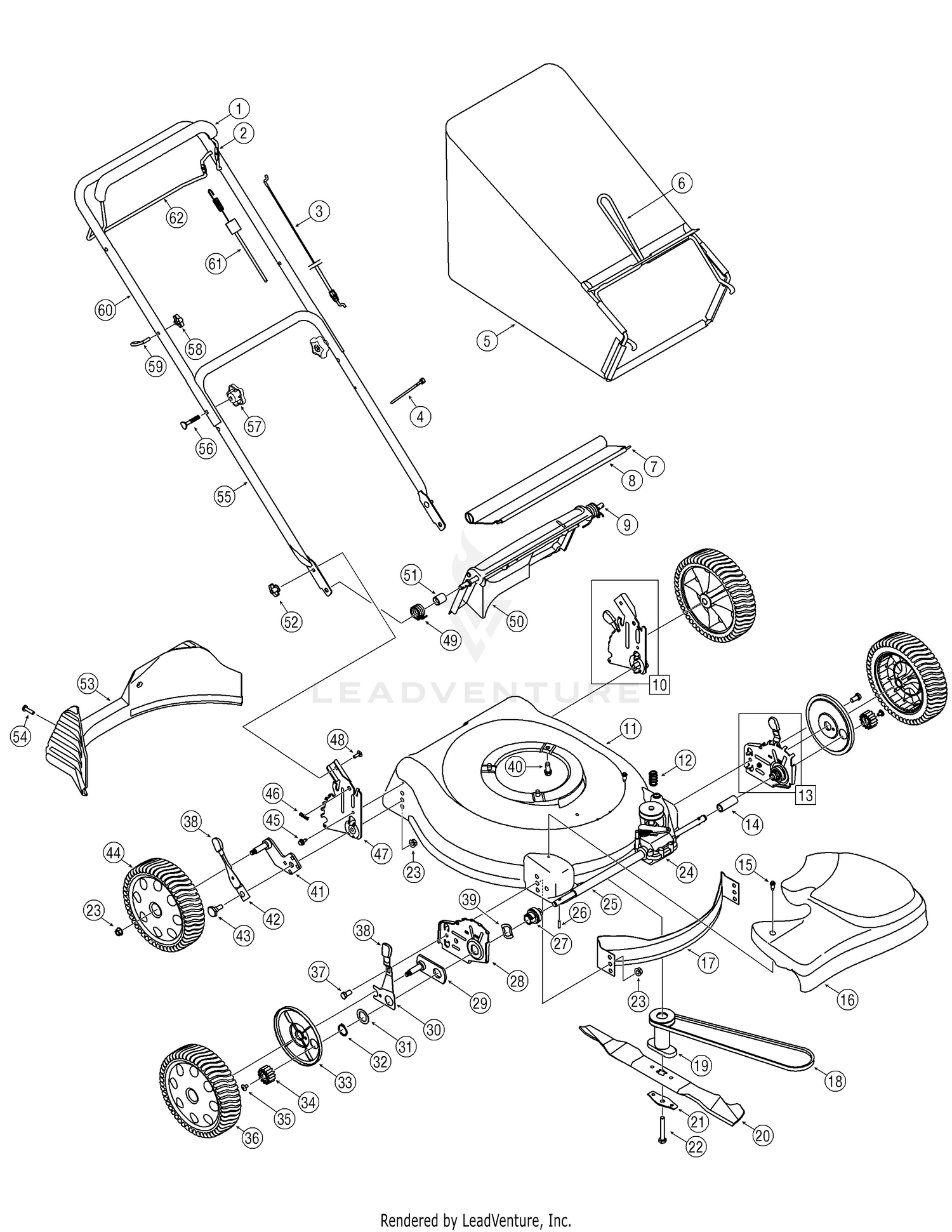

| Ref | Part Number | Description |
|---|
| 1 |
731-04204 |
Blade Control Cover Price: $10.22 |
| 2 |
747-1161A |
Blade Control Price: $10.27 |
| 3 |
946-1132 |
Control Cable - 40.75" This part replaces 746-1132. Price: $20.71 |
| 5 |
964-04007A |
Grass Bag This part replaces 664-04011. Price: $114.46 |
| 6 |
747-04080A |
Grass Bag Frame This part replaces 747-04080. Price: $52.39 |
| 7 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 8 |
731-04998 |
Trailshield Price: $27.86 |
| 9 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 747-04035. Price: |
| 10 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 687-02069. Price: |
| 11 |
787-01277 |
Deck 21" Not Available Price: |
| 12 |
732-1043 |
Belt Tension Compression Spring Price: $4.02 |
| 13 |
987-02193A |
Height Adjustment Ass’y - LH This part replaces 687-02193. Price: $58.00 |
| 13 |
987-02194A |
Height Adjustment Assembly RH This part replaces 687-02194. Price: $58.00 |
| 14 |
750-04595 |
Sleeve Spacer .52 ID x 1.4 Price: $4.02 |
| 15 |
710-1650 |
Shoulder Screw Price: $4.22 |
| 16 |
931-05020A |
Transmission Cover (Black) This part replaces 731-05020A. Price: $61.79 |
| 17 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 18 |
954-0637A |
Drive Belt This part replaces 754-04101. Price: $13.54 |
| 19 |
948-04015A |
Blade Adapter w/ Pulley This part replaces 748-04015A. Price: $60.75 |
| 20 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 21 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 22 |
710-1257 |
Hex Bolt 3/8-24 x 2.5 Price: $7.02 |
| 23 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 24 |
753-05465 |
Transmission Assembly This part replaces 618-04376. Price: $215.70 |
| 25 |
750-04594 |
Sleeve Spacer .52 ID x 8.985 Price: $7.96 |
| 26 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 27 |
982-0015 |
Bearing Assembly This part replaces 682-0015. Price: $29.17 |
| 28 |
787-01298A-0637 |
ADJUSTMENT PLATE (RH) Not Available This part replaces 787-01298. Price: |
| 28 |
787-01299A-0637 |
ADJUSTMENT PLATE (LH) Not Available This part replaces 787-01299. Price: |
| 29 |
687-02044 |
PIVOT PLATE ASSEMBLY Not Available Price: |
| 30 |
732-0706 |
Front Lever - RH Price: $14.83 |
| 30 |
732-0707 |
Front Lever - LH Price: $14.83 |
| 31 |
736-0474 |
Washer, 1.5" OD Price: $5.94 |
| 32 |
716-0102 |
Snap Ring Price: $4.40 |
| 33 |
782-7551A |
Wheel Dust Cap Price: $4.80 |
| 34 |
717-1761 |
Gear, 14T - LH Price: $12.11 |
| 34 |
717-1762 |
Gear, 14T - RH Price: $12.11 |
| 35 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 36 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 37 |
710-0216 |
HH Cap Screw 3/8-16 x 1.00 Price: $3.93 |
| 38 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 39 |
736-0447 |
Wave Washer Price: $3.90 |
| 40 |
710-0654A |
TT Sems Screw 3/8-16 x 1 Price: $3.75 |
| 41 |
987-02070A |
Pivot Arm Assembly - LH This part replaces 687-02070. Price: $18.36 |
| 41 |
987-02071A |
Pivot Arm Assembly - RH This part replaces 687-02071. Price: $18.36 |
| 42 |
732-04175 |
Spring Lever Price: $10.96 |
| 43 |
738-04136 |
SHOULDER SCREW .500 x .434 Not Available Price: |
| 44 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 45 |
710-1652 |
TT Screw 1/4-20 x .625 Price: $3.86 |
| 46 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 47 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 787-01144A. Price: |
| 48 |
710-0703 |
Carriage Bolt Price: $3.66 |
| 49 |
732-04089A |
Torsion Spring -RH Price: $7.00 |
| 49 |
732-04090A |
Torsion Spring -LH Price: $6.66 |
| 50 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 731-04134A. Price: |
| 51 |
950-04162 |
SPACER Not Available This part replaces 750-04162. Price: |
| 52 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 53 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 54 |
710-04371 |
Screw, 1/4-15 x 1.250 Price: $6.01 |
| 55 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928A. Price: $29.67 |
| 56 |
710-1174 |
Carriage Bolt 5/16-18 x 2 Price: $6.28 |
| 57 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 58 |
720-0279 |
ERS Handle Knob Price: $3.93 |
| 59 |
710-1205 |
Eye Bolt Price: $3.53 |
| 60 |
749-1092A |
Upper Handle Price: $42.79 |
