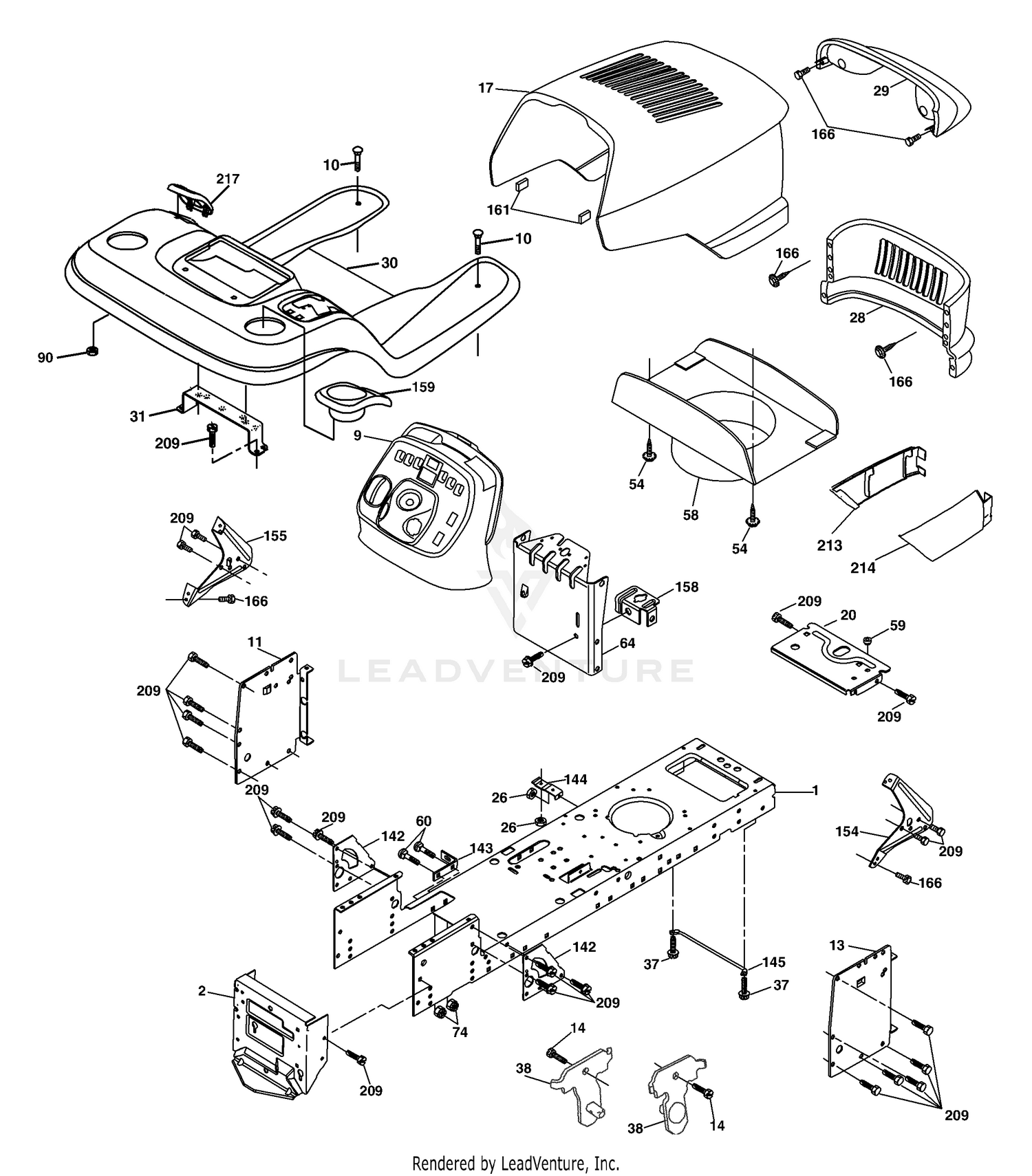

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
69-9650-03 |
SCREEN Price: $60.32 |
| 3 |
110-3269 |
COWL ASM Price: $2,292.89 |
| 4 |
3269-15 |
RIVET-POP Price: $0.54 |
| 5 |
69-9722 |
TRIM-SEAL Price: $25.39 |
| 6 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 7 |
69-3030 |
STRIKE-LATCH Price: $210.27 |
| 8 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 9 |
187934X428 |
Dash Price: Call Us |
| 10 |
69-8690-03 |
SUPPORT-GRILLE Price: $505.57 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
105-9296 |
LATCH-DRAW Price: $71.82 |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 12 |
71-0300 |
FOAM-FRONT COWL, LOWER (LH) Price: $79.38 |
| 12 |
71-0310 |
FOAM-FRONT COWL, LOWER (RH) Price: $79.38 |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 13 |
75-9460-03 |
BRACKET-SEAL, LH Price: $44.25 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
69-9721 |
TRIM-SEAL Price: $24.68 |
| 15 |
69-7150-03 |
LOWER GRILL ASM Price: $373.29 |
| 16 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 17 |
175260X428 |
Hood Price: Call Us |
| 17 |
75-9480-03 |
BRACKET-SEAL, BOTTOM Price: $18.63 |
| 18 |
69-0040 |
STRIP-SEALING, GRILLE Price: $6.59 |
| 19 |
75-9470-03 |
BRACKET-SEAL, RH Price: $44.25 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 22 |
69-9720 |
TRIM-SEAL Price: $17.44 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
175289X428 |
Grille Price: Call Us |
| 29 |
179761 |
Light Asm. Bar Price: Call Us |
| 30 |
179131X428 |
Fender Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
187495 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
