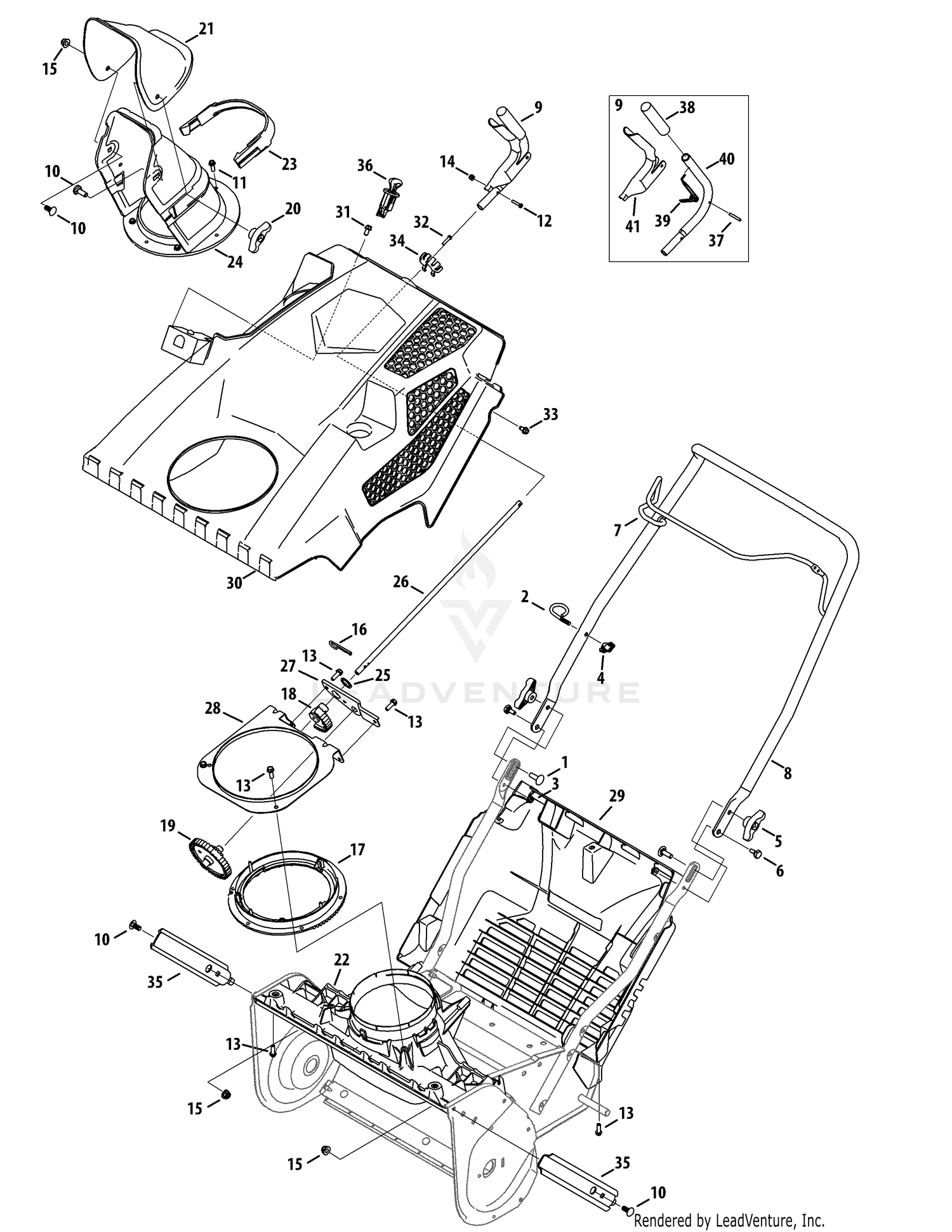

| Ref | Part Number | Description |
|---|
| 1 |
710-04998 |
Carriage Bolt, 5/16-18 x 1.00 Price: $4.89 |
| 2 |
710-05348 |
Eye Bolt, 1/4-20 Price: $3.46 |
| 3 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 4 |
720-0279 |
Knob Handle Price: $3.93 |
| 5 |
720-04122 |
Wing Knob Price: $5.87 |
| 6 |
738-04419A |
Shoulder Screw, .375 x .148 x 1/4-20 Price: $3.61 |
| 7 |
747-05327C-0637 |
Auger Bail Price: $14.70 |
| 8 |
749-04703D-0637 |
UPPER HANDLE (POWDER BLACK) This part replaces 749-04703B-0637. Price: $40.97 |
| 9 |
984-04388 |
Chute Control Assembly Price: $37.83 |
| 10 |
710-0451 |
Carriage Bolt, 5/16-18 x .75 Price: $3.53 |
| 11 |
710-05108 |
Hex Washer Screw, 1/4 x .750 Price: $3.19 |
| 12 |
710-05179A |
Screw, #8-32 x .875 Price: $3.86 |
| 13 |
710-0895 |
Screw, Hi-Lo:1/4-15, 0.75 Price: $5.82 |
| 14 |
712-04035 |
Hex Lock Nut, #8-32 Price: $3.63 |
| 15 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 16 |
714-04003 |
Cotter Pin Price: $7.09 |
| 17 |
917-04844B |
Bevel Gear, 95T Price: $30.99 |
| 18 |
717-04940 |
Spur Gear, 35T Price: $12.11 |
| 19 |
717-04941 |
Bevel Gear, 40T/11T Price: $16.76 |
| 20 |
720-04122 |
Wing Knob, 5/16-18 Price: $5.87 |
| 21 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 22 |
931-07626B |
Chute Adapter Price: $37.25 |
| 23 |
731-07708 |
Chute Plug Price: $11.59 |
| 24 |
931-07753A |
Lower Chute Price: $30.99 |
| 25 |
736-04161 |
Flat Washer, .75 x 1.00 x .06 Price: $6.01 |
| 26 |
747-05299A |
Chute Rod Price: $13.94 |
| 27 |
790-00416 |
Gear Mounting Plate Price: $4.83 |
| 28 |
790-00471 |
Gear Retainer Bracket Price: $18.62 |
| 29 |
731-07725B |
Bottom Cover This part replaces 731-07725. Price: $49.67 |
| 30 |
753-06905D |
TOP COVER KIT (W/SWITCH) This part replaces 753-06905. Price: $85.51 |
| 31 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 32 |
710-04326 |
Hex Washer Screw, #8-16 x .50 Price: $3.37 |
| 33 |
710-0599 |
Hex Screw, 1/4-14 x .500 Price: $3.86 |
| 34 |
790-00459 |
Index Bracket Price: $10.38 |
| 35 |
790-00441-0637 |
Drift Cutter Price: $7.71 |
| 36 |
951-10637 |
Ignition Switch This part replaces 925-04031A. Price: $13.28 |
| 37 |
915-0249 |
Roll Pin Price: $5.94 |
| 38 |
720-04172 |
GRIP Not Available Price: |
| 39 |
732-04864A |
Torsion Spring Price: $6.03 |
| 40 |
749-04827-0637 |
CHUTE TUBE (POWDER BLACK) Not Available Price: |
