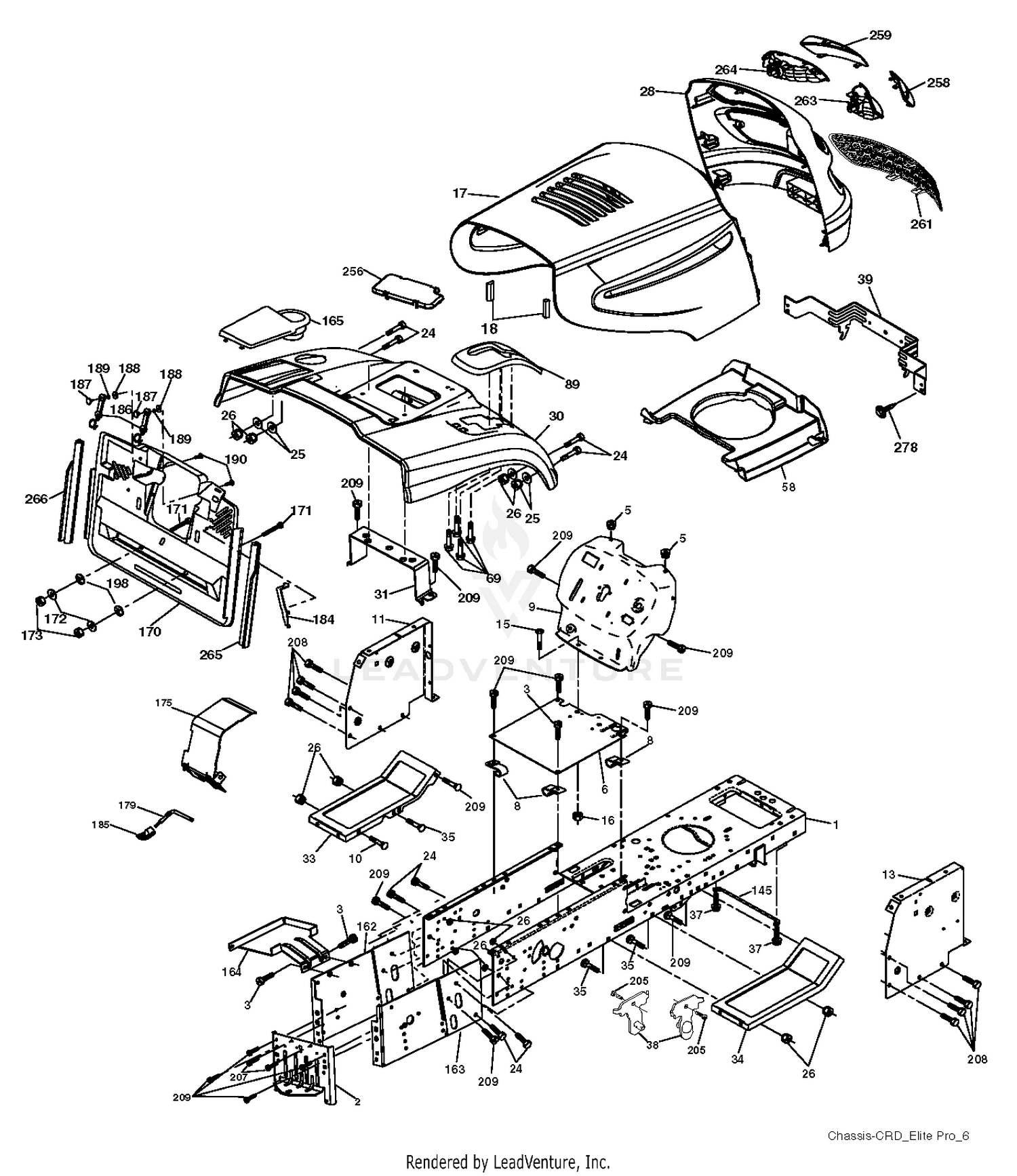

| Ref | Part Number | Description |
|---|
| 1 |
532174620 |
CHASSIS Price: $93.99 |
| 2 |
532180384 |
Drawbar Price: $11.99 |
| 3 |
817000612 |
Screw Hex Wsh Thdr 3/8-16 x 3/4 This part replaces 817060612. Price: $2.99 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
532184419 |
Saddle Price: $8.99 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $2.99 |
| 9 |
532193518 |
Price: Call Us |
| 10 |
115-4105 |
GEAR CASE ASM This part replaces 107-9068. Price: $560.23 |
| 10 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $8.99 |
| 13 |
532179174 |
Price: Call Us |
| 15 |
874180512 |
SCREW Price: $3.99 |
| 16 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 17 |
532442882 |
Price: $63.99 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $3.99 |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 25 |
98-7487 |
PLUG Price: $3.18 |
| 26 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 28 |
532189748 |
Price: $45.99 |
| 30 |
532441530 |
Price: $129.99 |
| 30 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $4.99 |
| 33 |
532441519 |
Price: $18.99 |
| 34 |
532441518 |
Price: $18.99 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 37 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 38 |
532181748 |
Bracket Asm Pivot Mower Rear Price: $1.99 |
| 39 |
532407807 |
BRACKET PIVOT Price: $14.99 |
| 40 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 58 |
532184322 |
Price: $13.99 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 69 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 89 |
532197366 |
Console Crd Auto Price: $8.99 |
| 90 |
107-9071 |
SCREW Price: $0.36 |
| 100 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 145 |
532409167 |
ROD.PIVOT.HOOD Price: $8.99 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 162 |
532180382 |
Bracket Exten Chassis Lh CRD Price: $13.99 |
| 163 |
532180383 |
Bracket Exten Chassis Rh CRD Price: $13.99 |
| 164 |
532165605 |
SUPPORT Price: $51.99 |
| 165 |
532181356 |
Cover Battery Price: $4.99 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 170 |
532199488 |
Backplate CRD Price: Call Us |
| 171 |
872140620 |
BOLT Price: $3.99 |
| 172 |
819132012 |
Washer 13/32 X 1-1/4 X 12 Ga This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT ** Price: $3.99 |
| 175 |
532188203 |
Door Trap Price: $5.99 |
| 179 |
532188202 |
Rod Pivot FBI CRD Price: $2.99 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 184 |
532174662 |
Bracket Actuator Bagger CRD Price: $2.99 |
| 185 |
532441416 |
Price: $4.99 |
| 186 |
532160793 |
LATCH ASSY Price: $7.99 |
| 187 |
532002029 |
NUT.WELD.#10-24 This part replaces 532125004. Price: $2.69 |
| 188 |
819061216 |
WASHER Price: $2.69 |
| 189 |
810071000 |
LOCKWASHER Price: $2.99 |
| 190 |
871081010 |
SCREW Price: $3.49 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 205 |
817490608 |
SCREW LT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 220 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 256 |
532181361 |
Cover Fender Rack Price: $3.99 |
| 258 |
532189755 |
Lens Grille RH Price: $8.99 |
| 259 |
532189754 |
Lens Grille LH Price: $2.99 |
| 261 |
532189753 |
Insert Grille Price: $4.99 |
| 263 |
532183833 |
BEZEL GRILL RH Price: $14.99 |
| 264 |
532183832 |
BEZEL GRILL LH Price: $14.99 |
| 265 |
532185704 |
Seal Side RH Bagger Price: $8.99 |
| 266 |
532185703 |
Seal Side LH Bagger Price: $8.99 |
| 278 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
