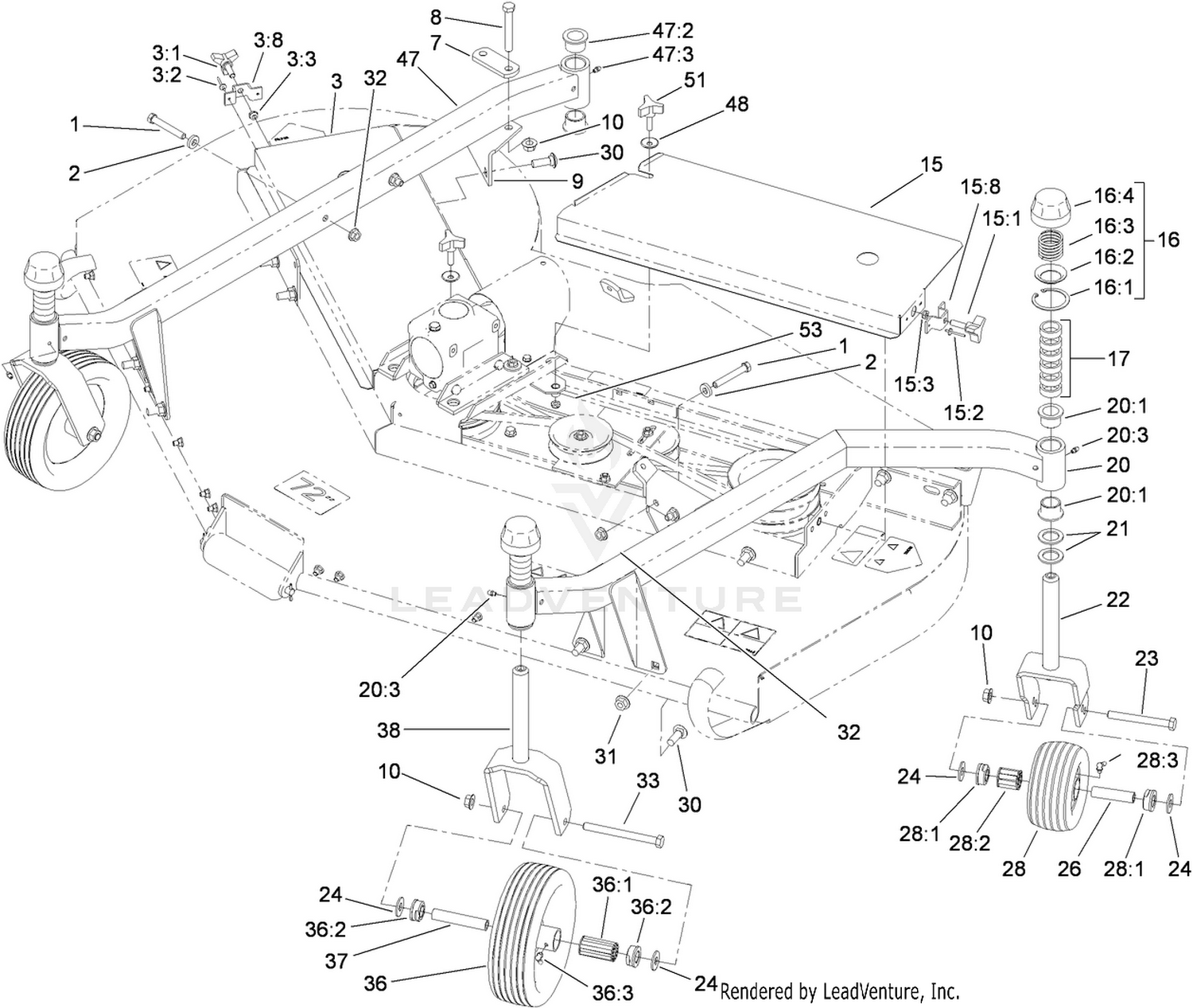

| Ref | Part Number | Description |
|---|
| 1 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 2 |
66-6480 |
WASHER Price: $1.29 |
| 3 |
14-5869 |
RH COVER ASM Price: $181.78 |
| 7 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM Price: $36.10 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 9 |
39-3340-01 |
BRACKET-ARM CLAMP Price: $101.90 |
| 10 |
32128-23 |
NUT-HF Price: $1.51 |
| 15 |
14-5879 |
LH COVER ASM Price: $181.78 |
| 16 |
92-8862 |
HOC CAP ASM Price: $71.16 |
| 17 |
63-0070 |
SPACER Price: $1.82 |
| 20 |
38-9420 |
LH CASTOR ARM ASM Price: $993.47 |
| 21 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 22 |
75-9680-01 |
FORK-CASTOR Price: $151.01 |
| 23 |
325-18 |
SCREW-HH Price: $3.19 |
| 24 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 26 |
63-1770 |
SPANNER Price: $17.94 |
| 28 |
63-8400 |
CASTER WHEEL ASM Price: $75.13 |
| 30 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 31 |
32128-49 |
NUT-HHF Price: $1.04 |
| 32 |
32128-42 |
NUT-HF Price: $0.98 |
| 33 |
325-22 |
SCREW-HH Price: $4.26 |
| 37 |
62-4340 |
SPANNER Price: $16.93 |
| 38 |
26-1530-01 |
FORK-CASTOR Price: $178.41 |
| 47 |
38-9370 |
RH CASTOR ARM ASM Price: $946.82 |
| 48 |
66-6310 |
WASHER-CUP Price: $3.32 |
| 51 |
27-4570 |
KNOB-SEAT Price: $25.38 |
