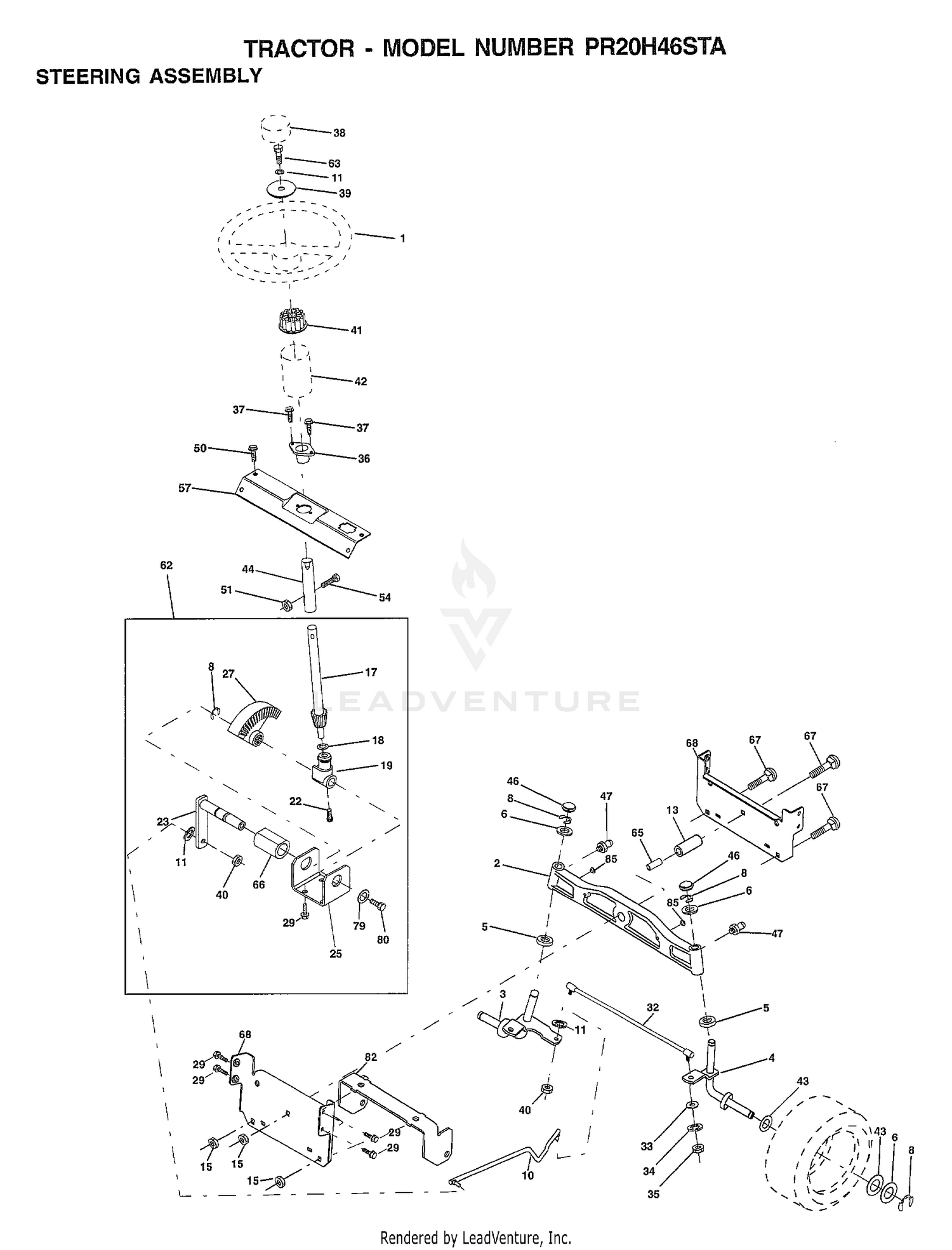

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
WHEEL.STEERING Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 2 |
165854 |
AXLE ASSY Price: Call Us |
| 3 |
169840 |
SPINDLE ASM Price: Call Us |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 4 |
169839 |
SPINDLE ASM Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 6 |
121748X |
WASHER Price: Call Us |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
12000029 |
RING Price: Call Us |
| 8 |
94-5808 |
DISCONTINUED Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
169832 |
LINK DRAG Price: Call Us |
| 10 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 13 |
136518 |
SPACER BEARING Price: Call Us |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 15 |
145212 |
NUT.HXFLG.LOCK. Price: Call Us |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
156546 |
SHAFT ASM STEERIN Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
160395 |
SUPPORT.SHAFT.STEER Price: Call Us |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
165857 |
SCREW.HX.WSH.HD Price: Call Us |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
165851 |
SHAFT.ASM.PITMAN Price: Call Us |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
154406 |
BRKT-STEERING Price: Call Us |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
17060612 |
SCREW Price: Call Us |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 30 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
171888 |
ROD TIE Price: Call Us |
| 32 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 33 |
19111216 |
WASHER M Price: Call Us |
| 33 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 34 |
10040500 |
LOCKWASHER Price: Call Us |
| 34 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 35 |
73540500 |
CROWNLOCK NUT Price: Call Us |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
155104 |
BUSHING.STR.623 Price: Call Us |
| 37 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 38 |
159946X428 |
INSERT.CAP.STRG.WH Price: Call Us |
| 39 |
19132411 |
WASHER Price: Call Us |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 41 |
159945 |
ADAPTOR.WHEEL.STG Price: Call Us |
| 41 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 42 |
170768X428 |
BOOT STEERING Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
153720 |
EXT SHAFT STEERIN Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 50 |
17670412 |
SCREW Price: Call Us |
| 51 |
73800500 |
NUT Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 57 |
140172 |
SUPPORT SHAFT STR Price: Call Us |
| 62 |
167902 |
KIT.STEER.ASM Price: Call Us |
| 63 |
74780616 |
BOLT Price: Call Us |
| 67 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 68 |
169827 |
BRACE AXLE Price: Call Us |
| 79 |
19132012 |
WASHER Price: Call Us |
| 80 |
74950612 |
BOLT.HX.NYLON3/8-16X3/ Price: Call Us |
| 82 |
169835 |
BRKT SUSP CHASSIS FRT Price: Call Us |
