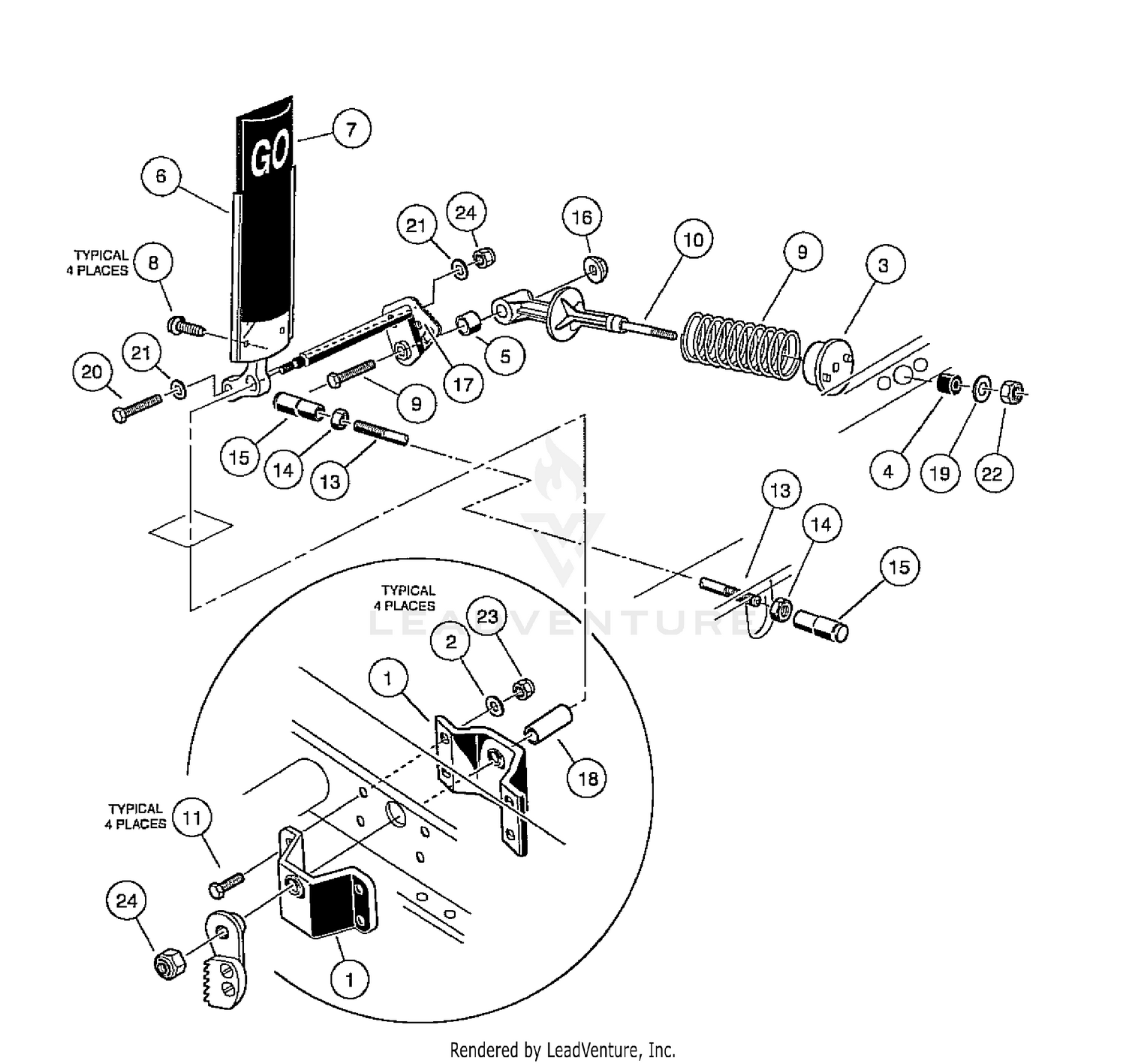

| Ref | Part Number | Description |
|---|
| 1 |
353-512 |
PLUG Price: $15.26 |
| 1 |
603000126 |
ACCEL BRKT & BEARING ASSY Price: $34.99 |
| 2 |
21-8620-03 |
DISCONTINUED This part replaces 21-8620. Price: Call Us |
| 2 |
603000194 |
WASHER Price: $1.99 |
| 3 |
233-21 |
KNOB Price: $12.99 |
| 3 |
603000392 |
CUP, SPRING Price: $6.99 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 4 |
603000393 |
BUMPER, SPRING RETURN Price: $3.99 |
| 5 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 5 |
603000395 |
BEARING, PIVOT SUPPORT Price: $11.99 |
| 7 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 7 |
603000192 |
PAD , ACCL PEDAL Price: $7.99 |
| 8 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 8 |
603000081 |
SCREW TYPE AB SHT MTL Price: $1.99 |
| 9 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 9 |
603000490 |
SPRING, ACCELERATOR RETURN Price: $22.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
603000499 |
RETAINER, SPRING Price: $24.99 |
| 11 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 11 |
603000528 |
SCREW, 1/4-20 X 1.125 HEX CAP Price: $1.99 |
| 12 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 12 |
603003199 |
SCREW, 1/4-20 X 1.500 FLANGE This part replaces 603002205. Price: $3.99 |
| 13 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 14 |
603000119 |
NUT Price: $1.99 |
| 15 |
603000129 |
JOINT, BALL Price: $8.99 |
| 15 |
63-8990 |
HOSE-HYD Price: $57.67 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 16 |
603000094 |
LOCKNUT, 1/4-28 NYLON INSERT This part replaces 603000617. Price: $1.99 |
| 17 |
63-9260 |
MANIFOLD VALVE ASM Price: $136.31 |
| 18 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 18 |
603002238 |
SPACER ASSEMBLY Price: $7.99 |
| 19 |
603000065 |
WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 19 |
92-7833 |
HOSE ASM Price: $59.90 |
| 20 |
603000068 |
SCREW, 3/8-16 X 1.5 HX HD CAP Price: $2.99 |
| 20 |
92-5512 |
FITTING-STR This part replaces 95-8849. Price: $21.46 |
| 21 |
100-6586 |
CYLINDER-HYD, 2.5 INCH Price: $858.08 |
| 21 |
603000055 |
WASHER, 3/8 FLAT Price: $1.99 |
| 22 |
603000078 |
LOCKNUT, 5/16-18 NYLON INSERT Price: $1.99 |
| 22 |
92-7834 |
HOSE-HYD Price: $11.20 |
| 23 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 23 |
603000089 |
LOCKNUT, 1/4-20 NYLON INSERT Price: $1.99 |
| 24 |
340-110 |
FITTING-SWIVEL, 90 DEG Price: $49.98 |
| 25 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 26 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 27 |
111332 |
SWITCH This part replaces 21-8590. Price: $10.99 |
| 28 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 29 |
237-22 |
O-RING Price: $2.43 |
| 30 |
237-30 |
O-RING Price: $2.50 |
| 31 |
237-42 |
O-RING Price: $2.78 |
