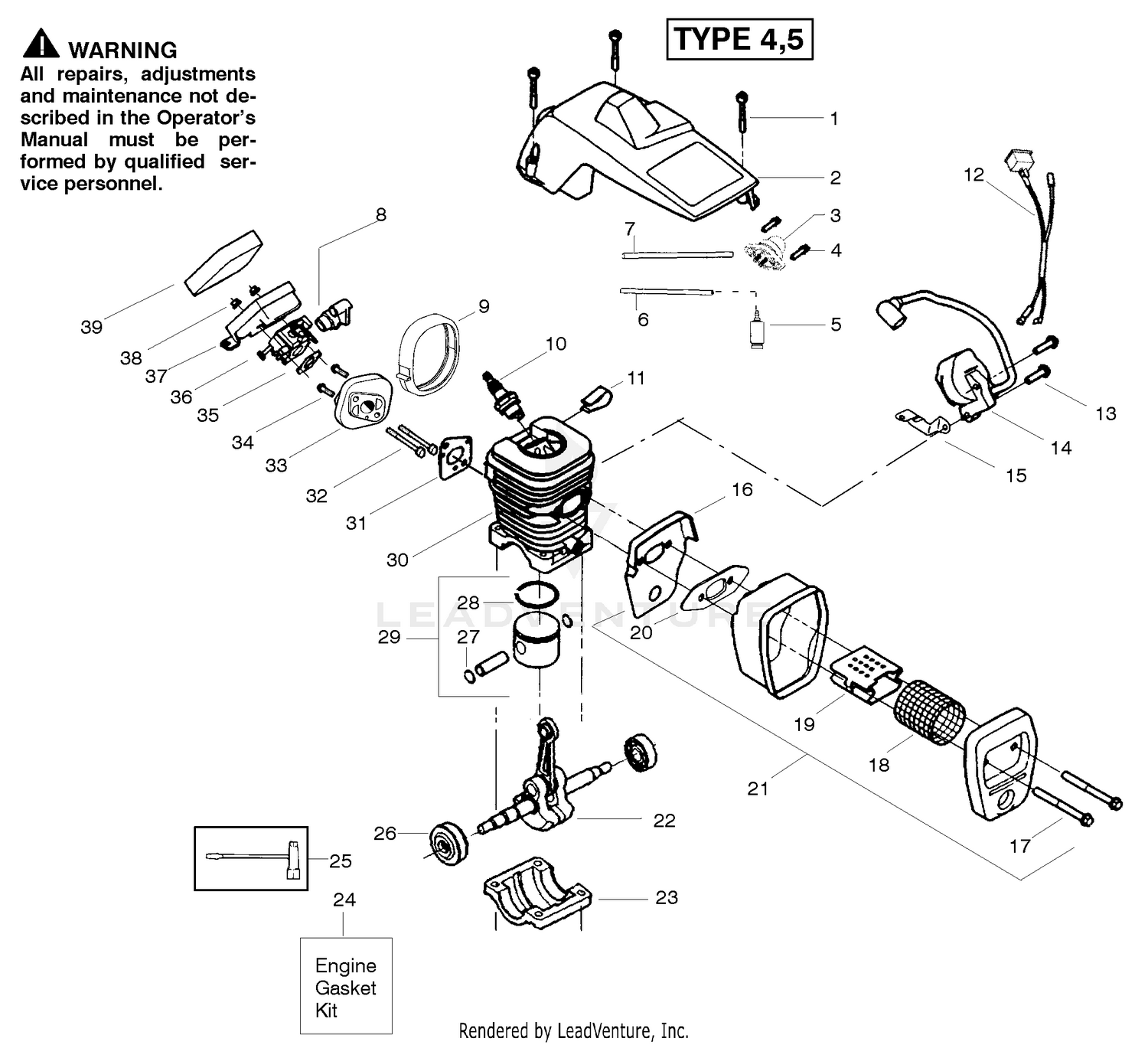

| Ref | Part Number | Description |
|---|
| 1 |
31-7850 |
DISCONTINUED Price: Call Us |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 2 |
530055638 |
Shield-Cylinder Price: $6.99 |
| 3 |
31-7900 |
DISCONTINUED Price: Call Us |
| 3 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 4 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 4 |
530015780 |
Screw Price: $1.99 |
| 5 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 5 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 6 |
31-7860 |
DISCONTINUED Price: Call Us |
| 6 |
530069247 |
Kit-Line Purge/Carb. (Small Dia) Price: $3.99 |
| 7 |
31-6550 |
DISCONTINUE Price: Call Us |
| 7 |
530069216 |
Kit-Line Purge/Tank (large line) Price: $3.99 |
| 8 |
31-7840 |
DISCONTINUED Price: Call Us |
| 8 |
530035526 |
Grommet-Carb Adjust. Price: Call Us |
| 9 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 10 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 11 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 13 |
530015814 |
Screw Price: $1.99 |
| 14 |
530039198 |
Module-Ignition Price: $29.99 |
| 15 |
530047442 |
Strap-Ground Price: $1.99 |
| 16 |
530049870 |
Back Plate-Muffler Price: $3.99 |
| 17 |
530016132 |
Screw Price: $1.99 |
| 18 |
530036103 |
Screen-Spark Price: Call Us |
| 19 |
530037813 |
Diffuser-Muffler Price: $1.99 |
| 20 |
530069608 |
Gasket-Muffler(kit) Price: $5.99 |
| 22 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 23 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 25 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 26 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 27 |
530015697 |
Retainer - Piston Pin Price: $1.99 |
| 28 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 30 |
530012552 |
Cylinder This part replaces 530071411. Price: $34.99 |
| 31 |
530069608 |
Gasket-Adapter(kit) Price: $5.99 |
| 32 |
530016187 |
Screw Price: $1.99 |
| 33 |
530049700 |
Adapter-Carb. Price: $3.99 |
| 34 |
530016386 |
Screw Price: $5.99 |
| 35 |
530069608 |
Carb. Gasket(kit) Price: $5.99 |
| 36 |
530071621 |
Kit-Carburetor (WT-625) Price: $54.99 |
| 37 |
530047604 |
Housing-Air Filter Price: $1.99 |
| 38 |
530016101 |
Nut Price: $1.99 |
| 39 |
530037793 |
Air Filter - Foam Price: $1.99 |
