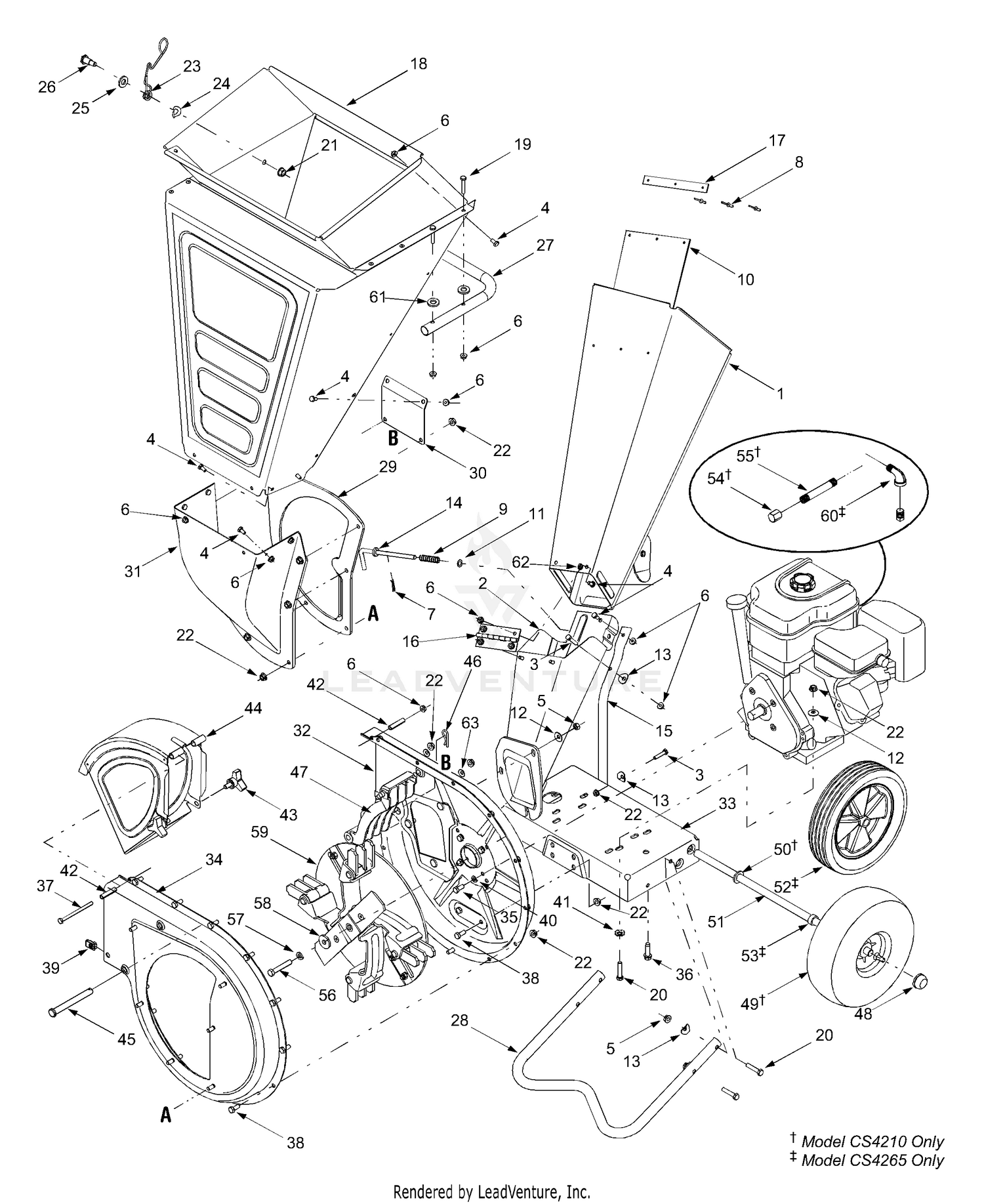

| Ref | Part Number | Description |
|---|
| 1 |
981-04006 |
CHUTE ASSEMBLY (UPPER) This part replaces 681-04006. Price: $172.81 |
| 2 |
681-04007 |
Lower Chipper Chute Assembly Price: $116.81 |
| 3 |
710-0106 |
Hex Cap Screw, 1/4-20 x 1.25 Price: $3.66 |
| 4 |
710-3013 |
Hex Cap Screw, 1/4-20 x.5 Price: $4.02 |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 6 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 7 |
714-0104 |
Cotter Pin Price: $3.90 |
| 8 |
728-0175 |
Pop Rivet Price: $4.04 |
| 9 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306A. Price: $7.69 |
| 10 |
735-0249A |
Chute Flap Price: $21.78 |
| 11 |
736-0140 |
Flat Washer Price: $6.20 |
| 12 |
736-0242 |
Bell Washer.340 ID x.872 OD Price: $3.75 |
| 13 |
736-0451 |
Washer,.320 ID x.93 OD Price: $3.75 |
| 14 |
947-04163 |
LOCK ROD This part replaces 747-04163. Price: $12.87 |
| 15 |
749-1004 |
Chipper Chute Support Price: $38.35 |
| 16 |
981-04032 |
Chipper Chute Hinge This part replaces 781-04032. Price: $11.28 |
| 17 |
781-0633 |
Chute Flap Strip Price: $9.09 |
| 18 |
981-04011 |
SHREDDER HOPPER ASSEMBLY This part replaces 681-04011. Price: $295.52 |
| 19 |
710-0809 |
Hex Cap Screw, 1/4-20 x 1.250 Price: $6.37 |
| 20 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 21 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 22 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 23 |
932-04167 |
TORSION SPRING This part replaces 732-04167. Price: $9.41 |
| 24 |
736-0182 |
Spring Washer,.50 x 1.0 x.022 Price: $3.90 |
| 25 |
736-0326 |
Flat Washer,.50 x 1.0 x.0125 Price: $3.89 |
| 26 |
738-0430 |
Shoulder Screw, 3/8-16,.50 x.685 Price: $10.55 |
| 27 |
749-04103-0637 |
HOPPER HANDLE This part replaces 749-04103. Price: $37.08 |
| 28 |
749-04104-0637 |
TUBE-SUPPORT This part replaces 749-04104. Price: $46.41 |
| 29 |
781-04007 |
Shredder Plate Price: $35.45 |
| 30 |
781-04027 |
Hopper Support Bracket Price: $15.94 |
| 31 |
781-04033 |
Inlet Guide Price: $71.52 |
| 32 |
681-0117 |
Inner Flail Housing Assembly Price: $131.75 |
| 34 |
681-04002 |
Outer Flail Housing Assembly Price: $124.00 |
| 35 |
710-0157 |
Hex Cap Screw, 5/16-24 x.75 Price: $3.90 |
| 36 |
710-0502A |
Hex Sems Screw, 3/8-16 x 1.25 Price: $5.71 |
| 37 |
710-0825 |
Hex Cap Screw, 1/4-20 x 3.75 Price: $4.73 |
| 38 |
710-3025 |
Hex Cap Screw, 5/16-18 x.625 Price: $3.64 |
| 39 |
726-0211 |
U-Nut, 5/16-18 Price: $3.90 |
| 40 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 41 |
736-0170 |
SPECIAL WASHER Not Available Price: |
| 42 |
950-0793 |
SPACER-.260 x .3 This part replaces 750-0793. Price: $3.15 |
| 43 |
720-0170 |
THREE ARM KNOB This part replaces 681-0048. Price: $9.85 |
| 44 |
681-0094A |
DISCHARGE CHUTE ASSEMBLY This part replaces 681-0094. Price: $119.10 |
| 45 |
911-0835 |
CLEVIS PIN This part replaces 711-0835. Price: $11.12 |
| 46 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 47 |
719-04070 |
Shredder Screen Price: $44.81 |
| 48 |
726-0214 |
Push Cap, 5/8 Price: $9.11 |
| 56 |
710-1254 |
SCREW 3/8-24X2.25 GR8 Price: $6.26 |
| 57 |
736-0217 |
Lock Washer, 3/8 Price: $3.86 |
| 58 |
736-0247 |
Flat Washer,.406 x 1.25 Price: $8.82 |
| 61 |
736-0173 |
Flat Washer,.28 x.74 x.063 Price: $3.76 |
| 62 |
726-0233 |
Push Nut,.25ID x.50OD Price: $3.93 |
| 63 |
726-0201 |
Speed Nut,.3125ID Price: $6.01 |
