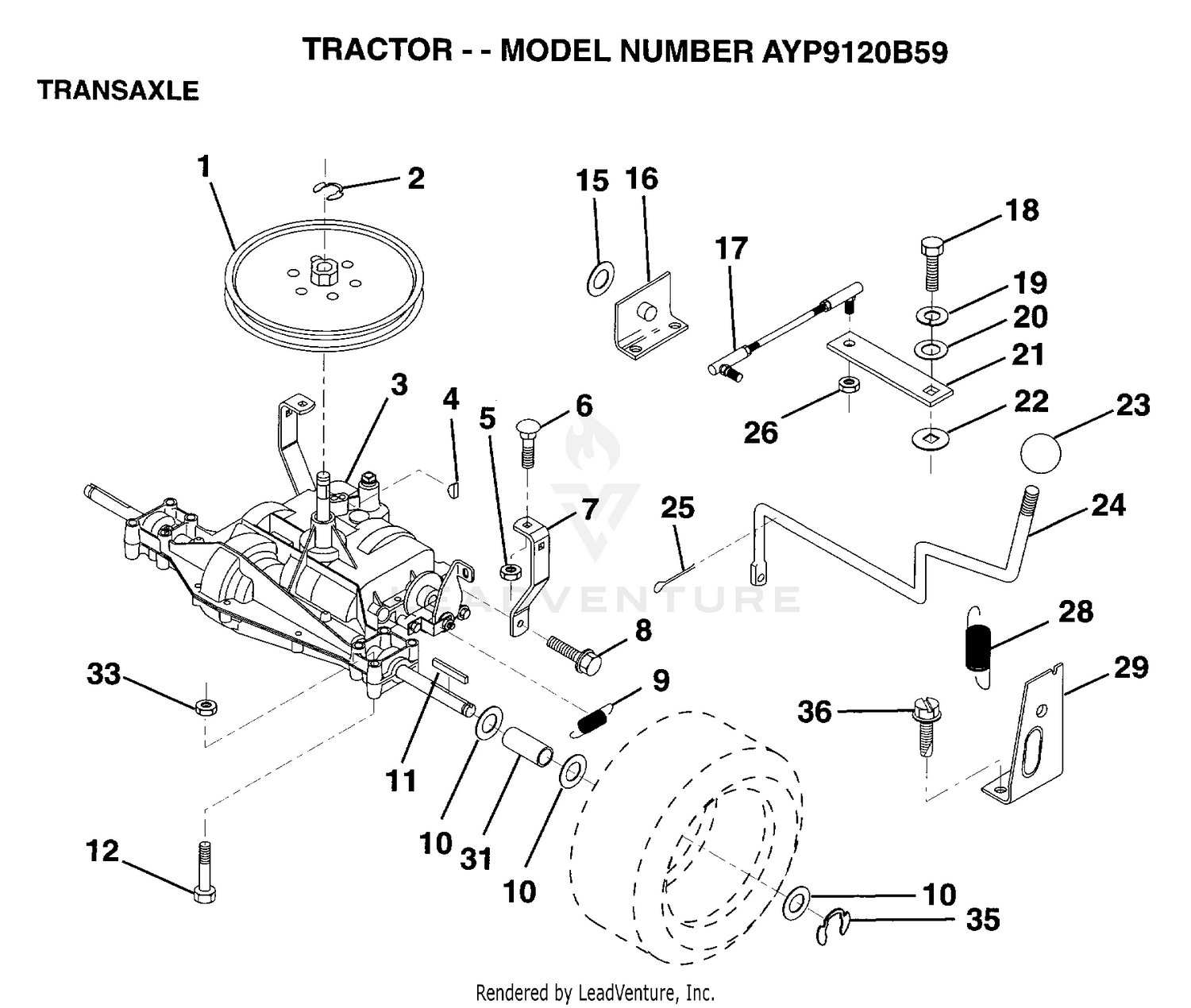

| Ref | Part Number | Description |
|---|
| 1 |
123385X |
PULLEY Price: Call Us |
| 1 |
99-6905-03 |
NO. 5 LIFT ARM ASM Price: $807.57 |
| 2 |
12000028 |
SUB= 2267J Price: Call Us |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 3 |
142594 |
SUB= 918142594 Price: Call Us |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
2228M |
SUB= 2228M1 Price: Call Us |
| 4 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 5 |
104-1438-03 |
STEP-PERFORATED Price: $33.53 |
| 5 |
73680500 |
SUB= 73690500 Price: Call Us |
| 6 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 6 |
72140506 |
BOLT Price: Call Us |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 8 |
17490512 |
SCREW Price: Call Us |
| 8 |
99-6941-03 |
PIVOT ROD ASM Price: $92.29 |
| 9 |
110422X |
SUB= 146682 Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
121749X |
WASHER Price: Call Us |
| 10 |
98-3929 |
SPRING-TORSION Price: $23.85 |
| 11 |
123583X |
SQUARE KEY Price: Call Us |
| 11 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 14 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 15 |
19171616 |
WASHER Price: Call Us |
| 15 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 16 |
282-4 |
SHACKLE Price: $32.98 |
| 17 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 19 |
10040400 |
LOCKWASHER Price: Call Us |
| 19 |
256-287 |
BUSHING Price: $1.76 |
| 20 |
104-1413 |
CHAIN-LINK, STRAIGHT Price: $10.05 |
| 20 |
19091210 |
WASHER LT Price: Call Us |
| 21 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 21 |
123484X |
ARM SHIFT Price: Call Us |
| 22 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 22 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 23 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 23 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 25 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 26 |
73810500 |
NUT.LOCK.5/16-24 Price: Call Us |
| 26 |
99-5610 |
PIN Price: $40.16 |
| 27 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 28 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 29 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 30 |
106-5952-03 |
DISCONTINUED Price: Call Us |
| 31 |
106-7067-03 |
NO. 4 LIFT ARM ASM Price: $692.33 |
| 31 |
109502X |
SPACER LT Price: Call Us |
| 32 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 33 |
106-9004 |
BUMPER Price: $6.35 |
| 33 |
73680600 |
SUB= 73690600 Price: Call Us |
| 34 |
11050500 |
LOCKWASHER.5/16.E Price: Call Us |
| 34 |
99-6901-03 |
DISCONTINUED Price: Call Us |
| 35 |
12000001 |
E-RING LT Price: Call Us |
| 35 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 36 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 39 |
32128-21 |
NUT-HF Price: $0.39 |
| 40 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 41 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 42 |
98-3936 |
LANYARD Price: $23.28 |
