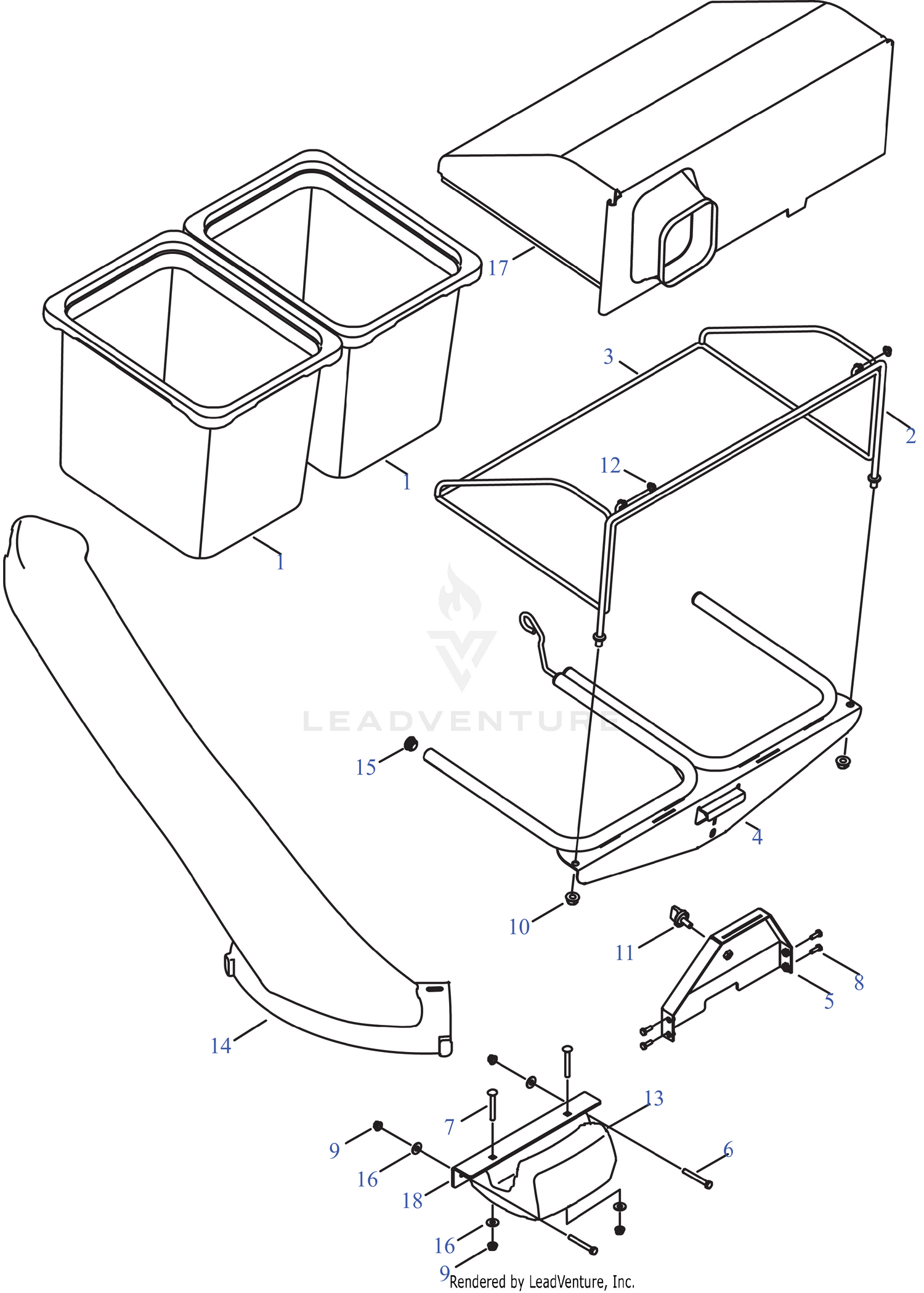

| Ref | Part Number | Description |
|---|
| 1 |
964-04167 |
BAG ASSEMBLY Price: $34.93 |
| 4 |
683-04775A-0637 |
SUPPORT ASSEMBLY (POWDER BLACK) This part replaces 683-04775-0637. Price: $186.31 |
| 5 |
983-05137 |
BAG SUPPORT BRACKET Price: $95.63 |
| 6 |
710-0378 |
SCREW 5/16-18 x 2.5 GR 5 Price: $4.09 |
| 7 |
710-0572 |
BOLT 5/16-18 x 2.50 GR1 Price: $3.75 |
| 8 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04150 |
NUT Price: $3.74 |
| 11 |
720-04061 |
KNOB 3/8-16 x .875 Price: $4.67 |
| 12 |
726-0100 |
Push Cap 3/8" Rod This part replaces 926-0100. Price: $3.75 |
| 13 |
731-09227 |
COUNTERWEIGHT Price: $72.89 |
| 14 |
631-05078P |
BAG CHUTE ASSEMBLY Price: $129.57 |
| 15 |
735-0246A |
END PLUG Price: $5.01 |
| 16 |
736-0159 |
Fl-Wash. .344" I.D. This part replaces 936-0159. Price: $3.71 |
| 17 |
764-04148B |
GRASSCATCHER TOP Price: $64.79 |
| 18 |
783-08135-0637 |
MOUNT BRACKET Price: $42.82 |
