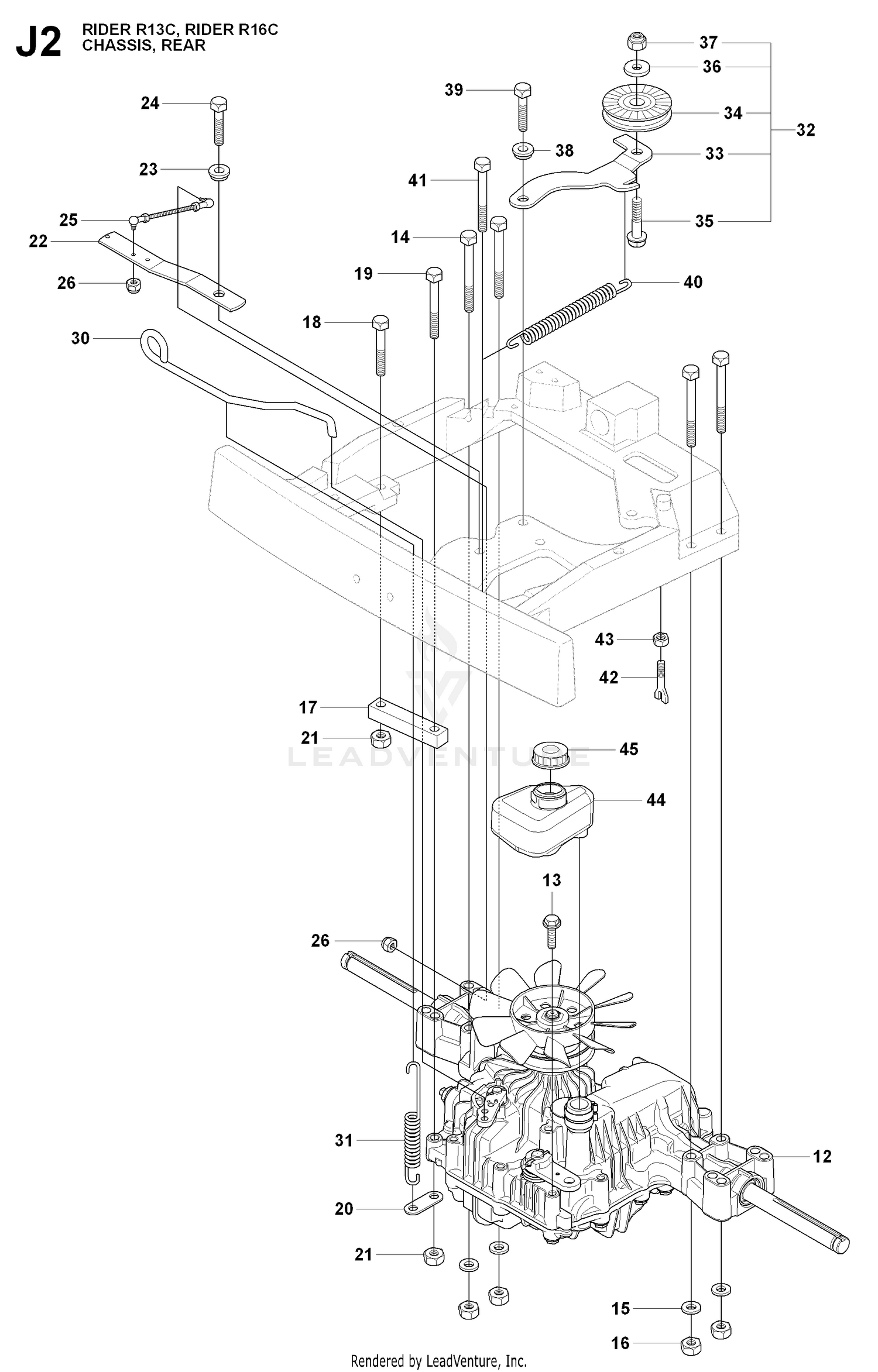

CHASSIS & ENCLOSURES
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 13 | 506558302 | BOLT Price: $3.99 |
| 14 | 725246751 | Hex Bolt Price: $4.99 |
| 15 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 16 | 731231801 | NUT Price: $3.99 |
| 17 | 506987201 | BRACKET Price: $19.99 |
| 18 | 725245951 | SCREW Price: $4.99 |
| 19 | 725246251 | SCREW Price: $4.99 |
| 20 | 506599301 | CONNECTOR Price: $5.99 |
| 21 | 731231801 | NUT Price: $3.99 |
| 22 | 506987403 | ARM Price: $12.99 |
| 23 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 24 | 725245151 | SCREW 8X20 Price: $4.99 |
| 25 | 506987501 | ROD Price: $32.99 |
| 26 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 30 | 506988201 | Rod Price: $12.71 |
| 31 | 506834301 | SPRING Price: $3.99 |
| 32 | 506988401 | TENSIONER Price: $54.99 |
| 33 | 588740401 | BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 34 | 506946901 | PULLEY Price: $34.99 |
| 35 | 725245551 | SCREW Price: $3.99 |
| 36 | 734116441 | SPACER Price: $3.99 |
| 37 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 38 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 39 | 725245151 | SCREW 8X20 Price: $4.99 |
| 40 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 41 | 725246451 | SCREW Price: $5.99 |
| 42 | 506988801 | SCREW Price: $4.96 |
| 44 | 506989001 | TANK Price: $24.99 |
| 45 | 590324701 | TANK CAP ASSY This part replaces 506988001. Price: $7.99 |
