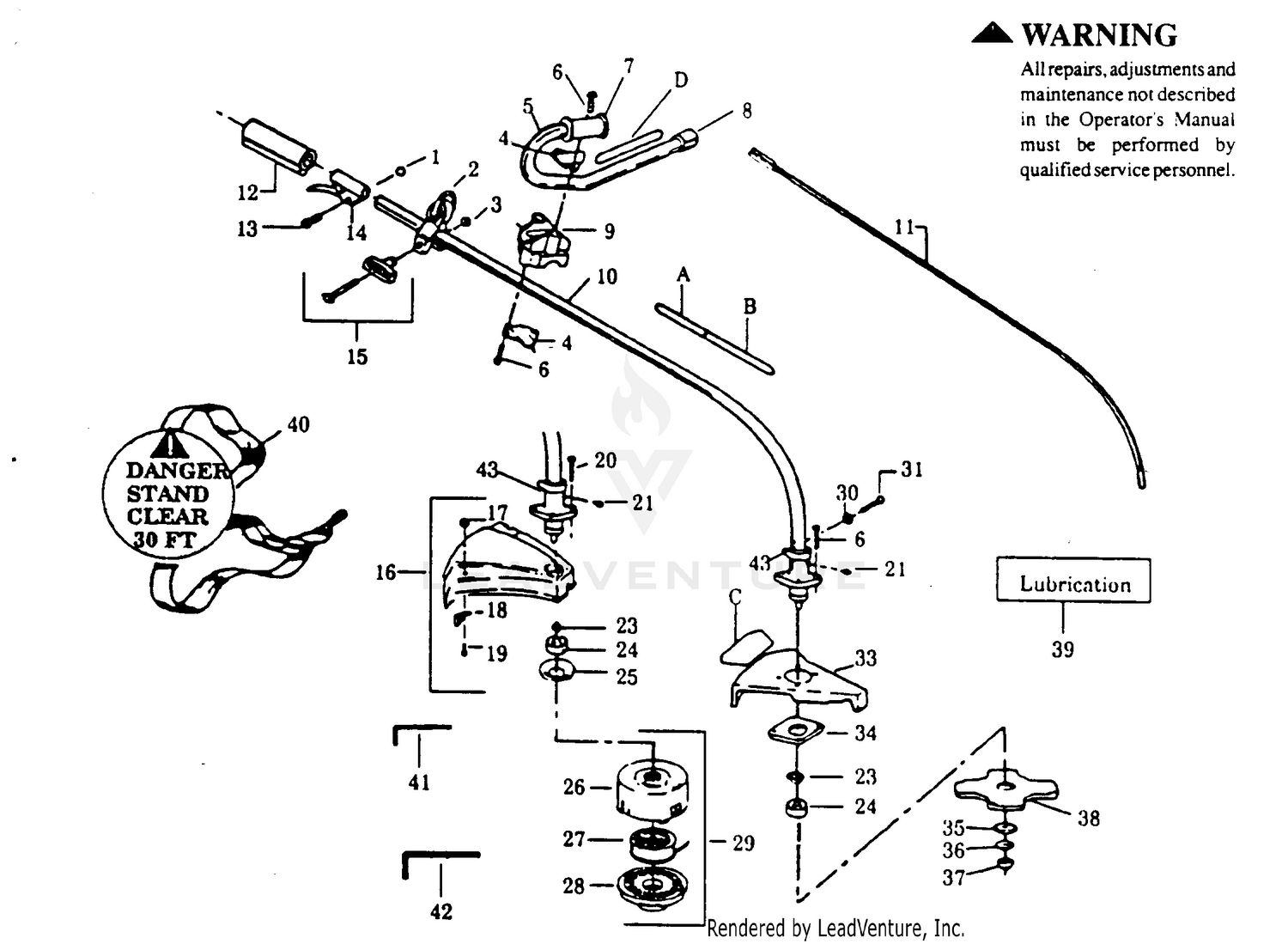

| Ref | Part Number | Description |
|---|
| 1 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 1 |
530015768 |
Nut Price: $1.99 |
| 2 |
253-131 |
DISCONTINUED Price: Call Us |
| 2 |
530094686 |
Clamp Harness Ass'y. This part replaces 530094598. Price: $4.99 |
| 3 |
20-7680 |
DISCONTINUED Price: Call Us |
| 3 |
530015197 |
Nut Price: $1.99 |
| 4 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 4 |
530094572 |
Handlebar Bracket Price: $1.99 |
| 5 |
20-7320 |
DISCONTINUED Price: Call Us |
| 5 |
530014098 |
Handlebar Price: $17.99 |
| 6 |
352-284 |
CLUTCH & BRG ASM Price: $88.61 |
| 6 |
530015791 |
Screw Price: $1.99 |
| 7 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 7 |
530092086 |
Handlebar Grip Price: $4.99 |
| 8 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 8 |
530092192 |
Handlebar Cap Price: $0.99 |
| 9 |
20-7690 |
DISCONTINUED Price: Call Us |
| 9 |
530012207 |
Handlebar Clamp Price: $8.99 |
| 10 |
20-7330 |
COUNTERSHAFT Price: $14.84 |
| 10 |
530094756 |
Drive Shaft Housing Price: Call Us |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
530094555 |
Drive Shaft Price: $14.99 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
530029445 |
Grip This part replaces 530027595. Price: $2.99 |
| 13 |
530015774 |
Screw Price: $1.99 |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
23-5150 |
DISCONTINUED Price: Call Us |
| 14 |
530010959 |
Throttle Lever Assy. (Inc.1,13) Price: $6.99 |
| 15 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 15 |
6663 |
SEAL-OIL This part replaces 253-130. Price: $10.99 |
| 16 |
20-7700 |
COVER ASSY Price: $263.07 |
| 16 |
530069256 |
Shield Kit Assy. (Inc.17 - 19) Price: $9.99 |
| 17 |
20-7740 |
DISCONTINUED Price: Call Us |
| 17 |
530403094 |
Nut This part replaces 530015217. Price: $1.99 |
| 18 |
20-7410 |
DISCONTINUED Price: Call Us |
| 18 |
530094570 |
Line Limiter Price: $1.99 |
| 19 |
256-27 |
BUSHING Price: $8.21 |
| 19 |
530015037 |
Screw Price: $1.99 |
| 20 |
256-117 |
BUSHING Price: $4.07 |
| 20 |
530016107 |
Screw This part replaces 530015790. Price: $1.99 |
| 21 |
20-7820 |
DISCONTINUED Price: Call Us |
| 21 |
530015518 |
Screw Price: $1.99 |
| 22 |
32151-35 |
RING-RETAINING, EXTERNAL Price: $8.80 |
| 23 |
2410-34 |
DISCONTINUED Price: Call Us |
| 23 |
530092216 |
Washer Price: $1.99 |
| 24 |
20-7360 |
DISCONTINUED Price: Call Us |
| 24 |
530092359 |
Dust Cup Price: $4.99 |
| 25 |
20-7340 |
DISCONTINUED Price: Call Us |
| 25 |
530094571 |
Grass Washer Price: $1.99 |
| 26 |
256-244 |
BUSHING Price: $5.77 |
| 26 |
530094620 |
Hub Assy. Price: Call Us |
| 27 |
952702556 |
Spool w/Line Price: Call Us |
| 28 |
530094494 |
Cover Price: $4.99 |
| 29 |
530702553 |
Cutting Head Assy. (Inc.26 - 28) Price: Call Us |
| 30 |
530092227 |
Washer Price: $0.99 |
| 31 |
530625509 |
Screw Price: $1.99 |
| 33 |
530094758 |
Shield Price: $3.33 |
| 34 |
530027615 |
Shield Retention Plate Price: $3.99 |
| 35 |
530015792 |
Washer Price: $1.99 |
| 36 |
530016240 |
Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 37 |
530093748 |
Nut Price: $2.99 |
| 38 |
952701546 |
Weed Blade Price: Call Us |
| 39 |
952708514 |
LUBE, FLEX SHAFT NLA This part replaces 530030102. Price: Call Us |
| 40 |
530094417 |
Shoulder Strap This part replaces 530094638. Price: $20.65 |
| 41 |
530031159 |
Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 42 |
530031098 |
Hex Wrench (3/16) Price: $0.99 |
