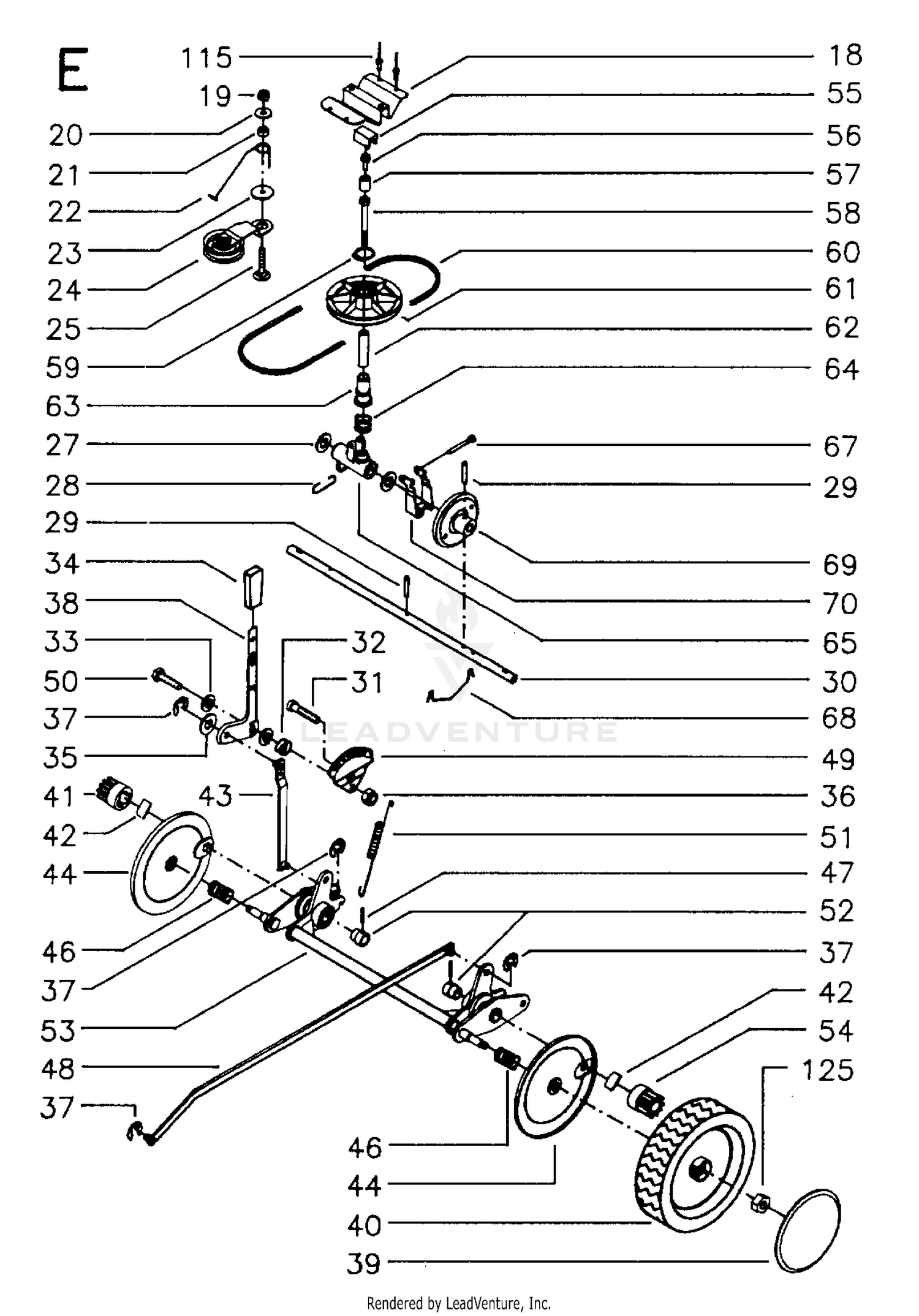

DRIVE 7
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 516495001 | PLATE Price: $7.62 |
| 19 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 21 | 516491901 | SPACER Price: $4.99 |
| 22 | 516631601 | SPRING Price: $8.99 |
| 23 | 516492201 | WASHER Price: $5.78 |
| 24 | 513081600 | BELT TENSIONER This part replaces 516700501. Price: $29.99 |
| 25 | 515711630 | SCREW Price: $0.35 |
| 27 | 515796033 | WASHER This part replaces 515768016. Price: $2.07 |
| 28 | 513951200 | CLIP This part replaces 516447701. Price: $3.99 |
| 29 | 721431200 | SPRING PIN 5X28 Price: $1.99 |
| 30 | 516614200 | REAR AXLE SHAFT This part replaces 516614201. Price: $39.99 |
| 33 | 515139765 | Washer Price: $0.61 |
| 34 | 516874807 | HANDLE Price: $3.01 |
| 35 | 516440701 | WASHER Price: $2.39 |
| 36 | 732212001 | NUT Price: $3.99 |
| 37 | 516905100 | Ring Price: $2.47 |
| 38 | 516496611 | CONTROL Price: $12.93 |
| 39 | 516845808 | WHEEL COVER Price: $4.99 |
| 40 | 516824900 | WHEEL Price: $74.99 |
| 41 | 516921500 | PINION, RIGHT Price: $26.99 |
| 42 | 514883100 | PAWL This part replaces 516910000. Price: $6.99 |
| 44 | 512797000 | BACKPLATE 9" This part replaces 516845709. Price: $5.15 |
| 46 | 514930700 | SPRING This part replaces 516614801. Price: $0.30 |
| 47 | 721421000 | PIN Price: $1.99 |
| 48 | 516708801 | STAY Price: $12.99 |
| 49 | 516805800 | SEGMENT This part replaces 515139840. Price: $26.99 |
| 50 | 725249771 | Screw Price: $2.99 |
| 51 | 516494701 | SPRING Price: $5.99 |
| 52 | 516614001 | SLEEVE Price: $15.04 |
| 53 | 516807100 | Price: Call Us |
| 54 | 516921600 | PINION, LEFT Price: $28.99 |
| 55 | 516850809 | SLIDE BEARING Price: $0.99 |
| 56 | 516924101 | SCREW This part replaces 516924201. Price: $0.99 |
| 57 | 516495101 | SPACER Price: $4.99 |
| 58 | 516909001 | BOLT Price: $2.34 |
| 59 | 516909700 | SNAP RING Price: $1.60 |
| 60 | 531005032 | BELT This part replaces 516924600. Price: $24.99 |
| 61 | 513906200 | DISC This part replaces 516703100. Price: $63.99 |
| 62 | 516922000 | SPACER Price: $16.99 |
| 63 | 513950600 | SLEEVE This part replaces 516712803. Price: $12.99 |
| 64 | 516449601 | SPRING Price: $8.58 |
| 65 | 513077900 | VARIATOR HOUSING This part replaces 516790800. Price: $29.99 |
| 67 | 516916201 | PIN Price: $2.99 |
| 68 | 516441401 | HOLDER SPACER Price: $4.25 |
| 69 | 513090005 | DISC This part replaces 516693700. Price: $34.99 |
| 70 | 513952700 | ARM This part replaces 516429701. Price: $6.99 |
| 115 | 516927900 | RIVET Price: $4.81 |
| 125 | 732212031 | NUT Price: $2.99 |
