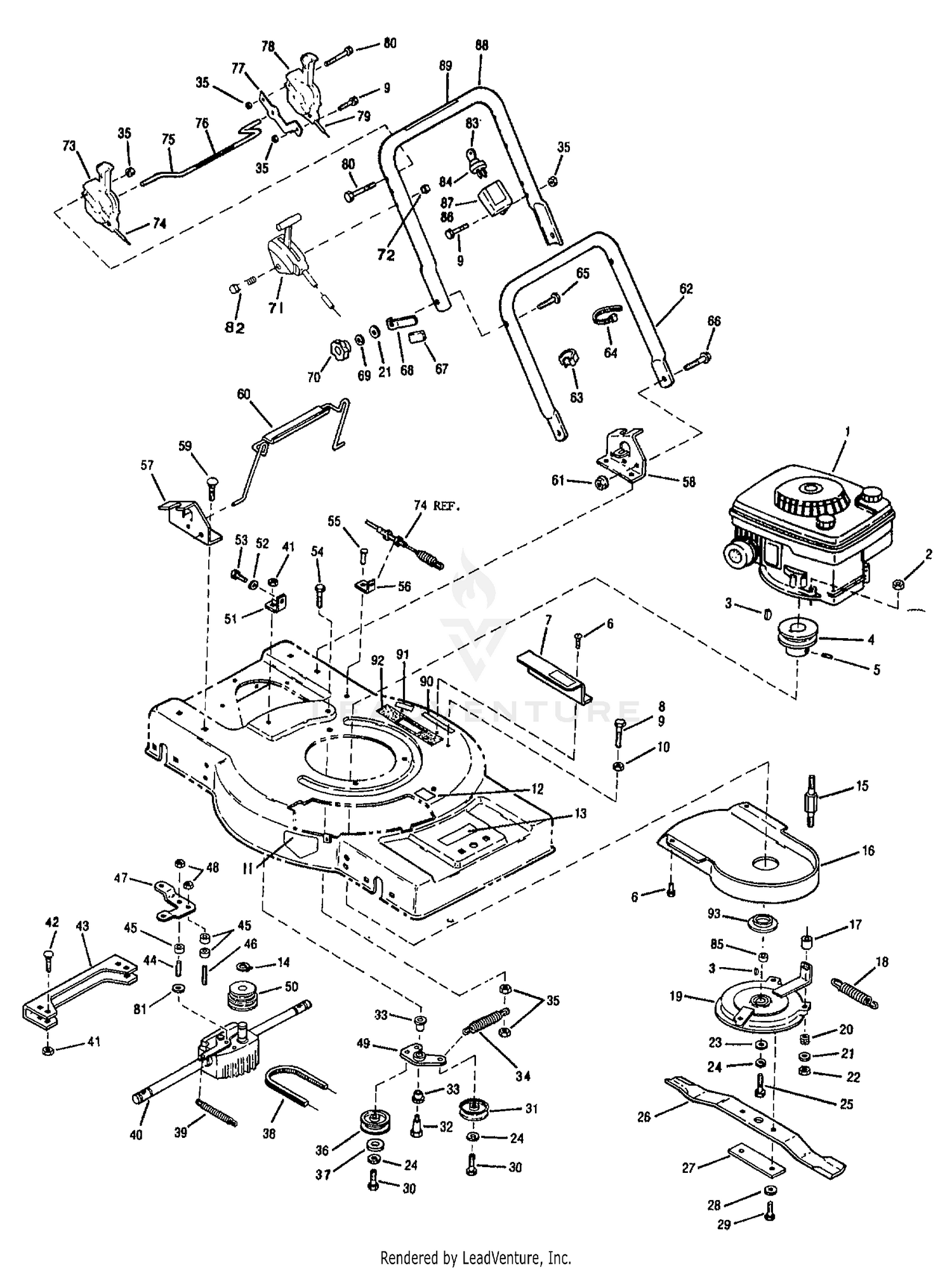

| Ref | Part Number | Description |
|---|
| 2 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 3 |
1100275 |
KEY-WOODRU Not Available Price: |
| 4 |
1744579 |
SHEAVE-ENGINE Price: Call Us |
| 5 |
1738845 |
SCREW-SET SQ HD 1/4- Not Available Price: |
| 6 |
1186009 |
SCREW-HW M10-24X.5 S Not Available Price: |
| 7 |
1750084010 |
SPRING-CVR STD START Price: Call Us |
| 7 |
1753130010 |
COVER-SPRING ELEC. START Price: Call Us |
| 11 |
T214744 |
DECAL-BLADE WARNING Price: Call Us |
| 12 |
1747049 |
DECAL-CAUTION Price: Call Us |
| 13 |
1753770 |
DECAL-CUTTING HEIGHT Price: Call Us |
| 14 |
1750804 |
RING, RETAINING Price: Call Us |
| 15 |
1749948 |
BOLT-SHOULDER-GR. 5 Price: Call Us |
| 16 |
1753134 |
COVER-IDLER Price: Call Us |
| 17 |
1753517 |
SPACER Price: Call Us |
| 18 |
1750649 |
SPRING-EXTENSION Price: Call Us |
| 19 |
1749610 |
CLUTCH Price: Call Us |
| 20 |
1750651 |
SPRING-COIL Price: Call Us |
| 26 |
1752039 |
BLADE-VACUCUT Price: Call Us |
| 27 |
1750757 |
PLATE-LOCK Price: Call Us |
| 28 |
1185714 |
WASHER-LK Not Available Price: |
| 31 |
1727978 |
IDLER-V Not Available Price: |
| 32 |
1743259 |
BOLT-SHLDR 5/16-18X.58 Price: Call Us |
| 33 |
1715716 |
BUSHING-.5X.21 NYLON FLNG Not Available Price: |
| 34 |
1743299 |
SPRING-EXTENSION Price: Call Us |
| 36 |
1752988 |
FLAT IDLER Not Available Price: |
| 38 |
1744706 |
V-BELT (VACU-CUT) Not Available Price: |
| 39 |
1743325 |
SPRING, EXTENSION Price: Call Us |
| 40 |
1743275 |
TRANSMISSION Price: Call Us |
| 41 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 43 |
1744498001 |
CHANNEL-REAR AXLE Price: Call Us |
| 44 |
1753246 |
STUD-THRD SHORT 10-24X1.00 G5 Price: Call Us |
| 45 |
1752852 |
SPACER Price: Call Us |
| 46 |
1753247 |
STUD-THRD LONG Price: Call Us |
| 47 |
1753111 |
TRANSMISSION-BRACKET Price: Call Us |
| 49 |
1743260 |
ASSM-ARM IDLER Price: Call Us |
| 50 |
1753324 |
SHEAVE Price: Call Us |
| 51 |
1750517 |
BRACKET Price: Call Us |
| 55 |
928-0123 |
POP RIVET This part replaces 1185878. Price: $4.36 |
| 56 |
1748430 |
BRACKET-CABLE Price: Call Us |
| 57 |
1750145 |
BRKT-HANDLE RH Price: Call Us |
| 58 |
1750146 |
HANDLE BRACKET (LH) Not Available Price: |
| 60 |
1748602001 |
SUPPORT-FRONT Price: Call Us |
| 61 |
1186393 |
NUT-HFLK 3/8-16 Price: $2.63 |
| 62 |
1749797 |
HANDLE-LOWER Price: Call Us |
| 63 |
1729721 |
WIRE CLIP Not Available Price: |
| 66 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 67 |
1737499 |
VACUCUT GRIP Not Available Price: |
| 68 |
1753243 |
BAG-LOCATOR Price: Call Us |
| 70 |
1763767 |
KNOB Not Available Price: |
| 71 |
1753495 |
CONTROL, THROTTLE Price: Call Us |
| 73 |
1753220 |
LEVER CONT Not Available Price: |
| 74 |
1753221 |
CONTROL-BLADE CABLE Price: Call Us |
| 75 |
1753142 |
RELEASE-LEVER CONTROL Price: Call Us |
| 76 |
1753227 |
DECAL-DRIVE CONTROL Price: Call Us |
| 77 |
1753056 |
PLATE-MOUNTING Price: Call Us |
| 78 |
1753218 |
LEVER-CONTROL DRIVE Price: Call Us |
| 79 |
1753219 |
CABLE-CONTROL DRIVE Price: Call Us |
| 83 |
1753986 |
IGNITION KEY Not Available Price: |
| 84 |
1900455P |
SWITCH Not Available This part replaces 1723798. Price: |
| 85 |
1748426 |
SPACER-CLUTCH Price: Call Us |
| 86 |
1753728 |
DECAL-KEY SWITCH Price: Call Us |
| 87 |
1753222 |
SUPPORT, SWITCH (ELECTRIC START) Price: Call Us |
| 88 |
1752879001 |
HANDLE-UPPER Price: Call Us |
| 89 |
1749938 |
DECAL-CAUTION Price: Call Us |
| 90 |
1753769 |
DECAL-HEIGHT ADJUSTMENT Price: Call Us |
| 91 |
1753767 |
DECAL-STOP Price: Call Us |
| 92 |
1753131 |
PAD-RUBBER Price: Call Us |
