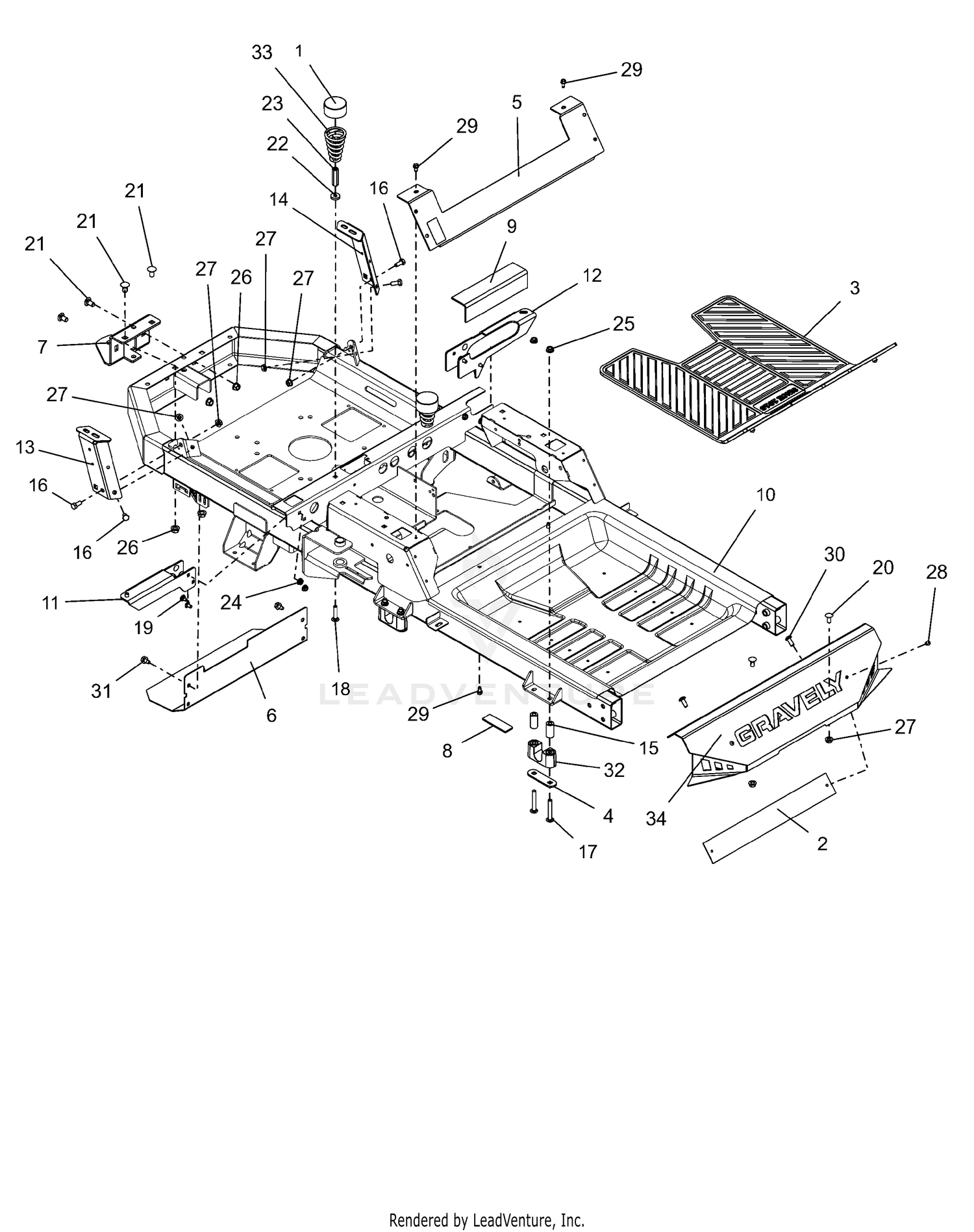

| Ref | Part Number | Description |
|---|
| 1 |
00337700 |
HUB CAP Price: $2.45 |
| 2 |
04718451 |
PLATE, BACK FOOT-REST XL Price: $7.45 |
| 3 |
04751400 |
FLOOR MAT, RUBBER - GRAVELY Price: $63.95 |
| 4 |
04766551 |
PLATE, BEARING SUPPORT Price: $7.45 |
| 5 |
04772353 |
PLATE, SEAT KICK Price: $30.95 |
| 6 |
04807951 |
HEAT, SHIELD Price: $27.45 |
| 7 |
04835353 |
BRKT, HITCH TONGUE Price: $26.95 |
| 8 |
04850000 |
PAD,RBR 1.0"X3.0" W/ADHESIVE Price: $2.45 |
| 9 |
04864600 |
PAD, RUBBER-TANK Price: $5.45 |
| 10 |
51531700 |
KIT, ZT-X/XL FRAME SERVICE Price: $641.95 |
| 11 |
05077153 |
BRKT,CROSS EXTENSION - RH Price: $22.45 |
| 12 |
05077253 |
BRKT,CROSS EXTENSTION - LH Price: $22.45 |
| 13 |
05077353 |
MOUNT,FENDER-RH EXTENSION Price: $29.95 |
| 14 |
05077453 |
MOUNT,FENDER-LH EXTENSION Price: $29.95 |
| 15 |
05501230 |
SPACER, .323 X .698 X 1.441 Price: $3.45 |
| 16 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 17 |
06200311 |
BLT, RHSSN.31-18X2.25 G5 ZCC This part replaces 06200226. Price: $3.95 |
| 18 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 19 |
06200305 |
BLT, RHSSN.25-20X.500 G5 ZCC This part replaces 06214300. Price: $1.45 |
| 20 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 21 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 22 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
| 23 |
06500927 |
NUT, COUPLING .31-18X1.75 ZCC This part replaces 06500015. Price: $3.95 |
| 24 |
06500710 |
NUT-LK-CTR-FLG .25-20 YWZC Price: Call Us |
| 25 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC This part replaces 06528700. Price: $0.95 |
| 26 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 27 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 28 |
06800120 |
RIVET, .1875 AL/AL .126-.250 Price: $1.45 |
| 29 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 30 |
07400120 |
SCR-RDHDSKTAP .31-18 X .75 Price: Call Us |
| 31 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
| 32 |
07500327 |
BSHG, DECK LIFT PIVOT Price: $11.45 |
| 33 |
08300021 |
SPRING, SEAT Price: $18.45 |
