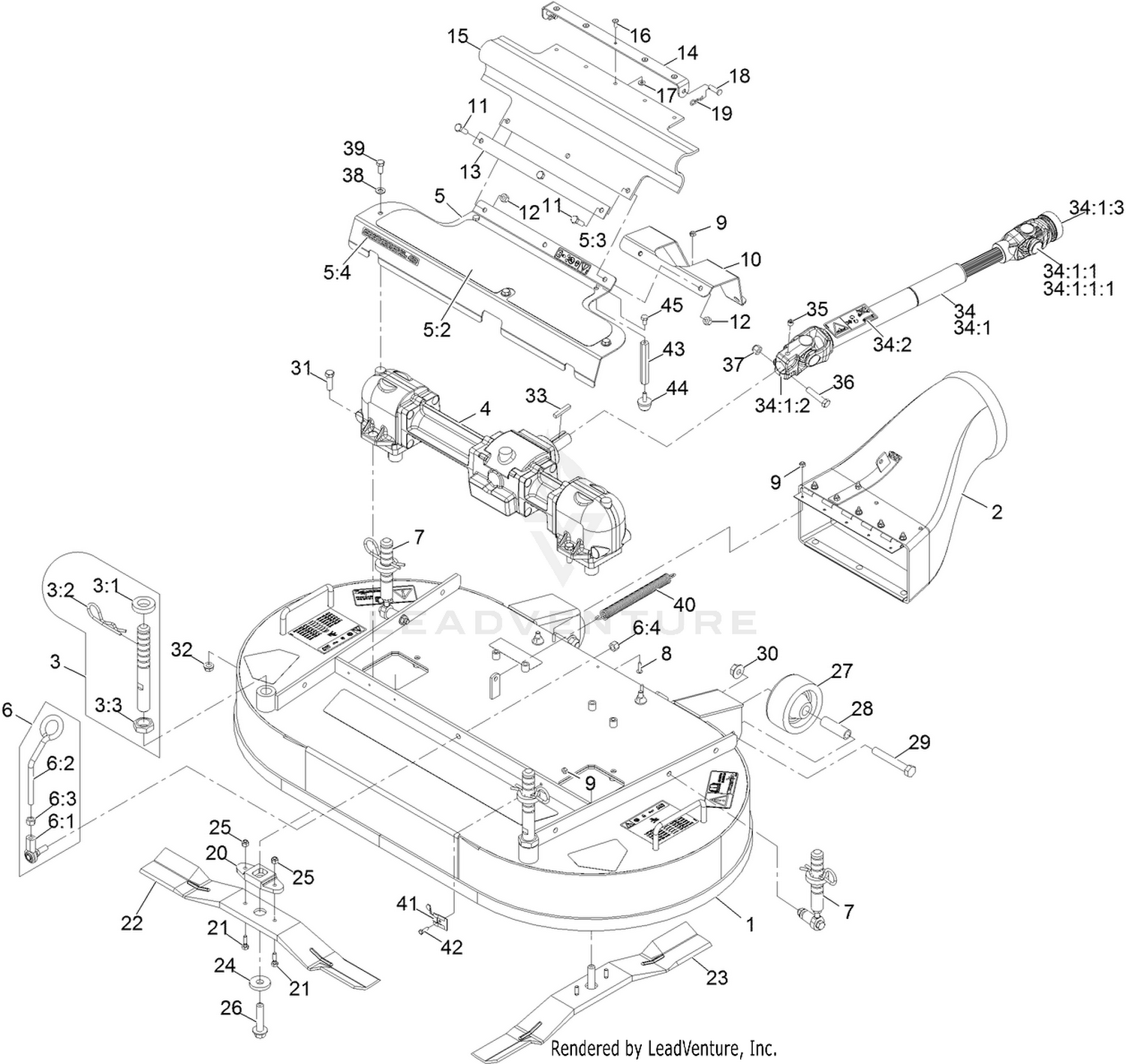

| Ref | Part Number | Description |
|---|
| 1 |
142-2918 |
Deck-Cutting 42 W/Decals This part replaces 109-4373. Price: $1,557.99 |
| 2 |
103-9487 |
DISCHARGE TUBE ASM Price: $312.99 |
| 3 |
109-0321 |
FRONT DECK HEIGHT ADJUST Price: $92.99 |
| 4 |
103-3460 |
GEARBOX ASM Price: $3,151.99 |
| 5 |
103-9497 |
ASM,GEARBOX COVER 42 W/DECAL Price: $218.99 |
| 6 |
103-8363 |
DECK LATCH ASM Price: $121.99 |
| 7 |
109-0322 |
REAR DECK HEIGHT ADJUST A Price: $113.99 |
| 8 |
1-803075 |
SCREW-HEAD, TRUSS Price: $1.19 |
| 9 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 10 |
116-7842-01 |
GUARD-DRIVE SHAFT Price: $40.99 |
| 11 |
322-5 |
SCREW-HH Price: $0.49 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
103-6290-03 |
STRAP-DRIVE, LINE COVER Price: $36.99 |
| 14 |
103-6183-03 |
BRACKET-GUARD, PTO Price: $35.99 |
| 15 |
103-5979 |
GUARD-PTO Price: $78.99 |
| 16 |
114439 |
RIVET-BLIND Price: $1.19 |
| 17 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 18 |
1-808280 |
PIN-CLEVIS Price: $2.29 |
| 19 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 20 |
103-7705 |
DRIVER-BLADE Price: $41.99 |
| 21 |
99-0283 |
BOLT-SHEAR Price: $7.09 |
| 22 |
103-4210 |
BLADE,22 INCH RH Price: $34.99 |
| 23 |
103-4209 |
BLADE,22 INCH LH Price: $34.99 |
| 24 |
30-8770 |
WASHER Price: $10.99 |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.39 |
| 26 |
92-5816 |
BOLT-BLADE Price: $6.89 |
| 27 |
103-3700 |
ROLLER-DECK Price: $17.99 |
| 28 |
103-4230 |
SPACER-ROLLER Price: $11.99 |
| 29 |
325-14 |
SCREW-HH Price: $4.19 |
| 30 |
32128-49 |
NUT-HHF Price: $1.79 |
| 31 |
323-7 |
SCREW-HH Price: $2.69 |
| 32 |
3290-357 |
NUT-HHF, WHIZ Price: $0.79 |
| 33 |
67-7490 |
KEY-SQUARE Price: $2.39 |
| 34 |
103-9485 |
DRIVE SHAFT ASM Price: $519.99 |
| 35 |
3247-2 |
SCREW-SET, HSH Price: $3.79 |
| 36 |
323-9 |
SCREW-HH Price: $1.29 |
| 37 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $1.99 |
| 39 |
322-3 |
SCREW-HH Price: $0.79 |
| 40 |
103-8841 |
SPRING-EXTENSION Price: $13.99 |
| 41 |
1-513690 |
CLIP-DECK, HOLD UP ROD Price: $4.79 |
| 42 |
3290-134 |
SCREW Price: $0.39 |
| 43 |
103-8610 |
STAND-OFF Price: $20.99 |
| 44 |
109-2365 |
BUMPER-RUBBER This part replaces 1-523420. Price: $4.89 |
