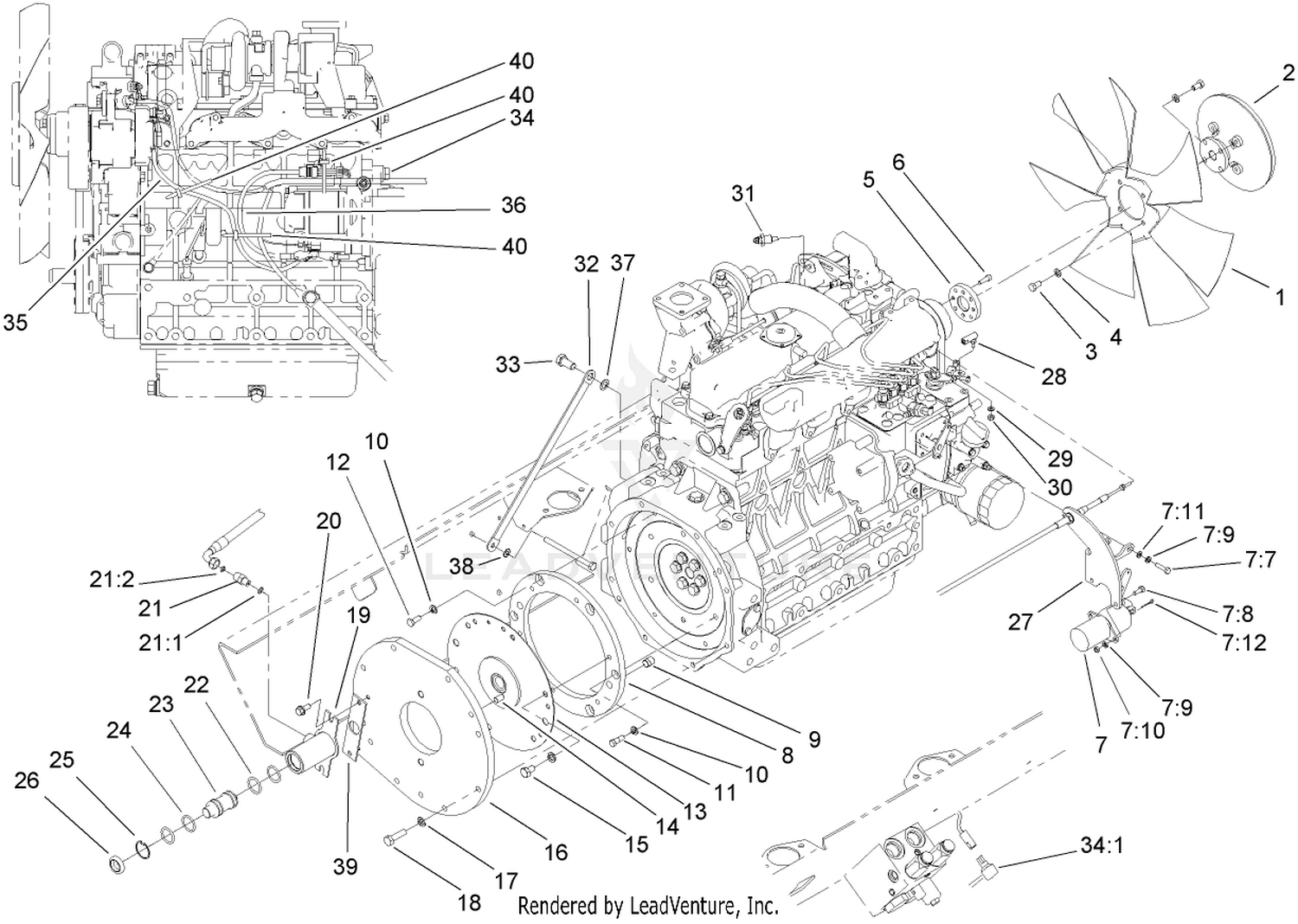

| Ref | Part Number | Description |
|---|
| 1 |
105-0750 |
FAN Price: $203.59 |
| 2 |
115-1562 |
FAN CLUTCH KIT This part replaces 104-2212. Price: $645.71 |
| 3 |
322-2 |
SCREW-HH Price: $0.69 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
100-3066 |
ADAPTER-FAN Price: $120.14 |
| 6 |
52-6290 |
SCREW-HSH Price: $1.09 |
| 7 |
98-3817 |
SOLENOID KIT Price: $522.93 |
| 8 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 9 |
58-3590 |
DOWEL Price: $5.50 |
| 10 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 11 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 12 |
33114-020 |
SCREW-HH Price: $0.28 |
| 13 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 14 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 15 |
70-8470 |
SCREW-HH Price: $1.76 |
| 16 |
108-1544-03 |
PLATE-ADAPTER Price: $523.90 |
| 17 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 18 |
56-2140 |
SCREW-HH Price: $4.17 |
| 19 |
104-2291 |
CYLINDER ASM Price: $295.14 |
| 20 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 21 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
237-185 |
O-RING Price: $1.26 |
| 23 |
104-2295 |
PISTON-CYLINDER Price: $83.64 |
| 24 |
104-2296 |
RING-BACK UP Price: $2.67 |
| 25 |
32151-51 |
RING-RETAINING Price: $0.81 |
| 26 |
104-8304 |
SEAL-GREASE Price: $7.38 |
| 27 |
104-7540-03 |
SUPPORT-CABLE Price: $44.21 |
| 28 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 29 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 30 |
3296-21 |
NUT-HEX Price: $0.22 |
| 31 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 32 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 33 |
42-9250 |
BOLT Price: $1.63 |
| 34 |
105-7475 |
HARNESS-WIRE, REAR Price: $432.62 |
| 35 |
100-5552 |
HARNESS-WIRE Price: $45.75 |
| 36 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 37 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 38 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 39 |
105-3238 |
PLATE-SHIM This part replaces 105-3238-03. Price: $7.52 |
| 40 |
3290-378 |
TIE-CABLE Price: $0.79 |
