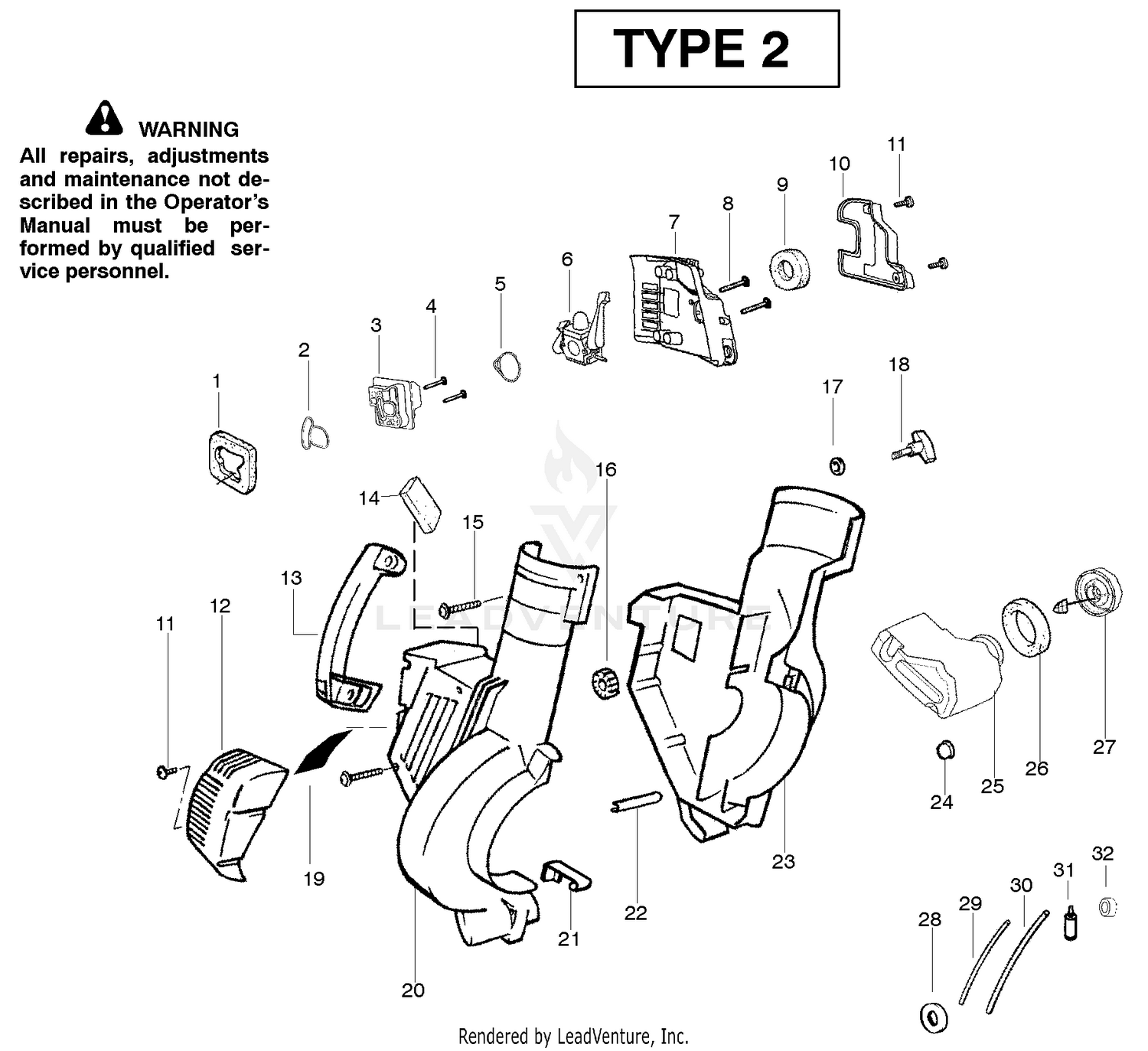

Housing Type 2
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-3300-03 | SUPPORT-CYLINDER Price: Call Us |
| 1 | 530071459 | Air Dam (kit) Price: $4.99 |
| 2 | 112-6320-03 | ADAPTER Price: $640.39 |
| 2 | 530071458 | Gasket-Adapter (kit) Price: $5.99 |
| 3 | 121-3310-03 | LIFT ARM ASM Price: Call Us |
| 3 | 530035502 | Carburetor Adaptor Price: $1.24 |
| 4 | 110-5362 | PIN Price: $78.51 |
| 4 | 530016309 | Screw Price: $1.99 |
| 5 | 3234-42 | SCREW-HHF Price: $1.10 |
| 5 | 530071458 | Gasket-Carburetor (kit) Price: $5.99 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 530071465 | Kit-Carb Ass'y. (C1Q-W11C) Price: $19.40 |
| 7 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 7 | 530055103 | Air Box Price: $1.80 |
| 8 | 3234-24 | SCREW-HHF Price: $3.19 |
| 8 | 530016340 | Screw-Carb. Price: $1.99 |
| 9 | 530049383 | Filter-Air Price: $1.99 |
| 9 | 98-9062 | SCREW Price: $12.78 |
| 10 | 1-303352 | WASHER-SPINDLE Price: $1.20 |
| 10 | 530055104 | Cover-Air Filter Price: $2.99 |
| 11 | 3253-28 | WASHER-LOCK/SP Price: $1.36 |
| 11 | 530016354 | Screw Price: $3.33 |
| 12 | 103-8496 | NUT-JAM Price: $3.89 |
| 12 | 530015880 | Guard-Muffler Price: $1.99 |
| 13 | 121-3369 | PIN-FLAG Price: $110.12 |
| 13 | 530056257 | Handle Price: $3.33 |
| 14 | 131-3390 | PIN-FLAG Price: $173.09 |
| 14 | 530095469 | Foam - 71.12mm (kit) Price: $7.99 |
| 15 | 530015886 | Screw Price: $1.99 |
| 15 | 61-3540 | BEARING-ROD END, LH Price: $52.61 |
| 16 | 530049323 | Isolator Price: $2.99 |
| 16 | 61-3530 | BEARING-ROD END, RH Price: $52.61 |
| 17 | 110-5367 | TUBE-HEX Price: $132.71 |
| 17 | 530071459 | Nut Price: $4.99 |
| 18 | 3220-12 | NUT-HEX JAM LH Price: $1.83 |
| 18 | 530016324 | Knob-Tube Clamp Price: $4.99 |
| 19 | 3220-5 | NUT-JAM Price: $0.65 |
| 19 | 530016322 | Reflector-Heat (kit) Price: $1.99 |
| 20 | 3296-45 | NUT-HEX Price: $3.79 |
| 20 | 530055146 | Housing-Right Price: $22.99 |
| 21 | 325-6 | SCREW-HH Price: $1.42 |
| 21 | 530402044 | Spring-Cover Latch Price: $3.99 |
| 22 | 125-2650 | CYLINDER-HYD Price: $709.77 |
| 22 | 530049617 | Guide-Starter Rope Price: $1.99 |
| 23 | 112-1493 | HYD MANIFOLD ASM Price: $2,463.39 |
| 23 | 530057631 | SHROUD LH WE GREEN This part replaces 530056683. Price: $19.99 |
| 24 | 340-137 | FITTING Price: $33.52 |
| 24 | 530036792 | Isolator-Crankcase Price: $4.99 |
| 25 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 25 | 545058007 | Assy-Fuel Tank This part replaces 530049491. Price: $22.99 |
| 26 | 322-3 | SCREW-HH Price: $0.79 |
| 26 | 530049527 | Gasket-Fuel Tank Price: $1.99 |
| 27 | 112-9546 | HOSE-HYD Price: $135.05 |
| 27 | 530057973 | Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 28 | 112-9547 | HOSE-HYD Price: $143.60 |
| 28 | 530049656 | Grommet-Shroud Price: $1.99 |
| 29 | 130-8761-03 | BRACKET-RELAY Price: $41.44 |
| 29 | 530069247 | Kit-Line Carb/Purge Price: $3.99 |
| 30 | 530069216 | Kit-Line Tank/Purge Price: $3.99 |
| 30 | 99-7430 | RELAY-MINI Price: $22.99 |
| 31 | 321-2 | SCREW-HH Price: $2.79 |
| 31 | 530095646 | Assy-Fuel Pick-up Price: $2.99 |
| 32 | 104-7201 | NUT-HF Price: $0.69 |
| 32 | 530071459 | Grommet-Fuel line (kit) Price: $4.99 |
| 33 | 3234-4 | SCREW-HHF Price: $0.50 |
