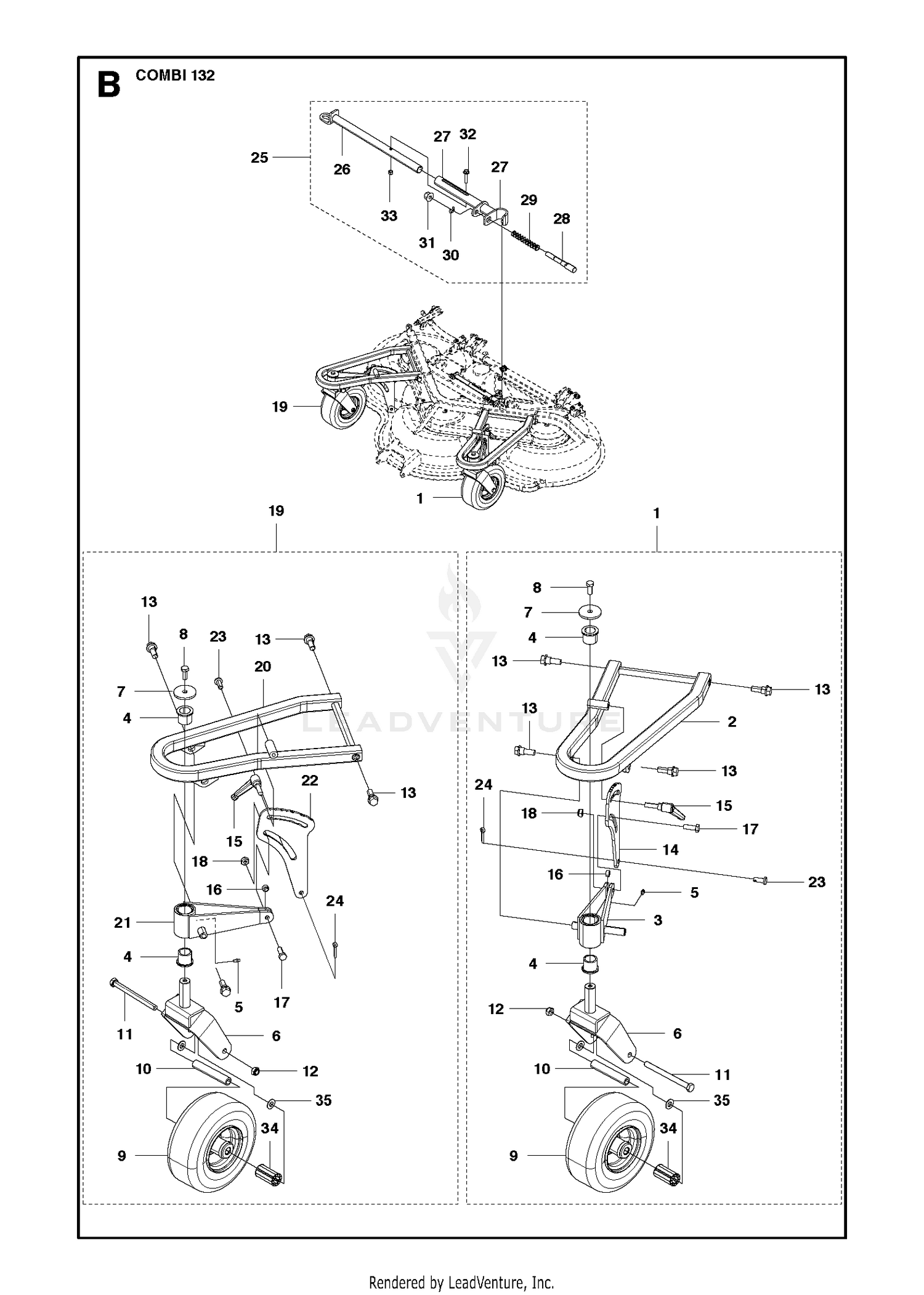

| Ref | Part Number | Description |
|---|
| 1 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 1 |
544173201 |
WHEEL SUSPENSION LEFT Price: $699.99 |
| 2 |
121-5631 |
HUB ASM Price: $156.48 |
| 2 |
544173501 |
SUPPORTING ARM LEFT Price: $179.99 |
| 3 |
136-7963 |
TIRE ASM Price: $455.76 |
| 3 |
544173301 |
PIVOT WHEEL SUPPORT LEFT Price: $149.99 |
| 4 |
115-5103 |
SCREW-HHF Price: $0.34 |
| 4 |
544174101 |
NEEDS DESCRIPTION Price: Call Us |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
738881001 |
GREASE NIPPLE Price: $6.99 |
| 6 |
325-12 |
SCREW-HH Price: $2.27 |
| 6 |
544173401 |
FORK PIVOT WHEEL Price: $119.99 |
| 7 |
147-3594 |
ADAPTER-BRAKE This part replaces 120-6253-03. Price: $47.56 |
| 7 |
506982501 |
Washer Price: $6.01 |
| 8 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 8 |
506675401 |
BOLT Price: $4.99 |
| 9 |
117-3290 |
NUT-HEX Price: $32.02 |
| 9 |
539104556 |
TIRE/WHEEL.CASTER.9X3.5-4.SMOO Price: $129.99 |
| 10 |
114-8864 |
DRUM-BRAKE Price: $248.55 |
| 10 |
539101872 |
SPACER Price: $25.99 |
| 11 |
127-2741 |
SHIELD-WHEEL, FRONT Price: $9.99 |
| 11 |
725255951 |
Price: Call Us |
| 12 |
127-2742 |
SHIELD-WHEEL, REAR Price: $8.07 |
| 12 |
732252201 |
Nut Price: $2.65 |
| 13 |
506895801 |
BOLT Price: $6.99 |
| 14 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 14 |
544175001 |
SHEET HEIGHT ADJUSTER Price: $44.99 |
| 15 |
139-5952 |
LH BRAKE ASM This part replaces 120-6261. Price: $449.41 |
| 15 |
544191801 |
TURNING KNOB M 10 Price: $19.99 |
| 16 |
139-5951 |
RH BRAKE ASM This part replaces 120-6260. Price: $449.41 |
| 16 |
544200201 |
SLEEVE PIVOT WHEEL SUPPORT Price: $6.99 |
| 17 |
323-4 |
SCREW-HH Price: $1.02 |
| 17 |
725249571 |
SCREW Price: $6.99 |
| 18 |
322-7 |
SCREW-HH Price: $0.89 |
| 18 |
732212001 |
NUT This part replaces 732212051. Price: $3.99 |
| 19 |
544173202 |
WHEEL SUSPENSION RIGHT Price: $699.99 |
| 20 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 20 |
544173502 |
SUPPORTING ARM RIGHT Price: $179.99 |
| 21 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
544173302 |
PIVOT WHEEL SUPPORT RIGHT Price: $149.99 |
| 22 |
120-6267 |
CLIP-SPRING, LH Price: $6.99 |
| 23 |
120-6266 |
CLIP-SPRING, RH Price: $6.99 |
| 23 |
721845601 |
Price: $16.32 |
| 24 |
721618301 |
Split Pin Price: $1.99 |
| 24 |
87-4020 |
SPRING-EXTENSION Price: $17.01 |
| 25 |
3218-2 |
NUT-JAM Price: $0.25 |
| 25 |
579744701 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
579285301 |
NEEDS DESCRIPTION Price: Call Us |
| 27 |
579285401 |
NEEDS DESCRIPTION Price: Call Us |
| 28 |
579595901 |
NEEDS DESCRIPTION Price: Call Us |
| 29 |
579503401 |
NEEDS DESCRIPTION Price: Call Us |
| 30 |
735311320 |
E-RING Price: $2.99 |
| 31 |
576645705 |
NEEDS DESCRIPTION Price: Call Us |
| 32 |
535475230 |
NEEDS DESCRIPTION Price: Call Us |
| 33 |
732211601 |
LOCKNUT M6 Price: $4.99 |
| 34 |
539977353 |
ROLLER BEARING Price: $11.99 |
| 35 |
539977356 |
ENDCAP, NOTCHED Price: $6.99 |
