| Ref | Part Number | Description |
|---|
| 1 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 2 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 3 |
71-2570 |
SHAFT-PIVOT Price: $431.51 |
| 4 |
69-7940-01 |
SUPPORT-LIFT ARM, RH This part replaces 69-7940. Price: $234.45 |
| 5 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 6 |
237-42 |
O-RING Price: $2.78 |
| 7 |
69-2180 |
DISCONTINUED Price: Call Us |
| 8 |
237-22 |
O-RING Price: $2.43 |
| 9 |
69-8440 |
HOSE ASM Price: $53.07 |
| 11 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 12 |
69-5440 |
HOSE ASM Price: $73.25 |
| 13 |
340-70 |
NUT-LOCK Price: $2.10 |
| 14 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 15 |
98-7346 |
SPACER This part replaces 69-9190. Price: $30.67 |
| 16 |
20-4360-03 |
SPACER This part replaces 20-4360. Price: $8.01 |
| 17 |
69-9180 |
PIN-CYLINDER Price: $25.38 |
| 18 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 19 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 20 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 21 |
328-10 |
SCREW-HH Price: $14.93 |
| 22 |
325-6 |
SCREW-HH Price: $1.42 |
| 23 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 24 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 25 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 26 |
3217-9 |
NUT-HH Price: $0.37 |
| 27 |
69-7920-01 |
SUPPORT-LIFT ARM, LH This part replaces 69-7920. Price: $214.14 |
| 28 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 29 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 30 |
111-1290 |
ENGINE - KUBOTA V1505-E2B-HAYTER-1 This part replaces 69-9080. Price: $3,715.61 |
| 31 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 32 |
69-8470-03 |
SPRING-TORSION This part replaces 69-8470. Price: $92.60 |
| 33 |
76-1670-03 |
SPRING-EXTENSION This part replaces 76-1670. Price: $24.92 |
| 34 |
69-1540-03 |
PIVOT-SPRING, TORSION This part replaces 69-1540. Price: $122.27 |
| 35 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 36 |
32136-2 |
NUT-SHH Price: $3.55 |
| 37 |
86-8100-01 |
BALL JOINT ASM This part replaces 21-0160. Price: $137.53 |
| 38 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 39 |
69-9580 |
LH FRONT LIFT ARM ASM Price: $1,165.75 |
| 40 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 41 |
3290-378 |
TIE-CABLE Price: $0.79 |

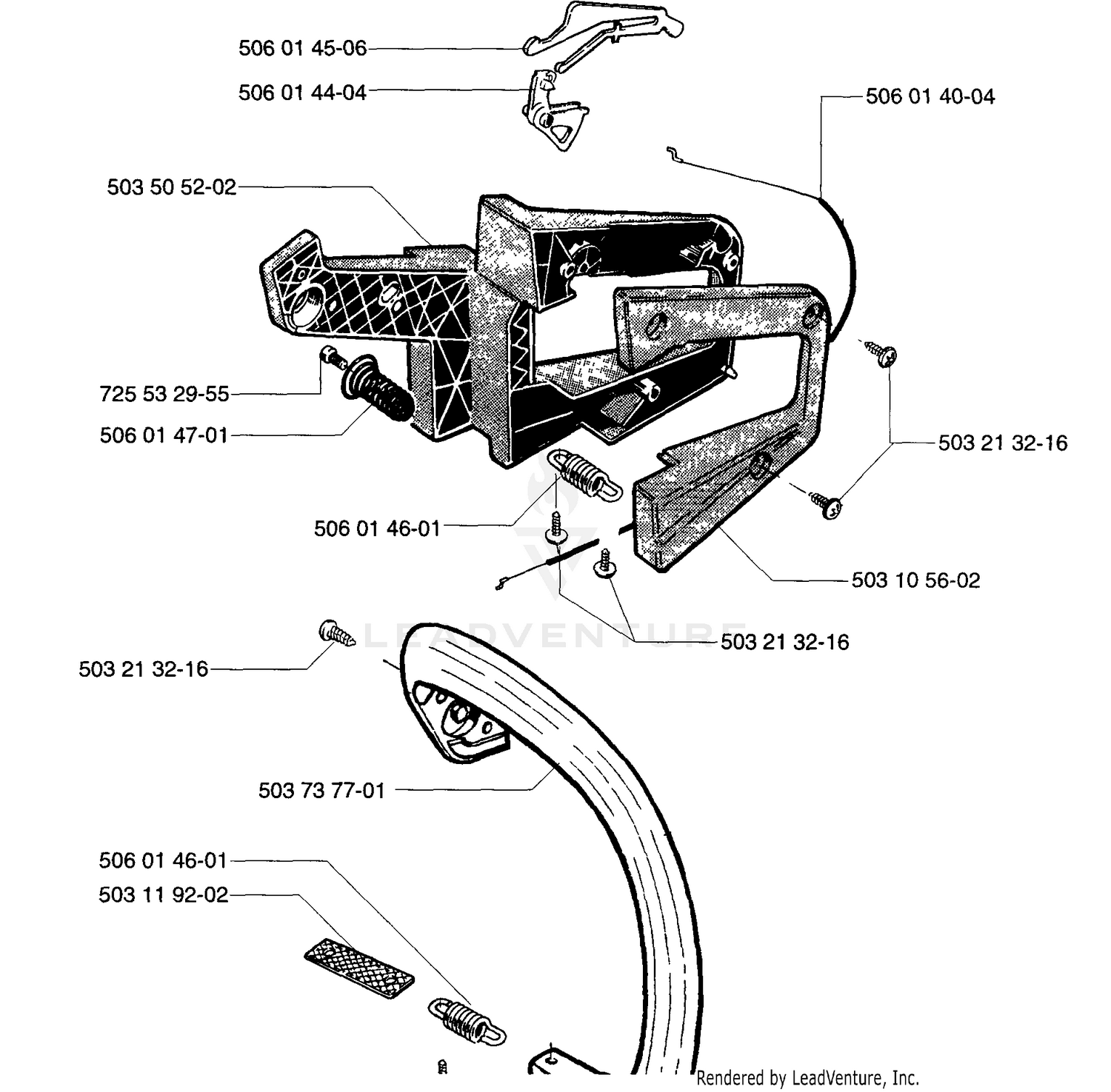

| 503105602 |
503105602 |
HANDLE LEFT HAND Price: $40.99 |
| 503119202 |
503119202 |
STRAP Price: $5.99 |
| 503213216 |
503213216 |
SCREW Price: $2.99 |
| 503505202 |
503505203 |
HANDLE RIGHT This part replaces 503505202. Price: $61.99 |
| 503737701 |
503737701 |
FRONT HANDLE Price: $44.99 |
| 506014404 |
506014404 |
THROTTLE TRIGGER Price: $9.99 |
| 506014506 |
506014506 |
THROTTLE LOCK Price: $6.99 |
| 506014601 |
506014601 |
ANTIVIBE SPRING Price: $9.99 |
| 506014701 |
506014701 |
ANTIVIBE SPRING Price: $9.99 |
| 725532955 |
725532955 |
SCREW MC6S 5X16 Price: $6.99 |
