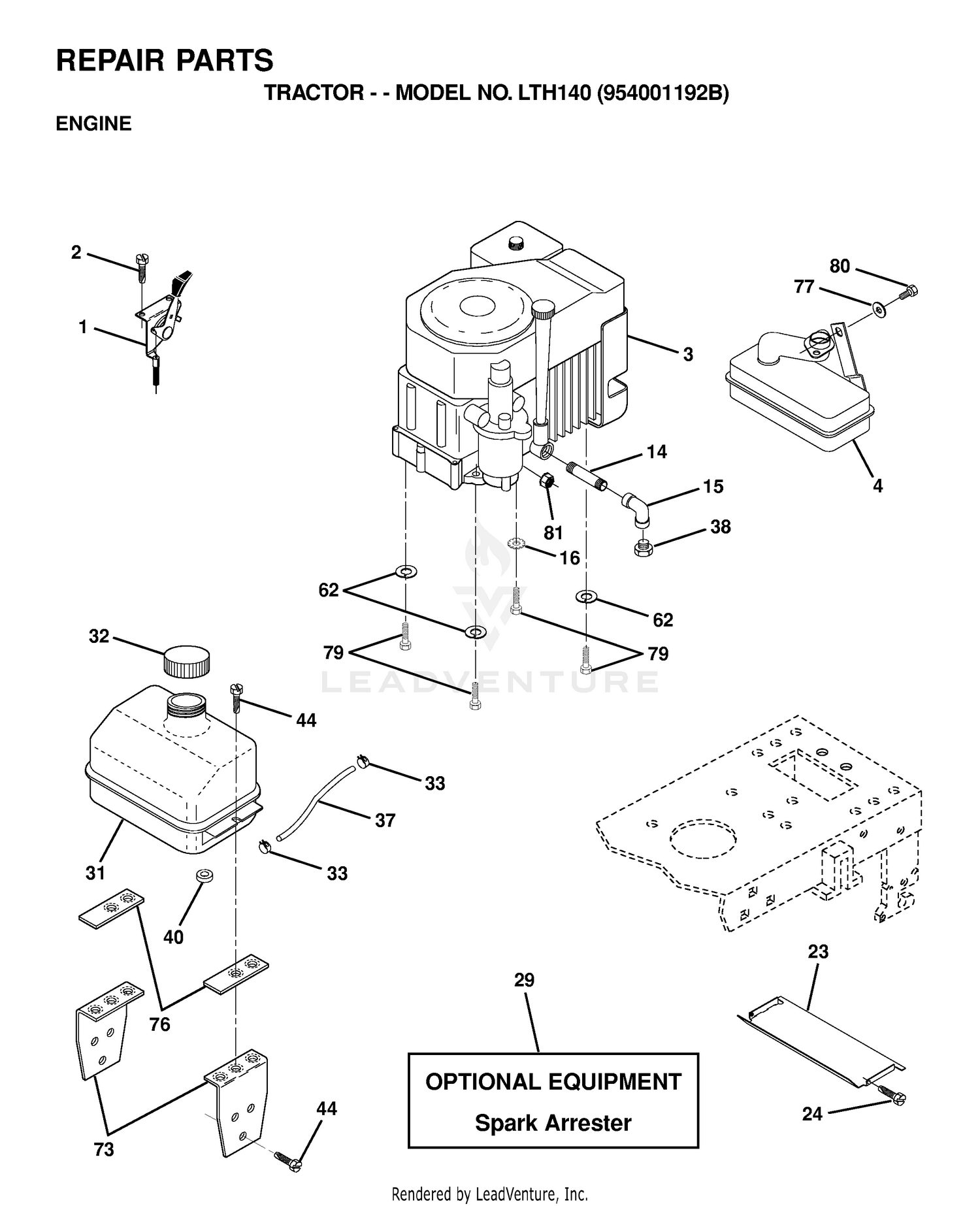

| Ref | Part Number | Description |
|---|
| 1 |
104-4258 |
VALVE-VACUATOR Price: $20.26 |
| 1 |
532132753 |
THROTTLE CONTROL Price: $13.81 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
104-4259 |
COVER Price: $222.30 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT This part replaces 532137350. Price: $99.99 |
| 6 |
108-3814 |
FILTER-AIR Price: $26.19 |
| 14 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
532128953 |
HEAT SHIELD Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532008548 |
FUEL LINE T This part replaces 532101335. Price: $6.99 |
| 40 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 44 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 73 |
532128229 |
BRACKET FUEL TANK T Price: $3.99 |
| 76 |
532128230 |
CLAMP, FUEL TANK T Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 79 |
740108025 |
This part replaces 532125398. Price: $2.38 |
| 80 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
