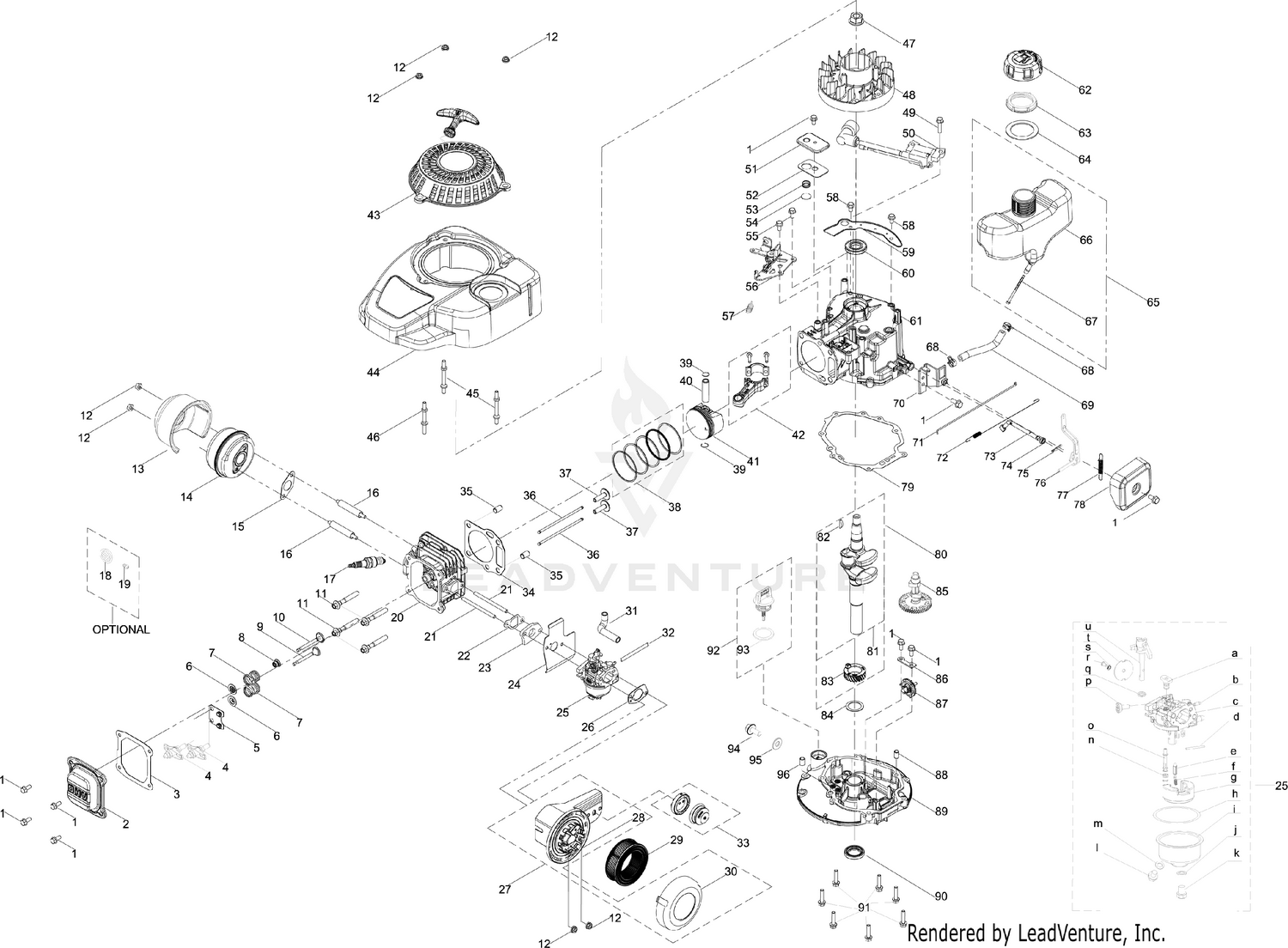

| Ref | Part Number | Description |
|---|
| a |
None |
Idle Jet Assembly |
| b |
None |
Primer Port |
| c |
None |
Carburetor Body |
| d |
711-06043A |
FLOAT PIN This part replaces 711-06043. Price: $0.56 |
| e |
793P00165A |
NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| f |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| g |
731P09132A |
FLOAT Price: $4.45 |
| h |
951-11589A |
FUEL BOWL O-RING Price: $6.04 |
| i |
908-05001 |
FLOAT BOWL Price: $7.16 |
| j |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| k |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| l |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| m |
951-11349A |
FUEL DRAIN PLUG GASKET Price: $3.66 |
| n |
None |
Main Jet |
| o |
None |
Emulsion Tube |
| p |
710P06038A |
SPEED IDLE SCREW Price: $2.45 |
| q |
721P04427A |
THROTTLE SHAFT GASKET Price: $2.45 |
| r |
710-06230 |
SCREW-3Mx6 Price: $2.98 |
| s |
736P05209A |
LOCK WASHER 3MM Price: $2.45 |
| t |
None |
Throttle Plate |
| u |
None |
Throttle Shaft |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
908-05094 |
VALVE COVER Price: $8.96 |
| 3 |
751P18586A |
VALVE COVER GASKET Price: $3.94 |
| 4 |
951-11606A |
ROCKER ARM Price: $29.12 |
| 5 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 6 |
908-04094A |
VALVE RETURN SPRING Price: $3.20 |
| 7 |
751P12004A |
VALVE SPRING Price: $1.74 |
| 8 |
921-04705 |
INTAKE VALVE SEAL Price: $5.48 |
| 9 |
951-14641A |
EXHAUST VALVE Price: $8.71 |
| 10 |
951-14640A |
INTAKE VALVE Price: $8.71 |
| 11 |
710-06200 |
SCREW M8 x 54 GR10 Price: $5.59 |
| 12 |
712-05015 |
HEX NUT Price: $5.78 |
| 13 |
951-14752 |
MUFFLER SHIELD Price: $11.49 |
| 14 |
951-14692A |
MUFFLER ASSEMBLY Price: $14.44 |
| 15 |
951-14427A |
MUFFLER GASKET Price: $6.38 |
| 16 |
710-06204 |
STUD M6-1 x 76 Price: $5.38 |
| 17 |
951-14437A |
SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 18 |
951-10351A |
SPARK ARRESTOR Price: $48.91 |
| 19 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
| 20 |
951-14689 |
CYLINDER HEAD Price: $107.46 |
| 21 |
710-06205 |
STUD M6 x 98 Price: $5.59 |
| 22 |
751P18606A |
CARBURETOR INSULATOR GASKET This part replaces 751P18606. Price: $4.14 |
| 23 |
951-14698 |
CARBURETOR INSULATOR Price: $9.11 |
| 24 |
921-04706A |
CARBURETOR GASKET This part replaces 921-04706. Price: $5.10 |
| 25 |
651P06675H |
CARBURETOR This part replaces 651P06675. Price: $48.20 |
| 26 |
951-14419A |
AIR FILTER BASE GASKET Price: $7.08 |
| 27 |
651P05587 |
AIR FILTER ASSEMBLY Price: $8.72 |
| 28 |
731P10637 |
AIR FILTER BASE Price: $1.80 |
| 29 |
951-14628A |
PAPER AIR FILTER Price: $12.24 |
| 30 |
731P10360 |
AIR FILTER COVER Price: $1.94 |
| 31 |
735-05055 |
BREATHER HOSE Price: $5.48 |
| 32 |
735-05056 |
PRIMER HOSE Price: $6.38 |
| 33 |
951-05177A |
PRIMER ASSEMBLY This part replaces 951-05177. Price: $12.83 |
| 34 |
751P18607A |
HEAD GASKET This part replaces 751P18607. Price: $4.14 |
| 35 |
715P04090A |
PIN (10MMx16MM) Price: $2.95 |
| 36 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 37 |
951-11607A |
TAPPET Price: $6.12 |
| 38 |
951-14433A |
PISTON RING SET Price: $34.45 |
| 39 |
951-11603A |
WRIST PIN CLIP Price: $2.90 |
| 40 |
951-14435A |
PISTON PIN Price: $9.22 |
| 41 |
951-14434A |
PISTION Price: $56.68 |
| 42 |
951-05163A |
CONNECTING ROD This part replaces 951-05163. Price: $14.09 |
| 43 |
951-05320A |
STARTER RECOIL ASSEMBLY Price: $57.94 |
| 44 |
931-05602A |
ENGINE SHROUD This part replaces 931-05602. Price: $22.87 |
| 45 |
710-06208 |
STUD M6 x 75 Price: $5.59 |
| 46 |
710-06209 |
STUD M6 x 73 Price: $5.59 |
| 47 |
712-04287A |
FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 48 |
925-06190A |
ENGINE FLYWHEEL This part replaces 925-06190. Price: $84.73 |
| 49 |
710-04919 |
BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 50 |
925-07231 |
IGNITION COIL ASSEMBLY Price: $64.63 |
| 51 |
908-05092 |
BREATHER COVER PLATE Price: $5.48 |
| 52 |
921-04703 |
BREATHER COVER GASKET Price: $6.38 |
| 53 |
732-04718A |
BREATHER VALVE SPRING Price: $3.30 |
| 54 |
951-11614A |
BREATHER VALVE Price: $3.13 |
| 55 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 56 |
951-05551 |
ENGINE BRAKE ASSEMBLY Price: $28.97 |
| 57 |
932-05580 |
BRAKE SPRING Price: $5.35 |
| 58 |
710-04914 |
BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 59 |
908-05269 |
SHROUD COVER PLATE Price: $7.23 |
| 60 |
921-04700A |
UPPER SEAL Price: $7.39 |
| 61 |
751P18608 |
CRANKCASE Price: $69.30 |
| 62 |
651P05182 |
FUEL CAP ASSEMBLY Price: $2.60 |
| 63 |
931-10290A |
FUEL TANK NUT Price: $4.85 |
| 64 |
951-14406A |
FUEL TANK GROMMET Price: $9.68 |
| 66 |
731P10383 |
FUEL TANK Price: $18.94 |
| 67 |
951-12296A |
FUEL FILTER Price: $8.68 |
| 68 |
951-11700A |
CARBURETOR HOSE CLAMP Price: $3.60 |
| 69 |
735-05053A |
FUEL HOSE Price: $8.96 |
| 70 |
908-05135 |
COMPONENT BRACKET Price: $8.22 |
| 71 |
951-14696 |
THROTTLE LINKAGE Price: $6.51 |
| 72 |
732P05188A |
THROTTLE LINKAGE SPRING This part replaces 732-05188. Price: $6.05 |
| 73 |
951-11621 |
GOVERNOR ARM SHAFT Price: $8.68 |
| 74 |
951-11902A |
OIL SEAL Price: $3.36 |
| 75 |
714-04078A |
COTTER PIN Price: $3.19 |
| 76 |
951-05160A |
GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 77 |
951-14411 |
GOVERNOR SPRING Price: $8.34 |
| 78 |
931-10287 |
GOVERNOR SHIELD Price: $8.96 |
| 79 |
751P18609A |
CRANKCASE COVER GASKET This part replaces 751P18609. Price: $5.02 |
| 81 |
751P15798 |
CRANKSHAFT Price: $45.56 |
| 82 |
751P10307A |
WOODRUFF KEY Price: $2.01 |
| 83 |
931-10288A |
GEAR Price: $8.18 |
| 84 |
736-04491A |
THRUST WASHER Price: $3.30 |
| 85 |
751P18628A |
CAMSHAFT This part replaces 751P18628. Price: $17.80 |
| 86 |
951-11609A |
GOVERNOR GEAR MOUNTING PLATE Price: $3.94 |
| 87 |
951-11549 |
GOVERNOR GEAR/SHAFT ASSEMBLY Price: $10.58 |
| 88 |
715-04092A |
DOWEL PIN 7 X 14 Price: $2.97 |
| 89 |
951-14688A |
CRANKCASE COVER This part replaces 951-14688. Price: $66.28 |
| 90 |
951-11545A |
LOWER CRANKSHAFT SEAL Price: $9.07 |
| 91 |
710-04943 |
BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 92 |
951-05161 |
DIPSTICK ASSEMBLY Price: $8.96 |
| 93 |
721P04704 |
DIPSTICK O-RING Price: $1.80 |
| 94 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 95 |
736-04440A |
FLAT WASHER Price: $6.01 |
| 96 |
715-04096A |
DOWEL PIN 9 X 14 Price: $3.66 |
