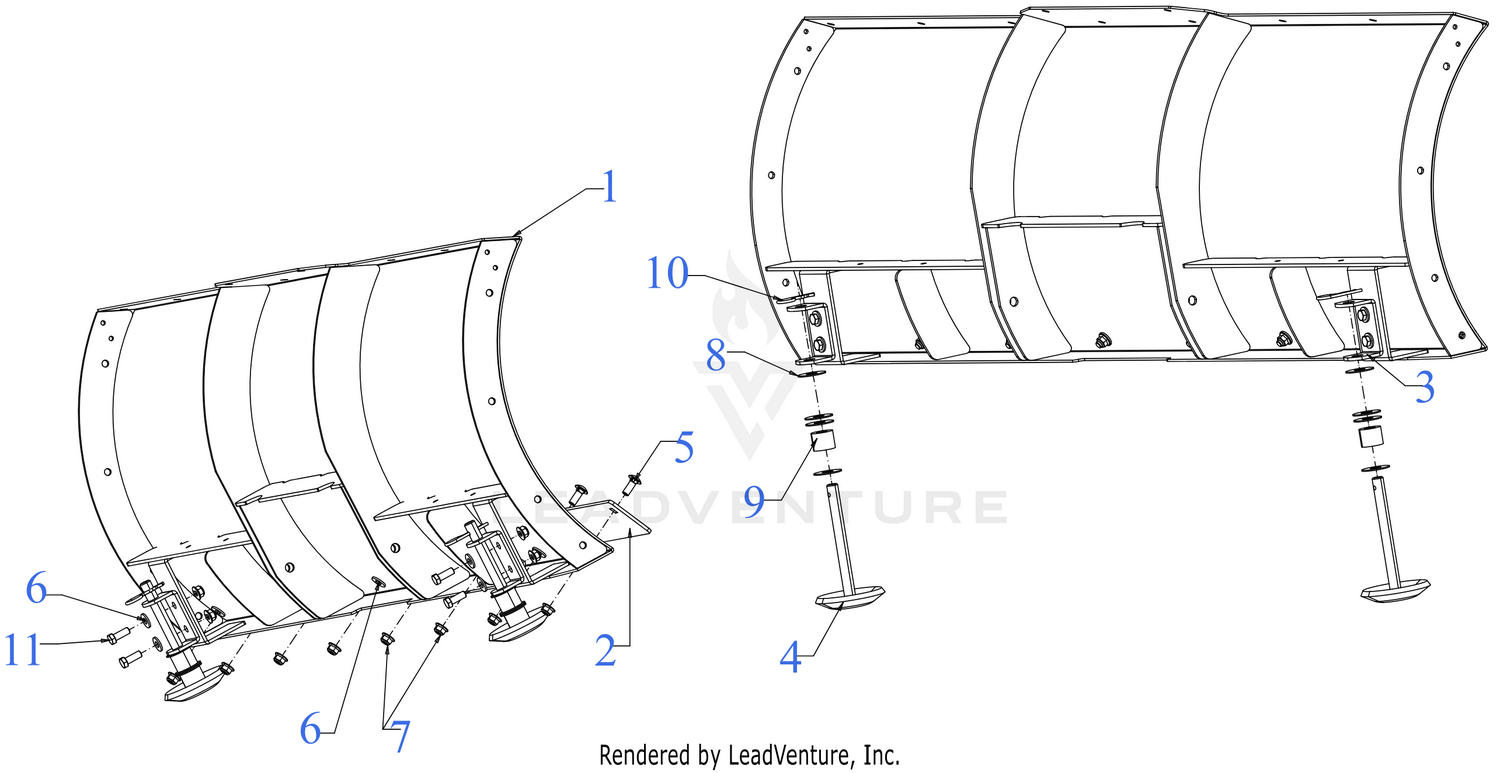

Blade
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | N/A | SKID FOOT BRACKET |
| 4 | MT-SFUT-UTV-P | SKID FEET SET (2 PIECES) Price: $119.09 |
| 5 | 710-3097 | SCREW 3/8-16X1.0 GR5 Price: $5.79 |
| 6 | 736-0262 | FLAT WASHER .385X.870X.090 Price: $3.66 |
| 7 | 712-04065 | NUT Price: $3.68 |
| 8 | 736-0285 | FLAT WASHER-.63IDX1.595ODX.62 Price: $3.89 |
| 9 | N/A | RUBBER BUSHING |
| 11 | 710-0514 | SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 39B70084100 | 72" | SNOW BLADE Not Available Price: 39B70084100 |
