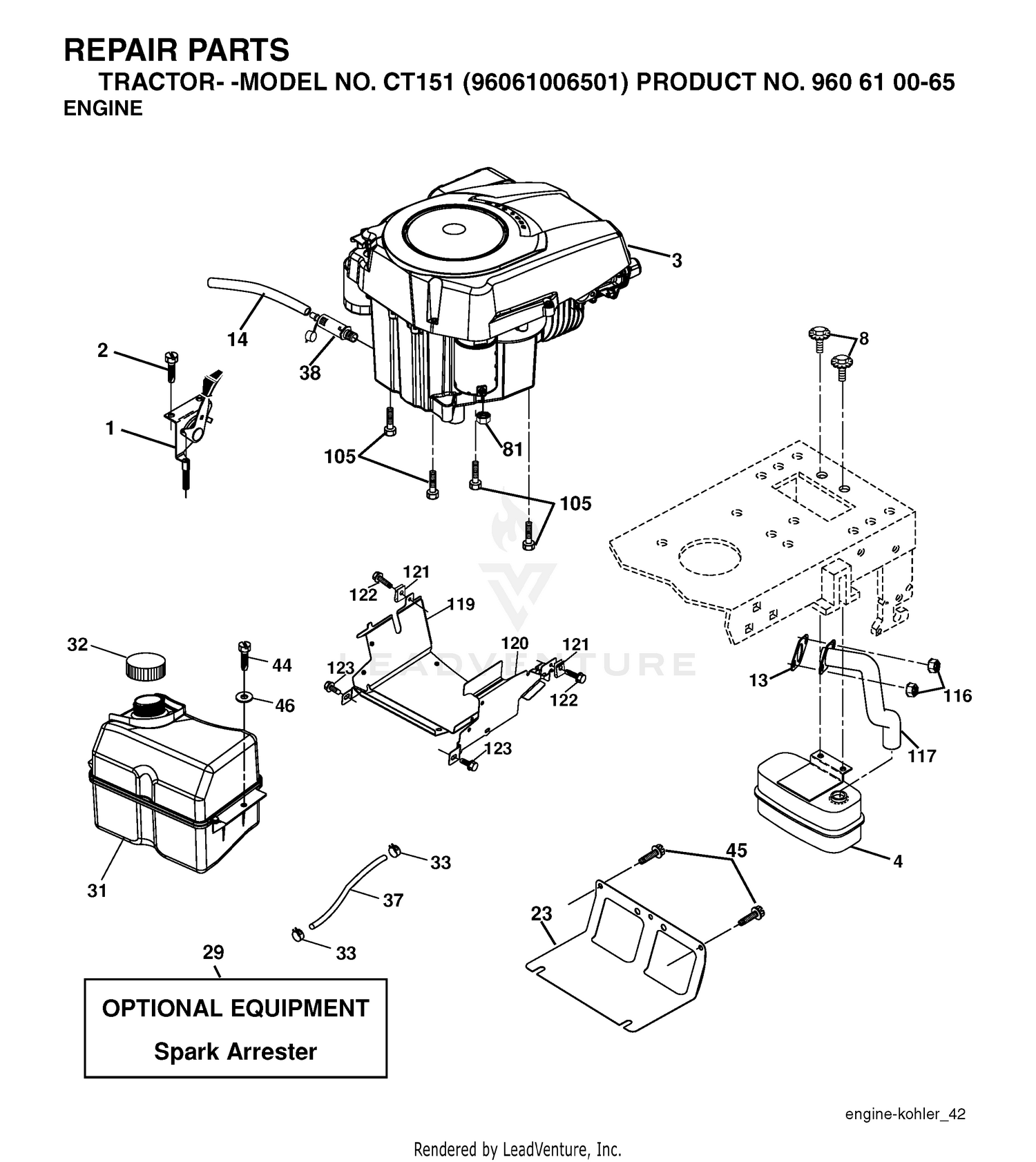

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 13 |
130-0564 |
FOAM-UPHOLSTERY, REAR Price: $100.51 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 14 |
136-2179 |
FOAM-INTERIOR, RH (LOWER) Price: $41.78 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
136-2178 |
FOAM-UPHOLSTERY, REAR (LH) Price: $31.94 |
| 16 |
130-0561 |
FOAM-UPHOLSTERY, SIDE (RH) Price: $33.95 |
| 17 |
130-0570 |
FOAM-UPHOLSTERY, REAR (LH) Price: $38.98 |
| 18 |
121-8161-03 |
PLATE-PANEL, ACESS Price: $15.76 |
| 19 |
117-5976 |
KNOB-HANDLE Price: $2.17 |
| 20 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 23 |
130-5838 |
FOAM-INTERIOR, RH (UPPER) Price: $22.46 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 26 |
132-3495 |
RETAINER-COVER Price: $16.55 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 117 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 119 |
532400594 |
NEEDS DESCRIPTION Price: Call Us |
| 120 |
532400595 |
NEEDS DESCRIPTION Price: Call Us |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 122 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 123 |
812670508 |
NEEDS DESCRIPTION Price: Call Us |
