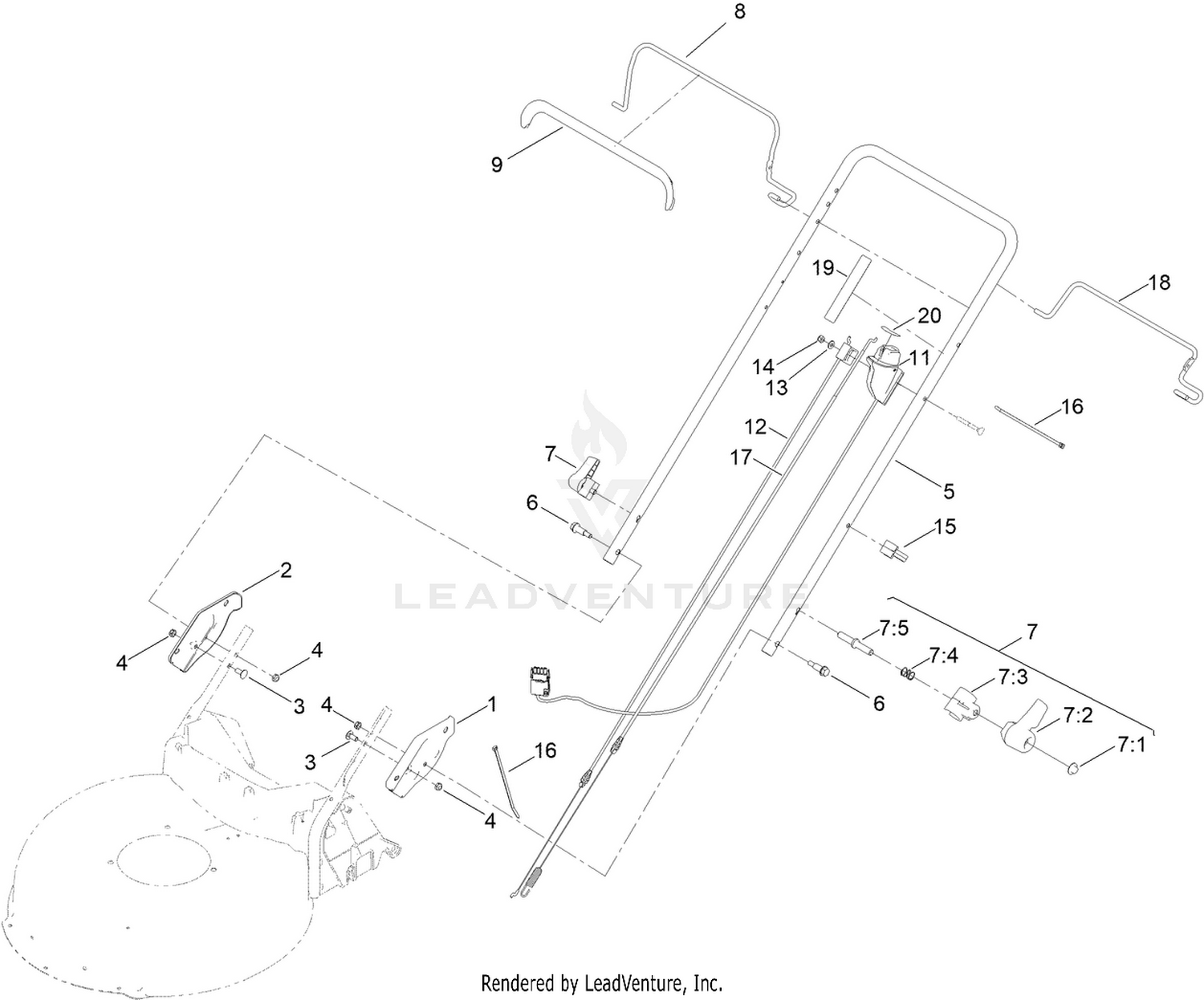

Handle Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-3973-05 | PLATE-HANDLE, LH Price: $15.99 |
| 2 | 140-3974-05 | PLATE-HANDLE, RH Price: $15.99 |
| 3 | 137-3061 | BOLT-CARR Price: $0.59 |
| 4 | 137-3089 | NUT-HEX Price: $0.39 |
| 5 | 131-4569-05 | HANDLE Price: $48.99 |
| 6 | 140-3759 | BOLT-SHOULDER, HHF Price: $1.19 |
| 7 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 8 | 138-3269-03 | BAIL-BRAKE Price: $13.99 |
| 9 | 127-6847 | COVER-BAIL Price: $3.99 |
| 11 | 140-3800 | SWITCH STARTER ASM Price: $37.99 |
| 12 | 137-9169 | CABLE-BRAKE, HP Price: $26.99 |
| 13 | 139-1699 | WASHER-FLAT Price: $0.89 |
| 14 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 15 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 16 | 614249 | TIE-CABLE Price: $0.79 |
| 17 | 127-0733 | CABLE-TRACTION Price: $17.99 |
| 18 | 131-0835-03 | BAIL-TRACTION Price: $14.99 |
| 19 | 144-3175 | DECAL-CONTROLS (60V START) Price: $6.49 |
