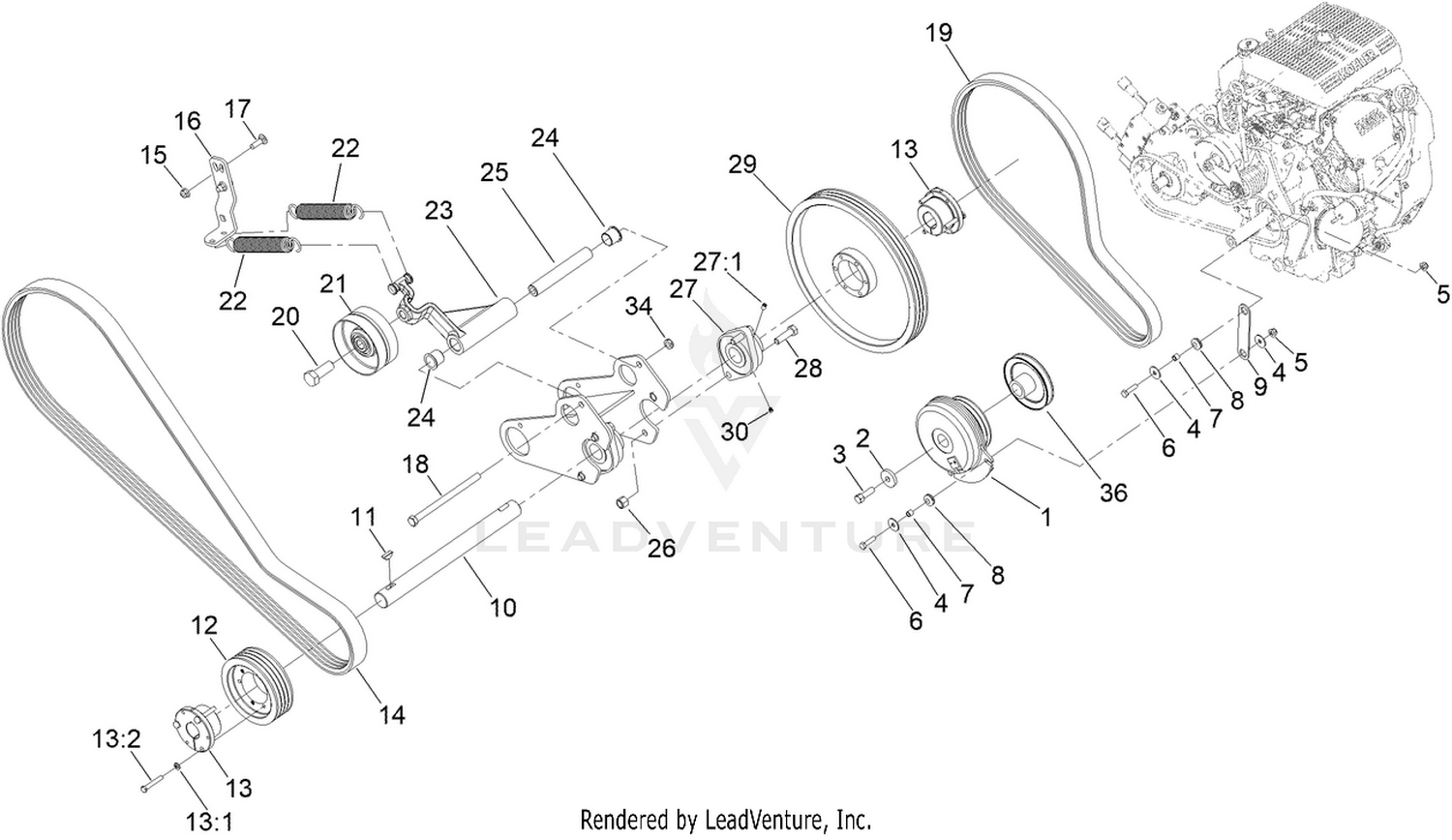

| Ref | Part Number | Description |
|---|
| 1 |
138-5986 |
CLUTCH-ELECTRIC Price: $936.99 |
| 2 |
1-543610 |
WASHER-CLUTCH Price: $4.79 |
| 3 |
26-0671 |
SCREW-HH Price: $7.99 |
| 4 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 6 |
322-6 |
SCREW-HH Price: $0.45 |
| 7 |
1-633545 |
SPACER Price: $2.39 |
| 8 |
1-633630 |
GROMMET Price: $5.29 |
| 9 |
107-3382 |
STRAP-CLUTCH Price: $5.31 |
| 10 |
105-0975 |
JACKSHAFT Price: $225.59 |
| 11 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 12 |
140-8880 |
PULLEY-3V, 4 GROOVE Price: $242.30 |
| 13 |
59-3790 |
BUSHING-LOCK, TAPER Price: $238.50 |
| 14 |
140-8882 |
BELT-V, BANDED Price: $86.14 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
105-1118-03 |
ARM-SPRING, IDLER Price: $52.06 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 18 |
325-36 |
SCREW-HH Price: $7.20 |
| 19 |
105-0989 |
BELT-3V Price: $69.51 |
| 20 |
328-24 |
SCREW-HH Price: $23.99 |
| 21 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 22 |
106-8933 |
SPRING-EXTENSION Price: $35.61 |
| 23 |
105-1132-03 |
ARM-IDLER Price: $156.29 |
| 24 |
126-1963 |
BUSHING-PIVOT Price: $6.69 |
| 25 |
105-1172 |
TUBE-PIVOT, IDLER Price: $55.73 |
| 26 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 27 |
105-0962 |
BEARING-MOUNT, FLANGE Price: $64.56 |
| 28 |
325-7 |
SCREW-HH Price: $1.53 |
| 29 |
105-0977 |
PULLEY-3V Price: $287.31 |
| 30 |
302-59 |
PLUG-THREADED Price: $5.86 |
| 34 |
3296-45 |
NUT-HEX Price: $3.79 |
