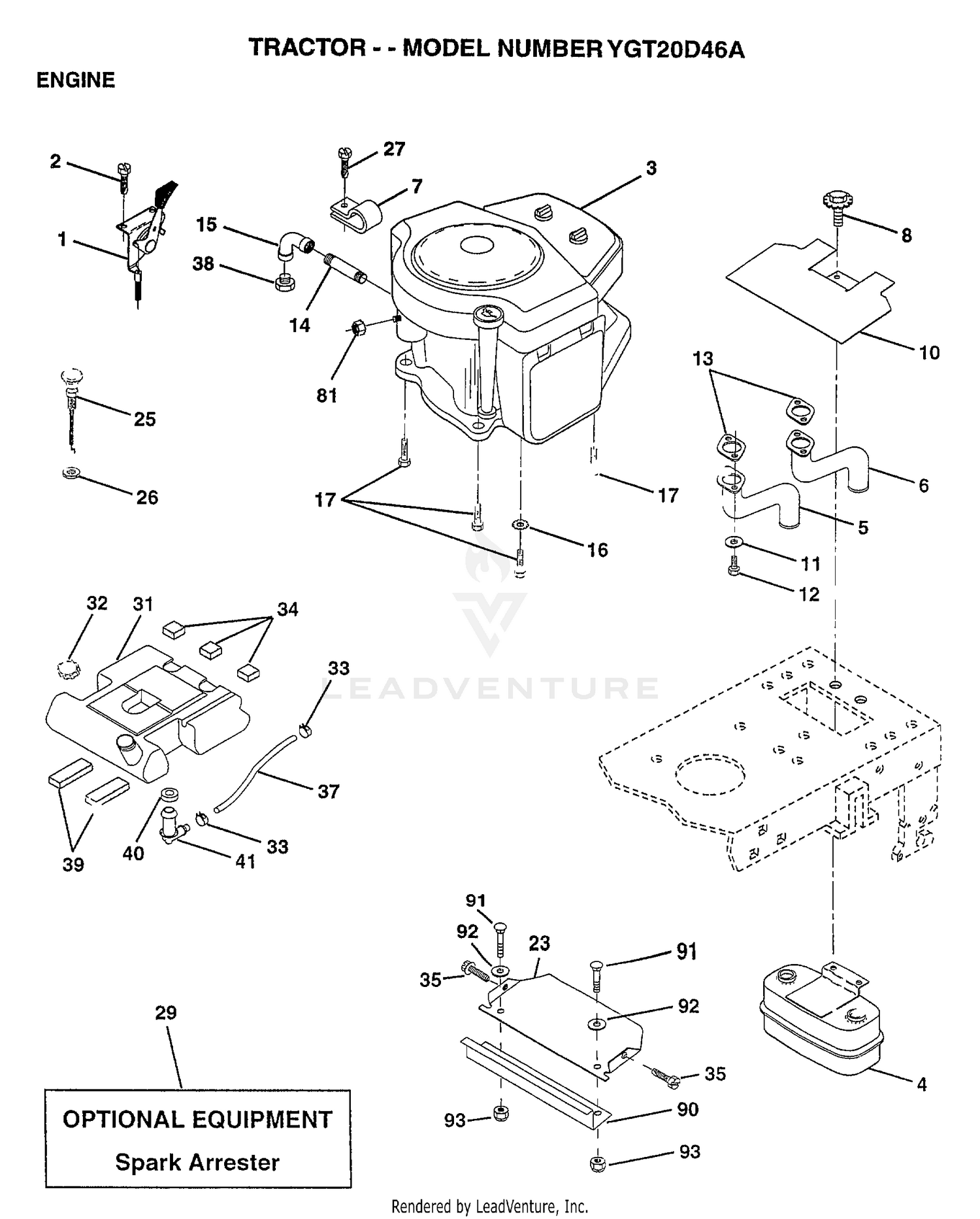

| Ref | Part Number | Description |
|---|
| 1 |
132748 |
SUB= 532132748 Price: Call Us |
| 1 |
92-1354 |
CAP-END Price: $2,256.45 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
98-7897 |
VALVE - RELIEF This part replaces 92-1355. Price: $307.38 |
| 3 |
460707 |
ENGINE B&S Price: Call Us |
| 4 |
149723 |
MUFFLER.TW.LOTONE Price: Call Us |
| 4 |
75-0240 |
O-RING Price: $2.36 |
| 5 |
110-6342 |
SPRING This part replaces 75-0140. Price: $9.45 |
| 5 |
144069 |
EXHAUST.B&S.18.LH Price: Call Us |
| 6 |
144068 |
EXHAUST.B&S.18.RH Price: Call Us |
| 6 |
98-7897 |
VALVE - RELIEF This part replaces 84-0550. Price: $307.38 |
| 7 |
138129 |
CLAMP.TUBE.DBL.EN Price: Call Us |
| 7 |
92-1356 |
VALVE-SCREW Price: $147.12 |
| 8 |
150176 |
BOLT.5/16-18.UNC Price: Call Us |
| 8 |
84-0480 |
POPPET-RELIEF, CHARGE Price: $54.48 |
| 9 |
84-0490 |
SPRING-COMPRESSION Price: $15.55 |
| 10 |
145552 |
SHIELD.HEAT. Price: Call Us |
| 10 |
92-1353 |
SHIM KIT Price: $36.78 |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
28-3570 |
O-RING Price: $6.06 |
| 12 |
74780412 |
SUB= 74780414 Price: Call Us |
| 12 |
84-0500 |
CHARGE RELIEF PLUG ASM Price: $37.39 |
| 13 |
272250 |
GASKET MUFFLER Price: Call Us |
| 13 |
75-0500 |
BEARING-NEEDLE Price: $83.78 |
| 14 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 14 |
84-0210 |
GASKET-CAP, END Price: $27.88 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
94-3975 |
PIN This part replaces 75-0480. Price: $5.80 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
84-0460 |
SCREW-HWHTF Price: $4.27 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
84-0440 |
COVER-TRUNNION Price: $235.07 |
| 18 |
84-0430 |
O-RING Price: $6.94 |
| 19 |
84-0270 |
SPACER-TRUNNION Price: $43.60 |
| 20 |
84-0570 |
SHIM-TRUNNION, COMPOSITE Price: $44.85 |
| 21 |
84-0260 |
BEARING-ROLLER, TAPERED Price: $135.12 |
| 22 |
353-551 |
PLUG-HH Price: $18.48 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 23 |
237-80 |
O-RING Price: $6.10 |
| 24 |
84-0360 |
WASHER Price: $3.60 |
| 25 |
84-0330 |
SCREW-HH Price: $9.87 |
| 26 |
84-0300 |
SHAFT-PUMP Price: $416.83 |
| 27 |
84-0310 |
DISCONTINUED Price: Call Us |
| 28 |
84-0320 |
RING-RETAINING Price: $1.32 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
84-0400 |
SEAL-LIP Price: $20.85 |
| 30 |
84-0410 |
DISCONTINUED Price: Call Us |
| 31 |
151346 |
TANK FUEL REAR Price: Call Us |
| 31 |
28-3520 |
O-RING Price: $8.44 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 32 |
84-0380 |
RING-RETAINING, INT. Price: $12.75 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
84-0240 |
HOUSING-PUMP Price: $1,872.02 |
| 34 |
106082X |
PAD-SPACER LT Price: Call Us |
| 34 |
84-0470 |
SEAL-LIP Price: $41.78 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
84-0450 |
COVER-TRUNNION Price: $352.66 |
| 36 |
84-0250 |
SWASHPLATE-VARIABLE Price: $1,011.82 |
| 37 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 37 |
8543R |
FUEL LINE T Price: Call Us |
| 38 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 39 |
109227X |
PAD IDLER TI Price: Call Us |
| 39 |
84-0280 |
PLATE-VALVE, RH Price: $391.57 |
| 40 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 40 |
75-0510 |
PIN Price: $8.40 |
| 41 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 41 |
92-1358 |
DISCONTINUED Price: Call Us |
| 42 |
92-1352 |
PLUG Price: $30.00 |
| 81 |
128861 |
NUT Price: Call Us |
| 90 |
159520 |
GUARD-DEBRIS Price: Call Us |
| 91 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 92 |
19091016 |
WASHER Price: Call Us |
