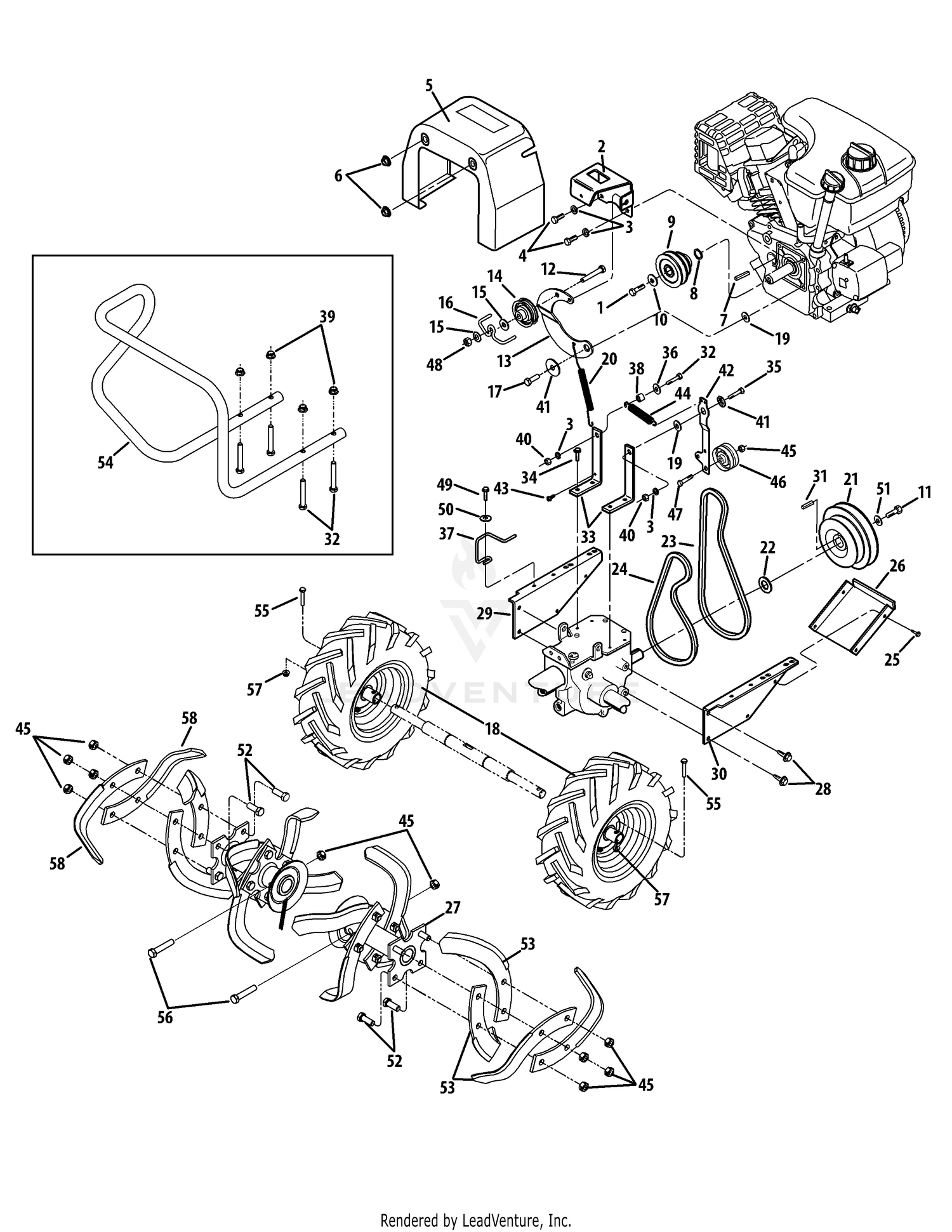

| Ref | Part Number | Description |
|---|
| 1 |
710-0331 |
Hex Screw, 3/8-24 x 2.25 Price: $6.01 |
| 2 |
786-04070-0637 |
BELT COVER BRACKET Not Available Price: |
| 3 |
936-0119 |
Lockwasher, 5/16 Price: $4.29 |
| 4 |
710-0107 |
HEX SCREW 5/16-24 x .50 Not Available Price: |
| 5 |
731-05290 |
Cover Price: $23.70 |
| 6 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 7 |
714-0139 |
Key, 3/16-2 (A) Price: $7.98 |
| 8 |
736-04187 |
Shim Price: $4.36 |
| 9 |
619-04130 |
Engine Pulley Price: $48.42 |
| 10 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 11 |
710-0672 |
Hex Head Screw, 5/16-24 x 1.25 Price: $3.85 |
| 12 |
710-3103 |
Hex Head Screw, 5/16-18 x 2 Price: $4.02 |
| 13 |
786-04276 |
Reverse Idler Arm Price: $14.46 |
| 14 |
756-04169 |
Reverse Idler Pulley Price: $22.24 |
| 15 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 16 |
732-04081 |
Wire Formed Belt Guide Price: $9.09 |
| 17 |
710-0888 |
Hex Head Screw, 5/16-24 x 1 Price: $3.86 |
| 18 |
634P06425 |
WHEEL ASSEMBLY (13 x 5 x 6) (SBD GRAY) This part replaces 934-04232. Price: $148.42 |
| 19 |
736-3078 |
Flat Washer, 1-1/8 Price: $3.95 |
| 20 |
732-04077 |
Reverse Return Spring Price: $9.20 |
| 21 |
619-04123 |
Transmission Pulley Price: $145.54 |
| 22 |
736-04079 |
Support Washer Price: $4.13 |
| 23 |
954-04095 |
Reverse Clutch Belt Price: $17.19 |
| 24 |
954-04094 |
Forward Clutch Belt Price: $28.34 |
| 25 |
1900396 |
SCREW-HW M10-32X.5 Not Available Price: |
| 26 |
786-04080-0638 |
Belts/Pulleys Guard Price: $18.41 |
| 27 |
686-04067-0638 |
Tine Holder Not Available Price: |
| 28 |
710-04043 |
Hex Flange Screw, 5/16-18 x 3/4 Price: $3.96 |
| 29 |
786-04066-0637 |
ENGINE SUPPORT (LH) Not Available This part replaces 1916797001. Price: |
| 30 |
786-04067-0637 |
ENGINE SUPPORT (RH) Not Available Price: |
| 31 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 914-0133. Price: $4.20 |
| 32 |
710-0395 |
Hex Head Screw, 5/16-18 x 2-1/4 Price: $4.08 |
| 33 |
1918774001 |
BRACKET-BELT COVER Not Available Price: |
| 34 |
710-1260A |
Hex Flange Screw, 5/16-18 x .75 Price: $3.34 |
| 35 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 36 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 37 |
732-04082 |
Belt Guide Price: $9.67 |
| 38 |
GW-55088 |
BUSHING Not Available Price: |
| 39 |
712-04063 |
Hex Lock Nut, 5/16-18 Price: $3.56 |
| 40 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 41 |
748-04087A |
Shoulder Washer Price: $5.66 |
| 42 |
786-04275-0637 |
Forward Tiller Direction Idler Arm Price: $31.56 |
| 43 |
710-04460 |
Screw, self tapping, #10-24 This part replaces 1767754. Price: $3.95 |
| 44 |
732-04078 |
FORWARD RETURN SPRING Not Available Price: |
| 45 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 46 |
756-04170 |
Forward Idler Pulley Price: $31.29 |
| 47 |
710-0347 |
Screw, 3/8-16 x 1-3/4 Price: $4.39 |
| 48 |
912-0158 |
Hex Lock Nut, 5/16-18 Price: $2.83 |
| 49 |
1754128 |
Screw, 1/4-20 x 3/4 Not Available Price: |
| 50 |
736-0463 |
Washer, Flat, .25 x .630 x .0515 This part replaces 936-0463. Price: $3.91 |
| 51 |
736-04193 |
Belleville Washer, .827 x .331 x .098 Price: $5.94 |
| 52 |
710-0514 |
Hex Head Screw, 3/8-16 x 1 Price: $3.78 |
| 53 |
742-04223-0637 |
Tines - LH This part replaces 742-04223-0638. Price: $23.75 |
| 54 |
749-04193-0637 |
Bumper Price: $47.60 |
| 55 |
710-05289 |
Hex Head Screw, 1/4-20 x 1.5 Price: $4.83 |
| 56 |
710-3096 |
Hex Head Screw, 3/8-16 x 2 Price: $7.03 |
| 57 |
712-04064 |
Flange Hex Locknut, 1/4-20 Price: $3.64 |
