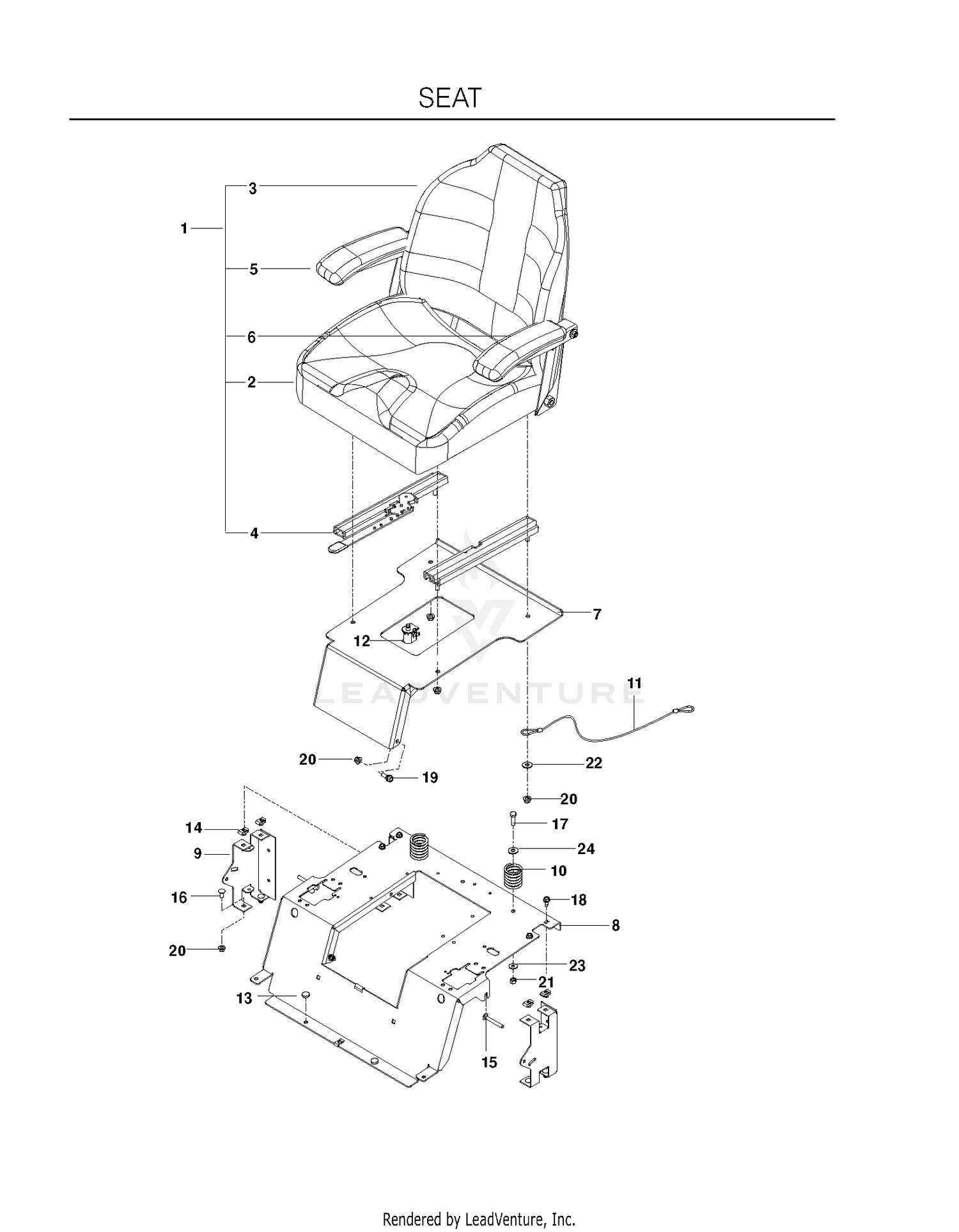

| Ref | Part Number | Description |
|---|
| 1 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 1 |
576867401 |
RP.SEAT.907.BLACK Price: $449.99 |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 2 |
576867402 |
SEAT.CUSHION.907.DIXON.BLACK Price: $229.99 |
| 3 |
106-1053 |
CLUTCH KIT This part replaces 100-2559. Price: $778.11 |
| 3 |
576867403 |
SEAT.BACK.907.DIXON.BLACK Price: $229.99 |
| 4 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 5 |
576702005 |
BLACK SELFSKIN-ARM PAD ONLY Price: $59.99 |
| 5 |
86-1740 |
SPACER Price: $19.95 |
| 6 |
576702006 |
LEFT SELFSKINNED 907 ARM W/BRK Price: $119.99 |
| 6 |
84-0780-01 |
PULLEY-SPINDLE Price: $290.34 |
| 7 |
253-154 |
SEAL-OIL Price: $5.48 |
| 7 |
576916802 |
PAN, SEAT ORG Price: $149.99 |
| 8 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 9 |
580308202 |
SUPPORT REAR SEAT BLACK This part replaces 574522702. Price: $19.99 |
| 9 |
69-1530 |
HOUSING-SPINDLE Price: $227.62 |
| 10 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 10 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 539110300. Price: $5.99 |
| 11 |
539103247 |
SEAT LANYARD Price: $14.99 |
| 11 |
95-4388 |
SPINDLE SHAFT ASM-CLUTCH Price: $279.56 |
| 12 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 12 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 539119741. Price: $12.99 |
| 13 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 13 |
86-0010-03 |
BLADE-19" This part replaces 86-0010. Price: $32.86 |
| 14 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 14 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 15 |
510422702 |
Screws This part replaces 510422701. Price: $1.99 |
| 16 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 16 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 17 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 17 |
71-2530 |
BEARING/SPACER KIT Price: $160.66 |
| 18 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 18 |
86-1480 |
WASHER Price: $4.82 |
| 19 |
539130896 |
SB 5/16-18 HEX HD GD5, BLK ZN Price: $9.99 |
| 20 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 21 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 22 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 23 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
