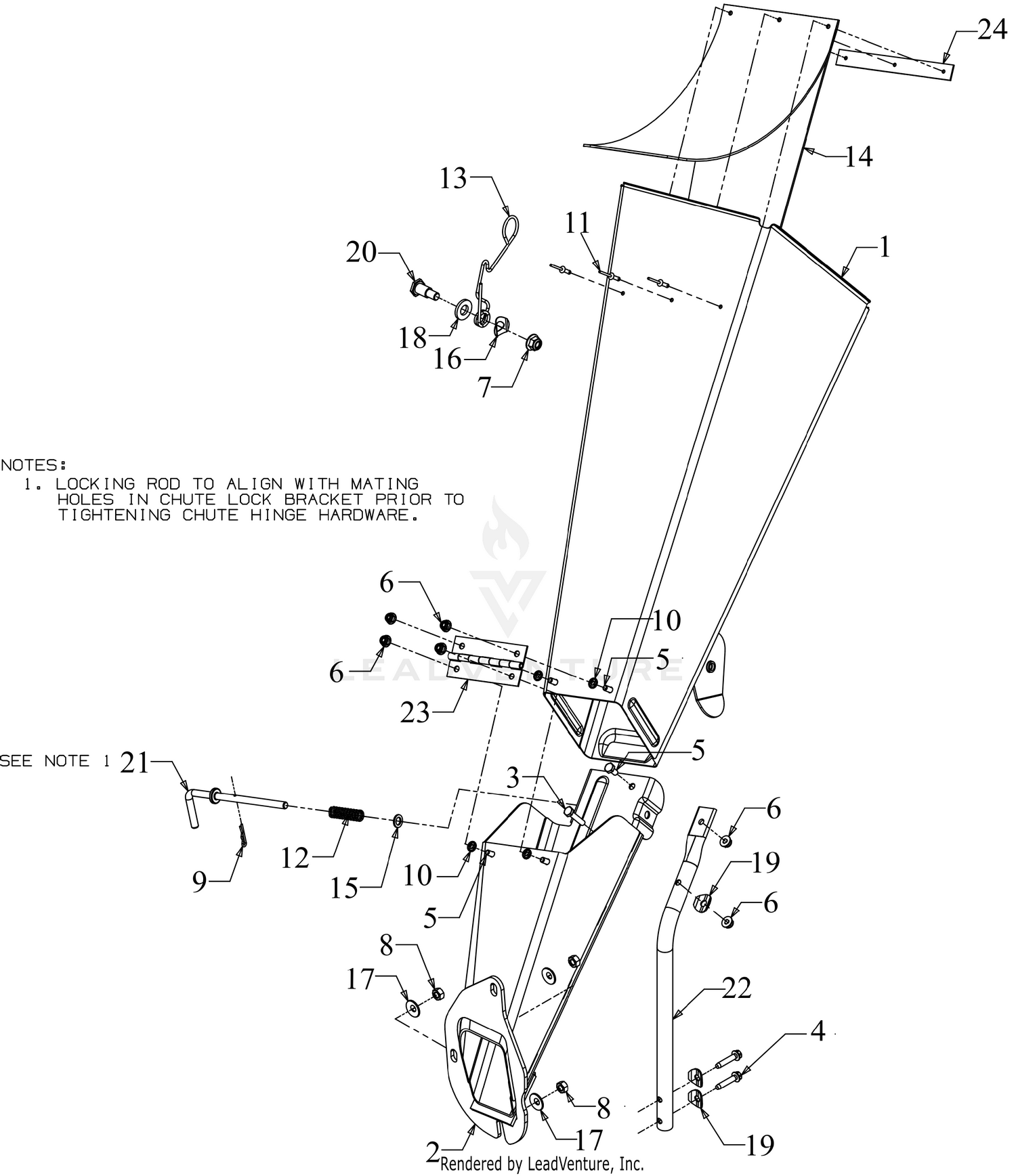

| Ref | Part Number | Description |
|---|
| 1 |
981-04006-0638 |
CHUTE ASSEMBLY (UPPER) (MTD RED) This part replaces 681-04006-0638. Price: $190.10 |
| 2 |
681-04117A-0638 |
LOWER CHIPPER CHUTE (MTD RED) This part replaces 681-04117-0638. Price: $137.05 |
| 3 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 4 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 5 |
710-3013 |
SCREW 1/4-20X.5 GR5 Price: $4.02 |
| 6 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 7 |
712-04065 |
NUT Price: $3.68 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 9 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 10 |
726-0233 |
RETAINER-BOLT .25ID x .50OD Price: $3.93 |
| 11 |
728-0175 |
RIVOT Price: $4.04 |
| 12 |
932-0306A |
COMPRESSION SPRING Price: $7.69 |
| 13 |
932-04167 |
TORSION SPRING Price: $9.41 |
| 14 |
735-0249A |
CHUTE FLAP Price: $21.78 |
| 15 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 16 |
736-0182 |
SPRING WASHER .50 x 1.0 x .022 Price: $3.90 |
| 17 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 18 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 936-0326. Price: $3.89 |
| 19 |
736-0451 |
Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 20 |
738-0430 |
SHOULDER SCREW .500 DIA x .685 Price: $10.55 |
| 21 |
947-04163 |
LOCK ROD Price: $12.87 |
| 22 |
749-1004-0637 |
Chipper Chute Support This part replaces 749-1004-0638. Price: $41.22 |
| 23 |
981-04032 |
Chipper Chute Hinge This part replaces 781-04032. Price: $11.28 |
