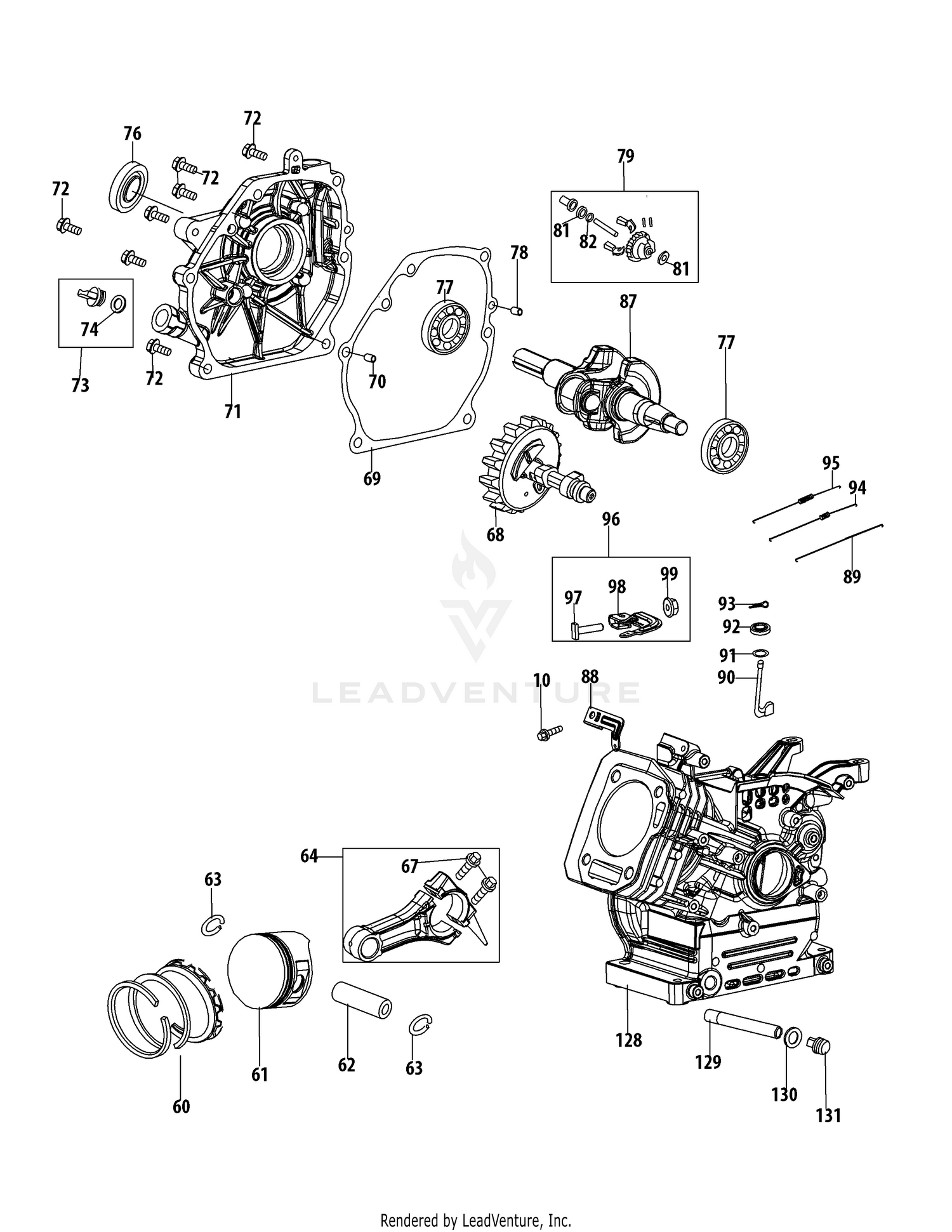

| Ref | Part Number | Description |
|---|
| 10 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 60 |
951-14317A |
PISTON RING SET This part replaces 951-14317. Price: $23.87 |
| 61 |
951-15052 |
PISTON This part replaces 751-15052. Price: $36.19 |
| 62 |
951-11633 |
PISTON PIN Price: $6.66 |
| 63 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 64 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 67 |
710-05116 |
Connecting Rod Bolt Price: $4.25 |
| 68 |
951-15054 |
CAMSHAFT Not Available This part replaces 751-15054. Price: |
| 69 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 70 |
715-04089 |
DOWEL PIN Not Available Price: |
| 71 |
951-15057 |
CRANKCASE COVER Not Available This part replaces 751-15057. Price: |
| 72 |
710-04932 |
Bolt M8×32 Price: $3.66 |
| 73 |
931-09966A |
OIL PLUG This part replaces 931-09966. Price: $4.81 |
| 74 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 76 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 77 |
951-15055 |
Bearing, 6205 This part replaces 751-15055. Price: $15.43 |
| 78 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 79 |
951-05292 |
Gear Governor Not Available This part replaces 651-05292. Price: |
| 81 |
936-05038 |
Washer 6.2×0.6×15 Price: $4.07 |
| 82 |
916-05003 |
Retaining Rings, Governor Shaft Price: $4.89 |
| 87 |
951-15056 |
CRANKSHAFT Not Available This part replaces 751-15056. Price: |
| 88 |
951-11104 |
Spring Bracket Price: $3.18 |
| 89 |
751P10665A |
THROTTLE LINKAGE This part replaces 951-10665. Price: $1.53 |
| 90 |
951-15053 |
GOVERNOR ARM SHAFT Not Available This part replaces 751-15053. Price: |
| 91 |
736-04461 |
O-Ring 5.2×1.9 Price: $3.50 |
| 92 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 93 |
714-04078 |
Cotter Pin This part replaces 714-04074. Price: $3.66 |
| 94 |
951-10954 |
Idle Spring Price: $5.68 |
| 95 |
951-15035 |
GOVERNOR SPRING This part replaces 751-15035. Price: $9.52 |
| 96 |
951-14089 |
Governor Lever Price: $6.67 |
| 97 |
710-04908 |
Bolt M6×21 Price: $5.65 |
| 98 |
951-11106 |
Governor Lever Price: $6.89 |
| 99 |
712-05015 |
Flange Nut M6 Price: $5.78 |
| 128 |
951-15058 |
CRANKCASE Not Available This part replaces 751-15058. Price: |
| 129 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 130 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 131 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
