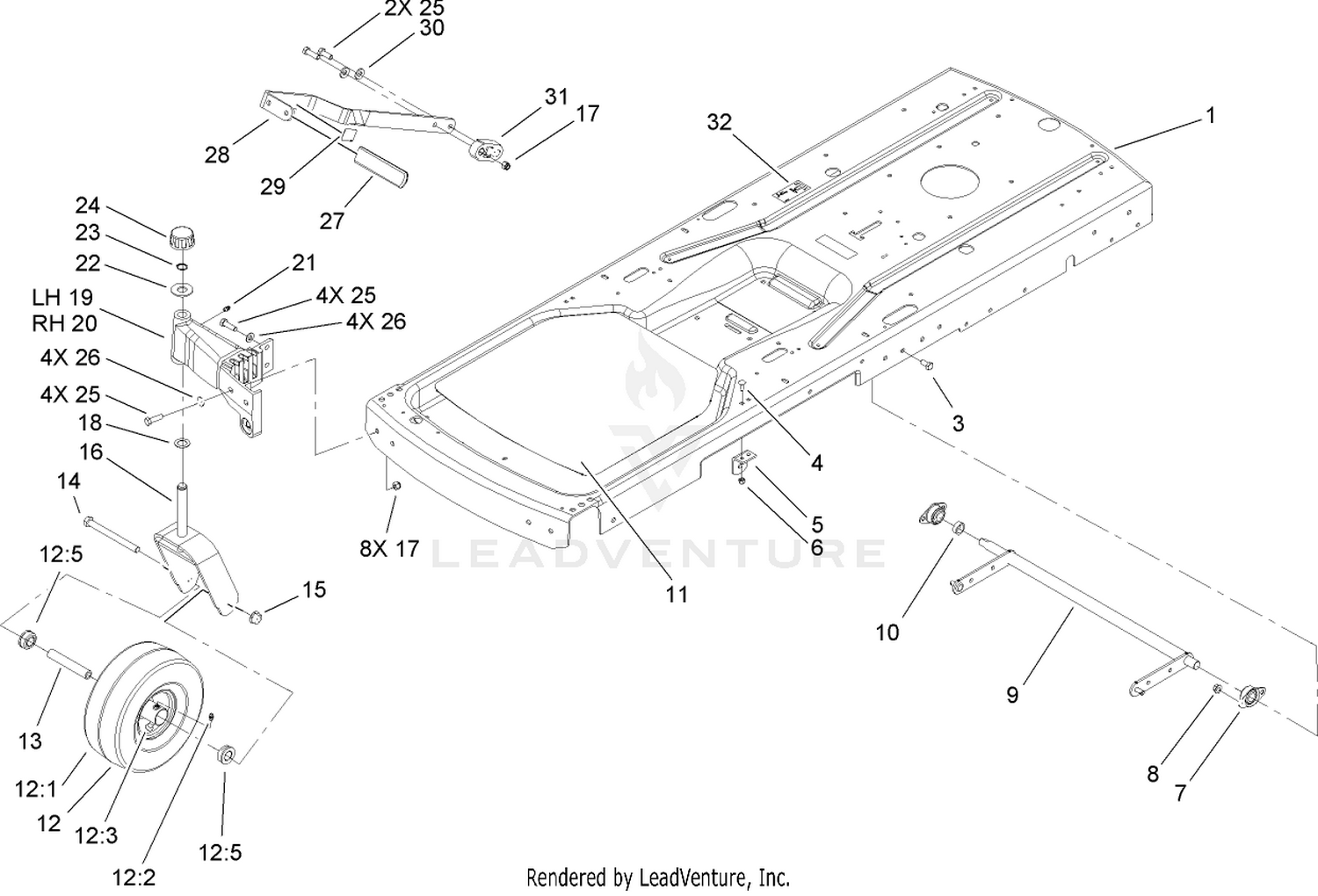

Frame Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-2325-01 | FRAME Price: $891.74 |
| 3 | 323-4 | SCREW-HH Price: $1.02 |
| 4 | 3229-1 | BOLT-CARR Price: $3.39 |
| 5 | 105-3439 | BRACKET-LIFT Price: $3.42 |
| 6 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 7 | 1-633102 | BEARING-FLANGE, SIDE Price: $17.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 9 | 105-3499-03 | LIFT ARM ASM Price: $126.28 |
| 10 | 106-2222 | DISCONTINUED Price: Call Us |
| 11 | 105-3460 | PAD-ANTISKID Price: $58.49 |
| 12 | 105-3471 | FRONT WHEEL AND TIRE ASM Price: $62.92 |
| 13 | 104-3667 | BUSHING-SPANNER Price: $12.64 |
| 14 | 325-22 | SCREW-HH Price: $4.26 |
| 15 | 32128-23 | NUT-HF Price: $1.51 |
| 16 | 110-6581-01 | CASTER FORK ASM Price: $66.80 |
| 17 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 18 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 19 | 105-6986-01 | CASTER-LH Price: $277.38 |
| 20 | 105-6985-01 | CASTER-RH Price: $277.38 |
| 21 | 302-5 | FITTING-GREASE Price: $0.59 |
| 22 | 28-2480 | WASHER-PLAIN Price: $3.99 |
| 23 | 32151-103 | RING-RETAINING, EXT Price: $2.09 |
| 24 | 61-9780 | CAP-HUB Price: $7.29 |
| 25 | 323-18 | SCREW-HH Price: $0.82 |
| 26 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 27 | 105-3450 | GRIP-LEVER, LIFT Price: $6.25 |
| 28 | 108-2317-03 | LEVER-LIFT Price: $39.28 |
| 29 | 106-8743 | DECAL-HOC Price: $1.45 |
| 30 | 98-5975 | WASHER-BELLEVILLE Price: $3.09 |
| 31 | 106-2211 | BLOCK-LIFT Price: $12.68 |
